The Drilling hose composed of an inner rubber protection layer,middle rubber layer,steel wire spiral layer and external rubber cover .It has broad applications,it used in oil fields ,well cementing,well repairing ,geological explorations,small drilling machine ,and water conveyance at coal excavations,it useful to carry slurry,water at environmental temperature ,and other fluids.
working temputer is from -40 to +100 c
it obey the standard :CB/T24145-2009 ,API SPEC 7K,SY5469
I am appreciated to hear from you if you are interested in my commodity and i will offer the best price under big orders.
| Level | Inside Diameter | Outside Diameter | Working Pressure | Proof Pressure | Weight | Min.Bend | |
| A | in | mm | mm | MPa(ps) | MPa(ps) | kg/m | mm |
| 1 1/2 | 38 | 51 | 11(1500) | 22(3000) | 2.19 | 560 | |
| 2 | 51 | 65 | 11(1500) | 22(3000) | 3.03 | 900 | |
| 2 1/2 | 64 | 78 | 11(1500) | 22(3000) | 3.95 | 1200 | |
| B | 1 1/2 | 38 | 52 | 14(2000) | 28(4000) | 2.39 | 560 |
| 2 | 51 | 66 | 14(2000) | 28(4000) | 3.25 | 900 | |
| 2 1/2 | 64 | 79 | 14(2000) | 28(4000) | 4.37 | 1200 | |
| 3 | 76 | 98 | 14(2000) | 28(4000) | 7.76 | 1200 | |
| 3 1/2 | 89 | 113 | 14(2000) | 28(4000) | 9.95 | 1300 | |
| 4 | 102 | 127 | 14(2000) | 28(4000) | 12.43 | 1400 | |
| 5 | 127 | 153 | 14(2000) | 28(4000) | 15.25 | 1500 | |
| 6 | 152 | 178 | 14(2000) | 28(4000) | 18.71 | 1600 | |
| C | 1 1/2 | 38 | 55 | 28(4000) | 56(8000) | 3.65 | 560 |
| 2 | 51 | 69 | 28(4000) | 56(8000) | 5.15 | 900 | |
| 2 1/2 | 64 | 88 | 28(4000) | 56{8000) | 7.86 | 1200 | |
| 3 | 76 | 105 | 28(4000) | 56(8000) | 13.12 | 1200 | |
| 3 1/2 | 89 | 121 | 28(4000) | 56(8000) | 16.79 | 1300 | |
| 4 | 102 | 137 | 28400O) | 56(8000) | 21.7 | 1400 | |
| 5 | 127 | 164 | 28<4000) | 56(8000) | 28.46 | 1500 | |
| 6 | 152 | 197 | 28(4000) | 56(8000) | 44.64 | 1600 | |
| D | 2 | 51 | 73 | 25(5000) | 70(10000) | 6.46 | 900 |
| 2 1/2 | 64 | 91 | 35(5000) | 70(10000) | 10.75 | 1200 | |
| 3 | 76 | 107 | 35(5000) | 70(10000) | 14.35 | 1200 | |
| 3 1/2 | 89 | 123 | 35(5000) | 70(10000) | 18.77 | 1300 | |
| 4 | 102 | 139 | 35(5000) | 70(10000) | 23.16 | 1400 | |
| 5 | 127 | 171 | 35(5000) | 70(10000) | 38 | 1500 | |
| 6 | 152 | 200 | 35(5000) | 70(10000) | 48.43 | 1600 | |

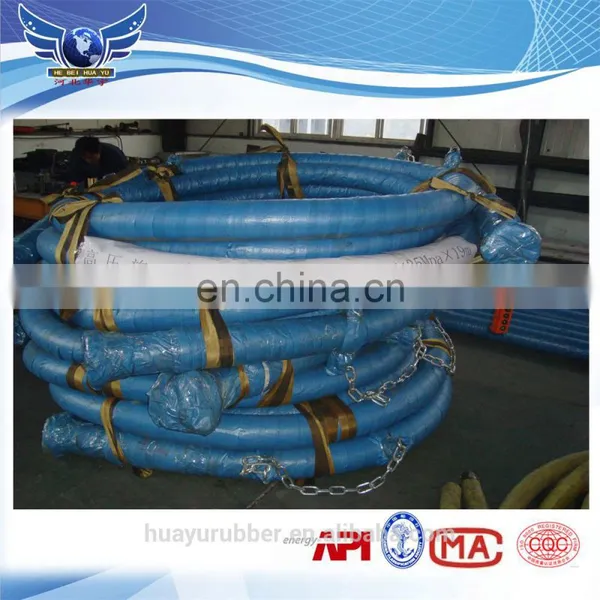

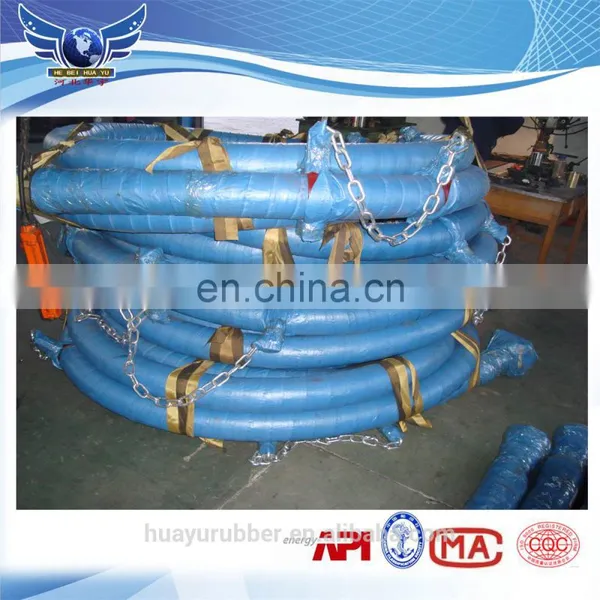

The view of factory
1.Good quality with competitive prices and fast delivery time.
2.Reliable and profacturing experience in the marker
3.Ten years manufacturing experienee in the marker
4.ISO certificate /Quality certificate
5.Output 30000 meters each month fast delivery time
