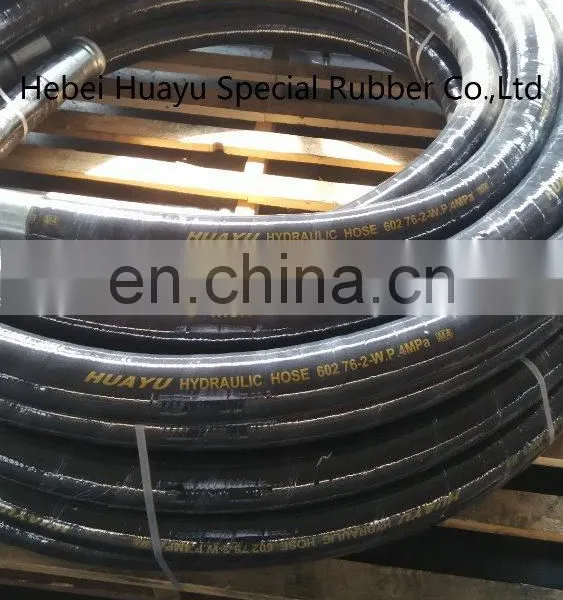

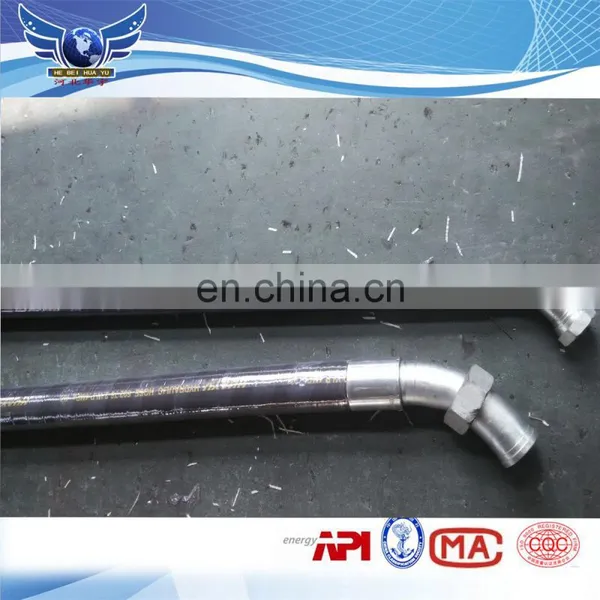

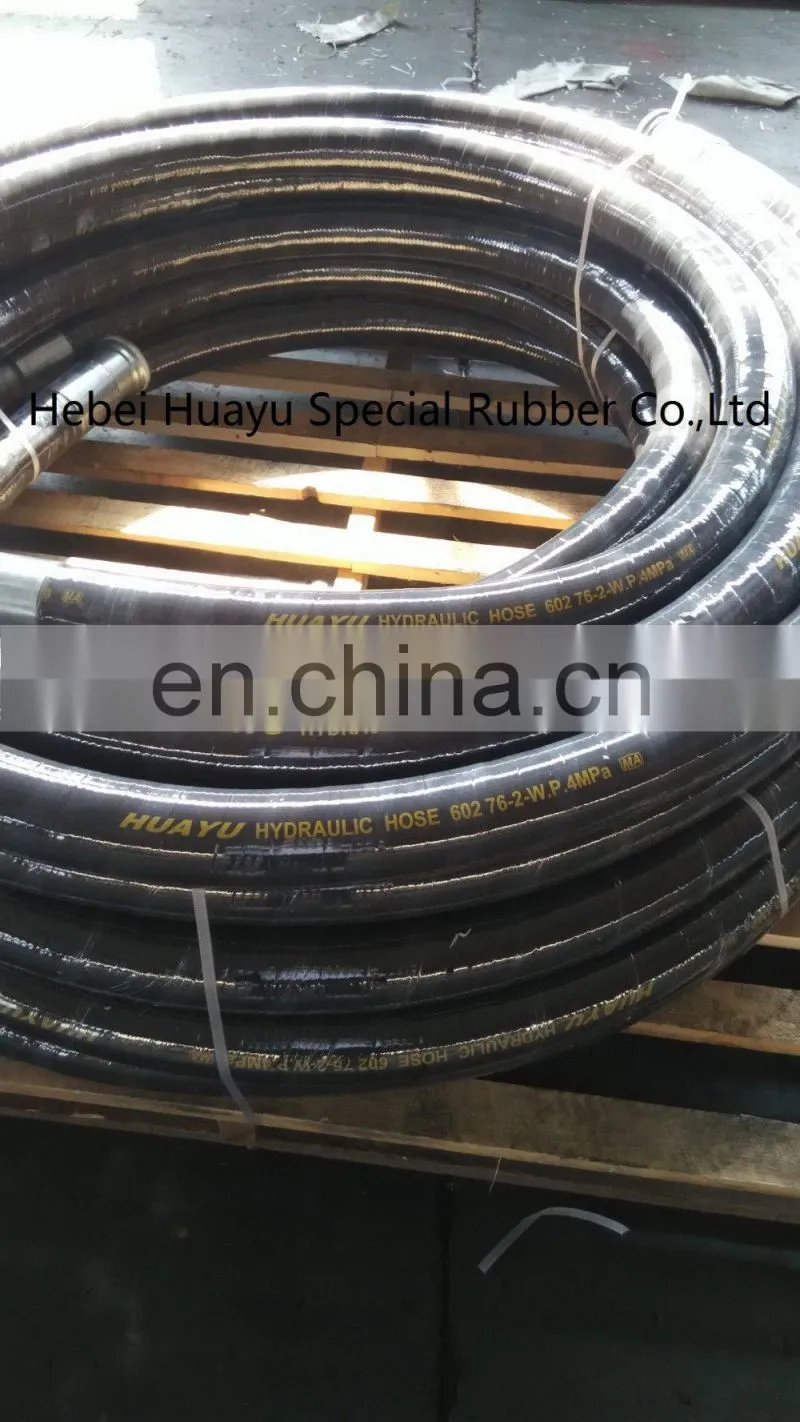

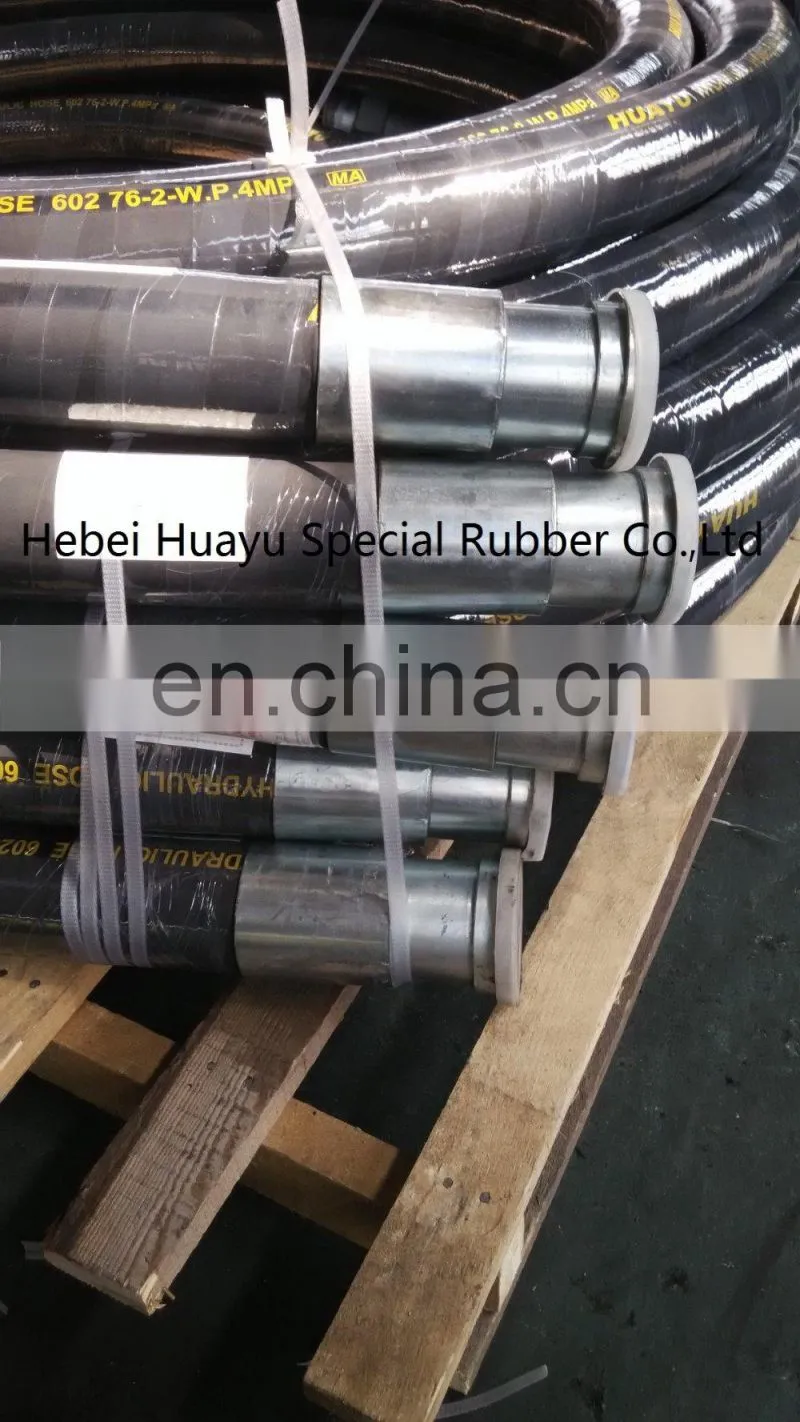

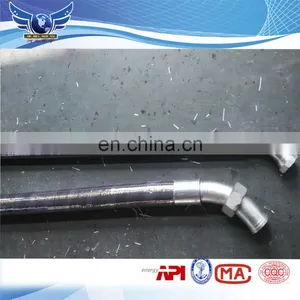

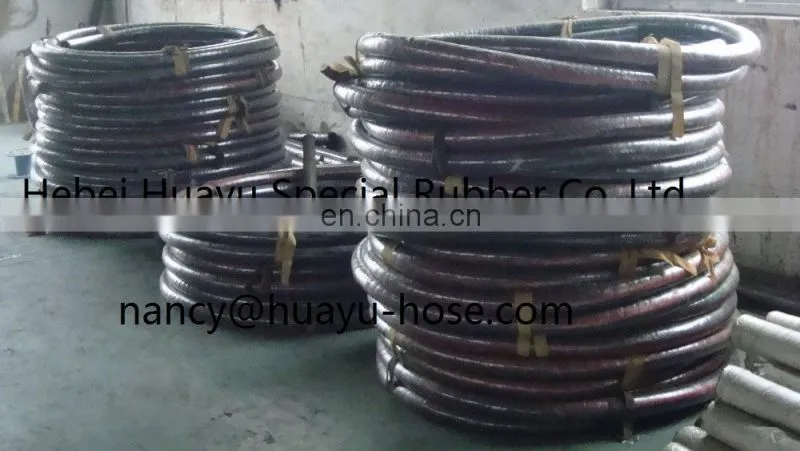

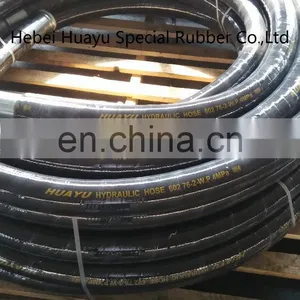

Manufacture 602 Hydraulic Hose
US$ 1 - 56
MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
HUAYU
Place of Origin:
Hebei, China
Model Number:
Hydraulic Hose
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin New Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Pressure Jack HoseUS$ 0.5 - 60MOQ: 100 Meters -
HOT TAR @ ASPHALT HOSEUS$ 5 - 100MOQ: 50 Meters
-
Hydraulic HoseUS$ 4.5 - 5MOQ: 100 Meters
-
Certificate CE Braided Reinforced Flexible Pvc Air Hydraulic HoseUS$ 1 - 100MOQ: 100 Meters
-
High Quality Full Range of Hydraulic Rubber Hose & Fitting in ChinaUS$ 1 - 100MOQ: 100 Meters
Brand Name
HUAYU
Place of Origin
Hebei, China
Model Number
Hydraulic Hose
Reinforcement: two high tensile steel wire layers
Cover Compound:Abrasion and weather resistant synthetic rubber
Applications: It is suitable to carry hydraulic fluid,such as hydraulic oil and weather resistant synthetic rubber cover.
Working temperature: -40 ℃ up to +120 ℃
| size ldχlsyuer No |
Inside Diametere mm |
Tolerance mm |
Outside Diametere mm |
Tolerance
mm |
working pressure Mpa |
proof pressure Mpa |
Burst pressure Mpa |
Min Bend Radius mm |
| 10χ2sp | 10 | 0.5 | 21 | 0.8 | 60 | 120 | 180 | 160 |
| 13χ2sp | 13 | 0.5 | 25 | 1.0 | 46 | 92 | 130 | 210 |
| 16χ2sp | 16 | 0.5 | 26.5 | 1.0 | 35 | 70 | 105 | 260 |
| 19χ2sp | 19 | 0.8 | 31 | 1.0 | 30 | 45 | 90 | 280 |
| 22χ2sp | 22 | 0.8 | 35 | 1.0 | 28 | 42 | 84 | 320 |
| 25χ2sp | 25 | 0.8 | 38 | 1.5 | 21 | 42 | 63 | 360 |
| 32χ2sp | 32 | 0.8 | 46 | 1.5 | 20 | 40 | 60 | 460 |
| 38χ2sp | 38 | 0.8 | 51 | 1.5 | 18 | 36 | 54 | 580 |
| 51χ2sp | 51 | 0.8 | 65 | 1.5 | 15 | 30 | 45 | 720 |
| 64χ2sp | 64 | 1.0 | 78 | 1.5 | 15 | 30 | 45 | 790 |
| 76χ2sp | 76 | 1.0 | 99 | 1.5 | 15 | 30 | 45 | 920 |
| 102χ2sp | 102 | 2.0 | 130 | 2.0 | 15 | 30 | 45 | 1200 |
| 127χ2sp | 127 | 2.0 | 152 | 2.0 | 8 | 16 | 45 | 1500 |
| 152χ2sp | 152 | 3.0 | 180 | 4.0 | 8 | 16 | 24 | 2280 |
