Help CenterMotion Compensator Hose Used to Reduce Bad Effect of the Relative Motion
Related Products
-
Reasonable Price High Quality Rotary Drilling HoseUS$ 38 - 38MOQ: 1 Piece -
Inflatable PackersUS$ 1 - 200MOQ: 1 Piece
-
China Manufacture of D25-4 Injection PackerUS$ 1 - 300MOQ: 1 Piece
-
Inflatable Packers Which Can Use in Gas Suction and DischargeUS$ 1 - 300MOQ: 1 Piece
-
Coal Seam Water Pressure Inflatable Packer Which is Applying to Coal Mine and Clear Dust.US$ 1 - 200MOQ: 1 Piece

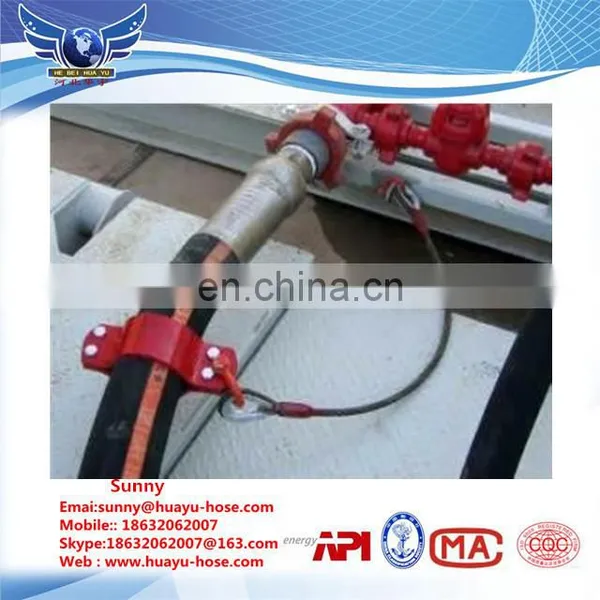

Motion compensator is used to reduce the bad influence of the two connected objects relative motion. Motion compensator hose is often installed between standpipe and swivel or between pump and standpipe. It is used to give pressure to the compensator to ensure that the pressure of drilling string is constant. In other words, it is used to stabilize the rotary drilling rig and the pump equipment. The structure of motion compensator hose is the same as decoking hose and cement hose. It is composed of three parts: tube, reinforcement and cover. Tube is made from synthetic rubber that is resistant to chemical fluids, oil and abrasion. Reinforcement is made from four alternating layers of high tensile spiral wire. The cover is made from synthetic rubber that is resistant to ozone, weather, abrasion and corrosion.
The details of motion compensator hose:

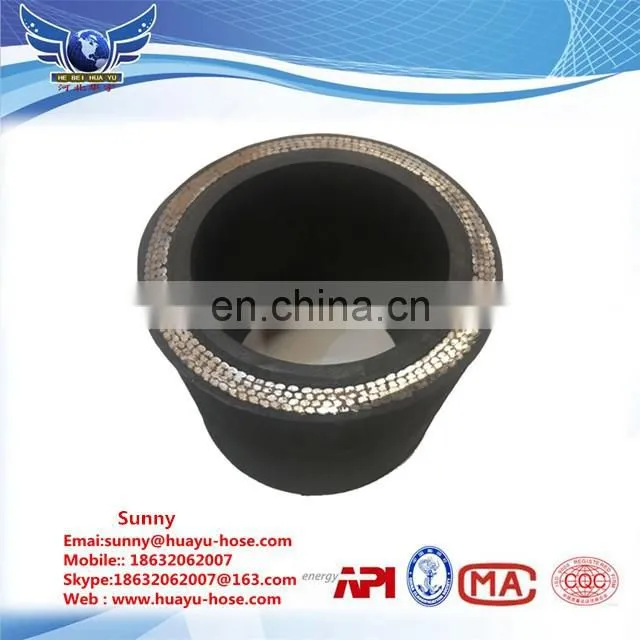

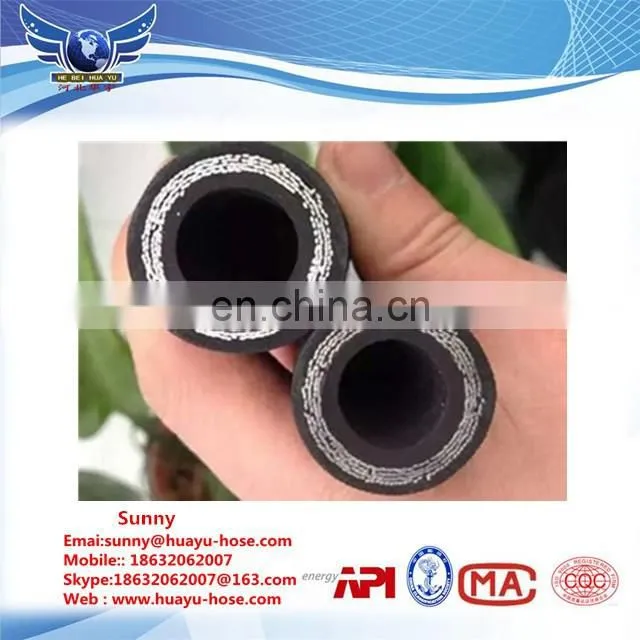

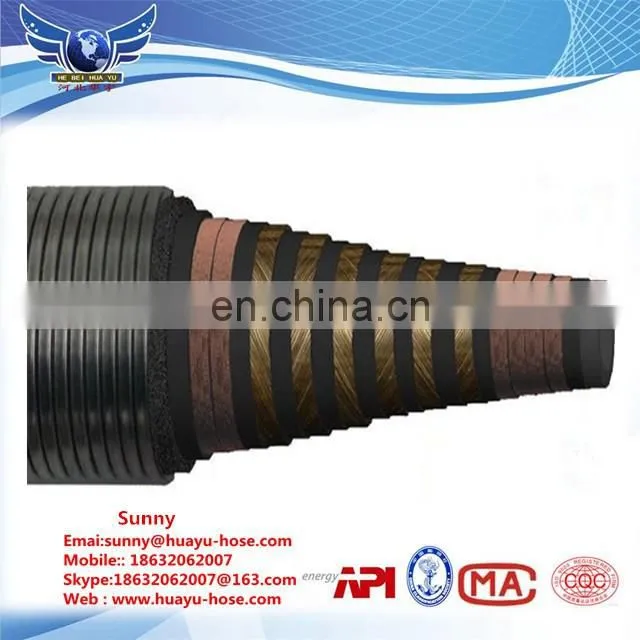

Structure: motion compensator hose is composed of three parts: tube, reinforcement and cover.
Tube: synthetic rubber that is resistant to most chemical fluids, oil and abrasion, principally nitrile rubber.
Reinforcement: four alternating layers of high tensile spiral wire.
Cover: synthetic rubber that is resistant to ozone, weather, abrasion and corrosion, mainly chloroprene rubber.
Inside diameter: 2" - 3" (50.8mm - 76.2mm).
Outside diameter: 2.7" - 3.7" (68.0mm - 94.6mm).
Working pressure: 21MPa (3040psi).
Testing pressure: 42MPa (6090psi).
Burst pressure: 84MPa (12180psi).
We will manufacture the products try our best after we receive the deposit. And we will deliver the products to our customers as soon as possible after we finish producing the products. What's more, our products are well-packaged before they are delivered to customers to ensure that the products are undamaged in the transportation.
We have professional staff giving you specialized instructions according to your questions. And we supply free drilling hose knowledge, including the matters need to attention, correct using method, the specification of drilling hose, how to choose drilling hose correctly and so on.

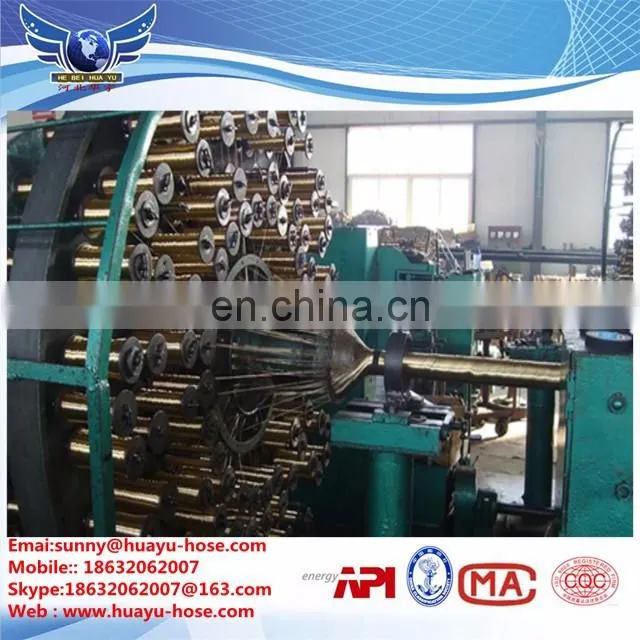

Factory
Factory
Our Factory
Factory
Our Factory
Factory
Our Factory
Packing Details : wooden package, steel wire package or as your special requirement
Delivery Details :About 15 days after advance payment
Our drilling hose is manufactured with integral connectors and the connectors are resistant to pull-off, which can avoid the connectors falling off and hurting the workers in the process of pressure test. And this feature improves the pressure resistance and safety performance of drilling hose greatly..
We also have the follow advantage :
1.Less MOQ: It can meet your promotional business very well.
2.OEM Accepted : We can produce any your design.
3.Good Service : We treat clients as friend.
4.Good Quality : We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
