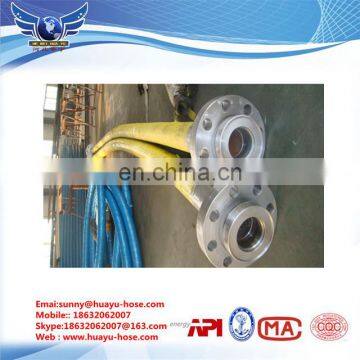

Oilfield Service Grade C 5000psi industrial rubber hose

RECOMMENDED FOR: Transfer of water, petroleum based fluids, dilute acids, chemicals and abrasive slurries used in oil and gas well stimulation and fracking. Transfer of refined fuels (commercial gasoline, diesel fuel) oils and other petroleum products. Transfer hoses are designed for intermittent contact with refined fuels and must be drained after use. Ideal for offshore/onshore dock hose transfer applications involving discharge service for diesel oils and other similar petroleum products where an extremely lightweight, flexible hose with a high rated working pressure and a small minimum bend radius is required. For bio-diesel and other alternative fuel applications, see Fuel Master™ XTreme™. Petroleum transfer hoses may be used with all grades of bio-diesel only if the exposure is intermittent and the hose is drained between uses.

CAUTION: Do not convey fuels over 120°F (+49°C).

TEMPERATURE: -40°F to +180°F (-40°C to +82°C) continuous service.

Tube: Type C (Nitrile). Black.

Reinforcement: Synthetic, high tensile textile with static wire.

Cover: Type C2 (Carboxylated Nitrile). Black with red stripe, Yellow Carboxylated Nitrile (Type C4) Wear Indicator Layer.

Design Factor: 4:1

COUPLINGS: 71 (permanent crimp or swage). Reference the Hose Coupling Section.
STANDARDS: Tube: ARPM (Class A) High oil resistance.

Hebei Huayu Special Rubber Co.,Ltd. is located in the west of WenCheng Industrial Zone, Jing County, Hengshui City, Hebei, China. The firm possesses the most advantageous geographic location with convenient traffic conditions, which is quite close to the Beijing-Fuzhou Expressway and Beijing-Shanghai Railway. The company is an integrated and innovative enterprise combining R&D, production and sales of various rubber series products. The company covers an area of 26000 square meters and construction area of 6000 square meters, the fixed asset is 50 million Yuan with 85 working staffs,the factory has a fully complete set of advanced analysis and detecting devices, such as winding machine, braiding machine, banbury mixer,vulcanizing machine with totally 60 sets of equipment.

Fast delivery.
We will manufacture the products try our best after we receive the deposit. And we will deliver the products to our customers as soon as possible after we finish producing the products. What's more, our products are well-packaged before they are delivered to customers to ensure that the products are undamaged in the transportation.

Considerate after-sale service.
We have professional staff giving you specialized instructions according to your questions. And we supply free drilling hose knowledge, including the matters need to attention, correct using method, the specification of drilling hose, how to choose drilling hose correctly and so on.
