CE Approved CNC Metal Processing Machine Without Heat Affected Zone

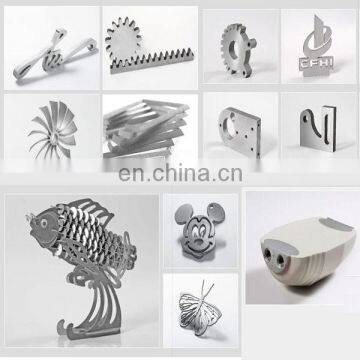

CNC waterjet metal processing machine can cut almost any material. Pure water jets can quickly and accurately cut soft materials such as rubber, foam and other gasket material. Abrasive water jets can cut almost any other material over a very wide range of thichness:

 There are four parts in our waterjet metal processing machine. They are intensifier pump; cutting table; CNC controller and Auto abrasive feeder.


A waterjet metal processing machine is made up of 4 key components, that is Intensifier pump; Cutting table; CNC controller; Auto abrasive feeder
Intensifier    Pump	Max. water pressure	410Mpa
	Continuous working pressure	360-380Mpa
	Max. oil pressure	20Mpa
	Motor power	37KW/50HP
	Cutting water inlet pressure	0.3Mpa
	Cooling water inlet pressure	0.3Mpa
	Power supply	380V/50HZ/3PH
	Max. flow rate	3.7L/Min
	Oil tank volum	30Gal.(114L)
Cutting Table	Structural style	Cantilever style
	Cutting area	2000x1000x150mm
	Max. moving speed for X/Y-axis	6000mm/min
	Max. moving speed for Z-axis	1000mm/min
	Load bearing	500kg/ Squre meter
	Control accuracy	0.01mm
	Cutting accuracy	0.1mm
	Power supply	220V
	Way of drive	AC Servo
	X/Y-axis structure	Aluminum structure
Cutting Head	Mode	3-axis
	Max. orifice diameter	0.33mm
	Max. nozzle diameter	1.02mm
	Z-axis step motor	0.9N.M
CNC Controller	15 inch LCD monitor
	Support DXF and NC code file
	Software: Windows XP
	Resistance of the shoch and electro-magnetic
	The key function
	Forward & backward processing function		Even pace control function
	Small arcs speed auto processing function		Circle processing function
	Partial and smooth processing modes
Abrasive Feeder	Max. inlet air pressure	0.6Mpa
	Min. inlet air flow	0.028m3/min
	Abrasive capacity	225KG
	Features
	Air valve to prevent jams and breakages	Self sealing
	Auto control with CNC auxiliary function	Slightly adjust the flow

CNC waterjet metal processing machine by waterjet have got the consistant high praise from the customer at home and abroad during the 14 years development, there are many successful stories related to APW cnc water jet cutter, we are looking forward to seeing you in our picture wall.

1. What are the benefits of purchasing a waterjet metal processing machine comparing CNC plasma or a laser ?
Versatility
Waterjet metal processing machine can cut almost anything – from metal to stone to glass to composites to ceramic.
Laser and plasma cut with heat, and so can only cut materials that have the right thermal properties. Metal is almost always the target material in industry for these heat-based processes. And mild steel is almost always the metal that is cut by them. In addition, plasma can only cut things that are electrically conductive. To optimize laser and plasma cutting, change to gasses is required. No change to waterjet metal processing machine parameters, except speed, is usually required for any material.
Thickness
Waterjet metal processing machine can cut very thin and up to 150mm (sometimes more) of any metal, glass, stone, composite, etc.
Laser cuts very thin and up to 20mm.
Plasma cuts from about 25mm up to 30mm.
Edge finish
Nothing cut by a plasma or laser will be as high of quality of an edge as a waterjet metal processing machine. We leave behind a smooth edge. No heat affected zones or mechanical stresses are introduced. The plasma and laser cut with heat (we cut with supersonic erosion). Plasma and laser therefore will leave behind a heat affected zones, mechanical stresses, and especially with plasma, dross 'drips' on the edge.
Please contact us for more information of our water jet metal processing machine.
2. What kind of material does your waterjet metal processing machine can cut?
There are plenty materials our waterjet metal processing machine can cut, such as metal stone glass foam plastic rubber, ect.
4-axis was professionally designed for mable pattern and medallion.
5-axis was professionally designed for 3D materials.

3. What's your waterjet metal processing machine's max.cutting thickness?
The max.cutting thickness of our waterjet metal processing machine depends on the materials you cut .
Generally speaking, the thickness of our waterjet metal processing machine can be up to 150mm, virtually Z constraint is the only limit to thickness.

 4. How much training is required to learn how to run a waterjet system?
An operator with no experience should be able to learn how to operate and maintain a waterjet cutting machine with as little as one weel of training. New CAD/CAM nesting software offered by APW make it possible for an operator with no programming experience to program the machine with only a few hours of training.

More information about APW waterjet processing machine price, pls contact us at hotline: +86-024-24699053
