Automatic Insulating Glass Machine With Robotic Sealing Line 2.5X3.3m Insulating Glass Machine With Sealing Robotic

Automatic Insulating Glass Machine With Robotic Sealing Line 2.5X3.3m Insulating Glass Machine With Sealing Robotic photo-1
Automatic Insulating Glass Machine With Robotic Sealing Line 2.5X3.3m Insulating Glass Machine With Sealing Robotic photo-2
Automatic Insulating Glass Machine With Robotic Sealing Line 2.5X3.3m Insulating Glass Machine With Sealing Robotic photo-3
Automatic Insulating Glass Machine With Robotic Sealing Line 2.5X3.3m Insulating Glass Machine With Sealing Robotic photo-4
Automatic Insulating Glass Machine With Robotic Sealing Line 2.5X3.3m Insulating Glass Machine With Sealing Robotic photo-5
Automatic Insulating Glass Machine With Robotic Sealing Line 2.5X3.3m Insulating Glass Machine With Sealing Robotic photo-6
Automatic Insulating Glass Machine With Robotic Sealing Line 2.5X3.3m Insulating Glass Machine With Sealing Robotic photo-7
US$ 9,999 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SUNNY
Place of Origin:
Shandong, China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SUNNY
Place of Origin Shandong, China
Certification CE
Warranty 18 Months
Weight 3500kg
Dimension(L*W*H) 2800*1350*1000MM
Production Capacity 300-500 Pcs/day
Condition New
Voltage Requirements
Power(W) 25kw
Machine Type Glass Washing and Drying Machine

Automatic Insulating glass machine with Robotic sealing machine line

Insulating glass production line machine

IG line with robotic sealing

Double glazing line



1. Instruction:

a. Insulating glass production line include :  composed of feeding part, glass washing and drying part, lamp inspection part, glass conveyor part, aluminum frame Installment part, flat (roller) press part, tilting table.

     Insulating glass sealing robotic include: Feeding part, automatic seal part and Output part

b. soft low-e brush installed can process low-e Double glass.

c. It can make triple insulating glass and shaped insulating glass.

d. Washing and drying part with full stainless steel #304

e. Flat press part with PLC control and open Max. 400mm

e.. Man-machine interface, easy to operate



More machines specification, warmly welcome to inquiry, thanks so much!

Contact person: Ms. Lucy    wechat or whatsapp or Mob: 0086 151 6904 2082

Skype: sunny200704



2. Technical Data:

Model

Max.Glass Size

Min.Glass Size

Glass Thickness

Power

Weight

Dimension

LBZ2500

2500*3300mm

300*450mm

3-50mm

25Kw

8000Kg

22000*2000*3380mm

LBZ2200

2200*3300mm

300*450mm

3-50mm

25Kw

6500Kg

20000*2000*3000mm

LBZ2000

2000*3000mm

300*450mm

3-50mm

20Kw

6000Kg

14000*1680*2800mm

LBZ1800

1800*2500mm

300*450mm

3-40mm

20Kw

5000Kg

14000*1680*2600mm

LBZ1800G

1800*2500mm

300*450mm

3-40mm

12.8Kw

4800Kg

13500*1680*2600mm

LBZ1600

1600*2000mm

300*450mm

3-40mm

13.59Kw

4000Kg

12000*1250*2600mm

we can make the line according to you size requirements.



3. Pictures for your reference

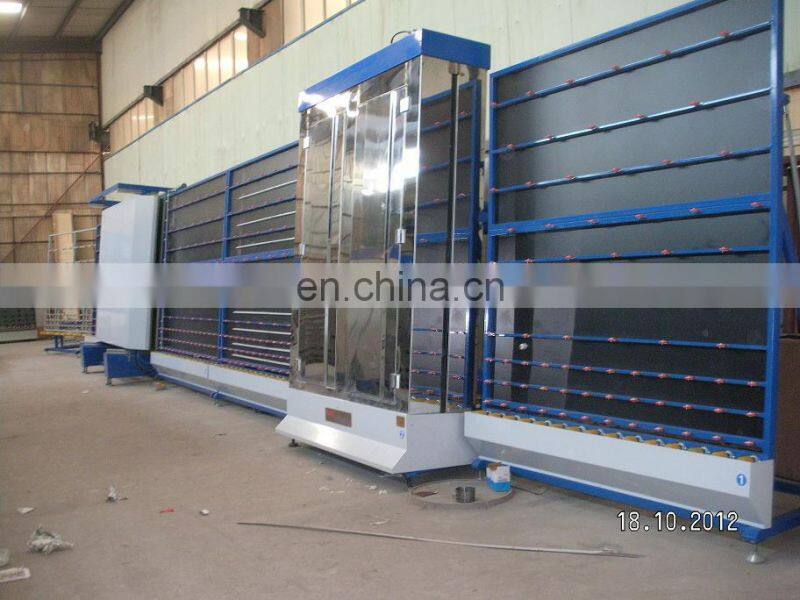

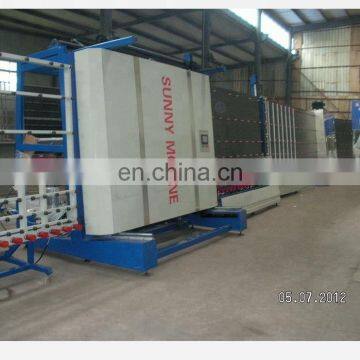

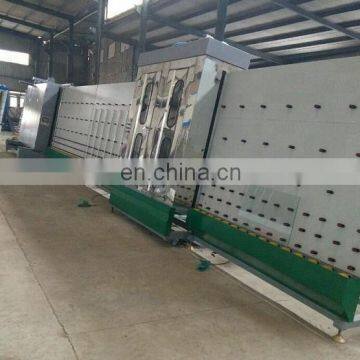

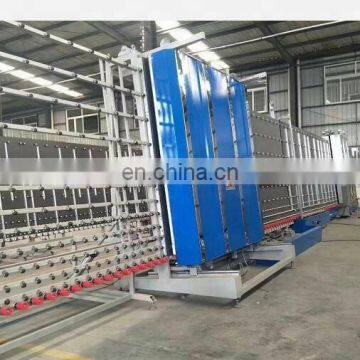

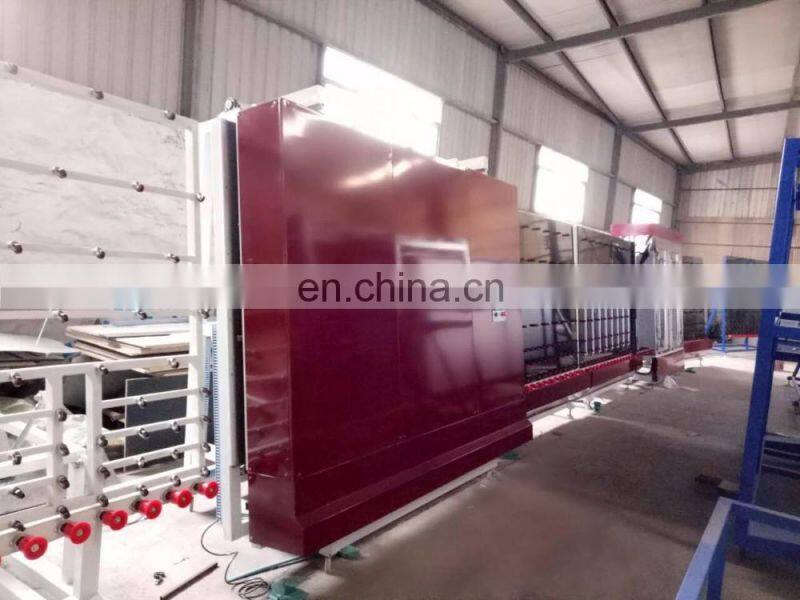

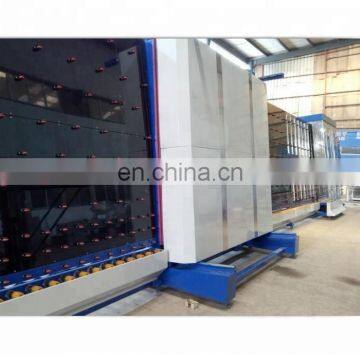

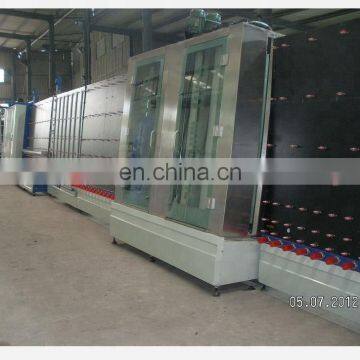

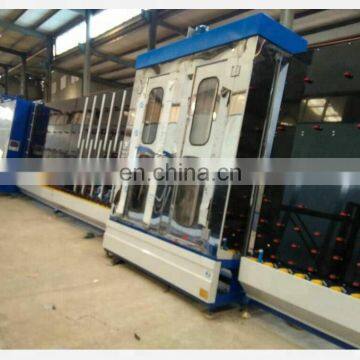

    2500X3300MM Insulating glass machine production line insulating glass machine

    Automatic insulating glass machine with Robotic sealing line 2.5X3.3m Insulating glass machine with sealing robotic

1800x2440mm insulating glass  machine production line machine insulating glass machine

Automatic insulating glass machine with Robotic sealing line 2.5X3.3m Insulating glass machine with sealing robotic

1600X2000MM insulating glass production line machine insulating glass machine

Automatic insulating glass machine with Robotic sealing line 2.5X3.3m Insulating glass machine with sealing robotic

2200x3000mm insulating glass production line machine  insulating glass machineAutomatic insulating glass machine with Robotic sealing line 2.5X3.3m Insulating glass machine with sealing robotic

2000x3000mm insulating glass production line machine  insulating glass machine

Automatic insulating glass machine with Robotic sealing line 2.5X3.3m Insulating glass machine with sealing robotic

Automatic Insulating glass production line with sealing robotic insulating glass machine

Automatic insulating glass machine with Robotic sealing line 2.5X3.3m Insulating glass machine with sealing robotic



We can send our engineer to customer factory for Installment and test and train persons.

More specification, warmly welcome to inquiry, thanks so much!

Contact person: Ms. Lucy

wechat or whatsapp or Mob: 0086 151 6904 2082

Skype: sunny200704
