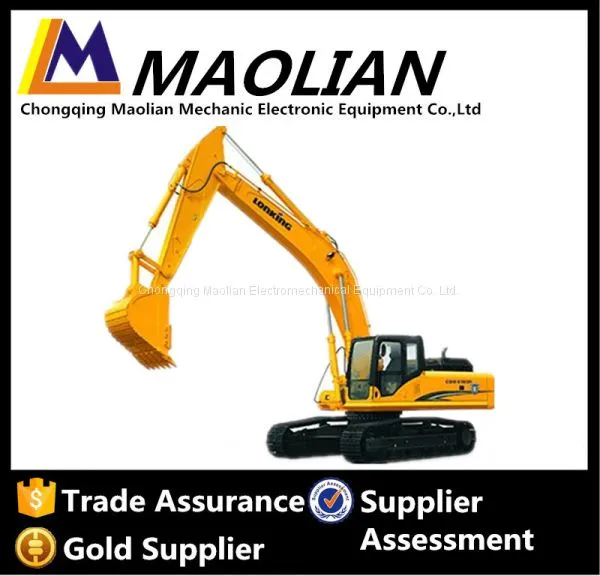

Cheap New Type 34 Ton Crawler Hydraulic Digger Wholesale

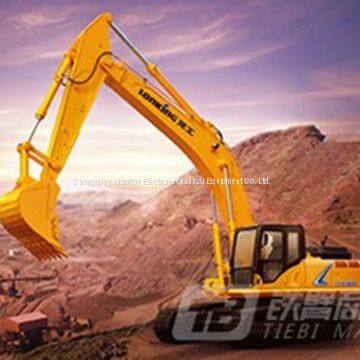

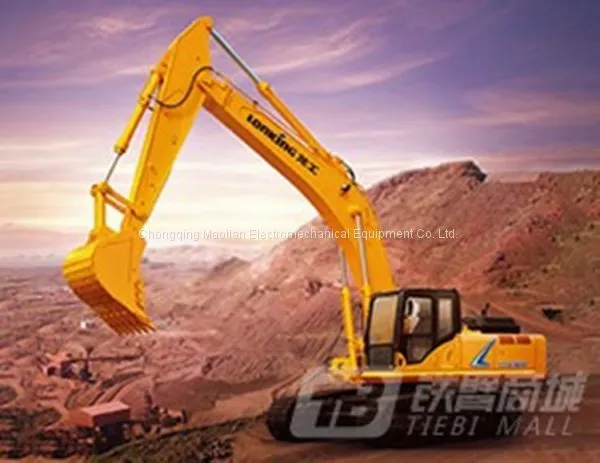

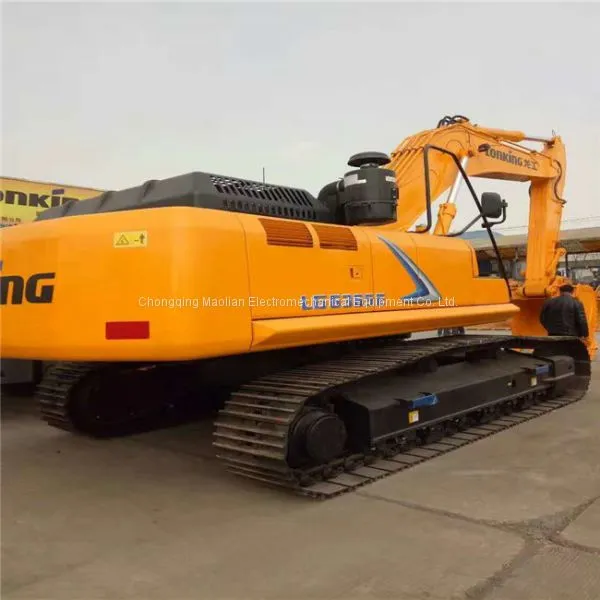

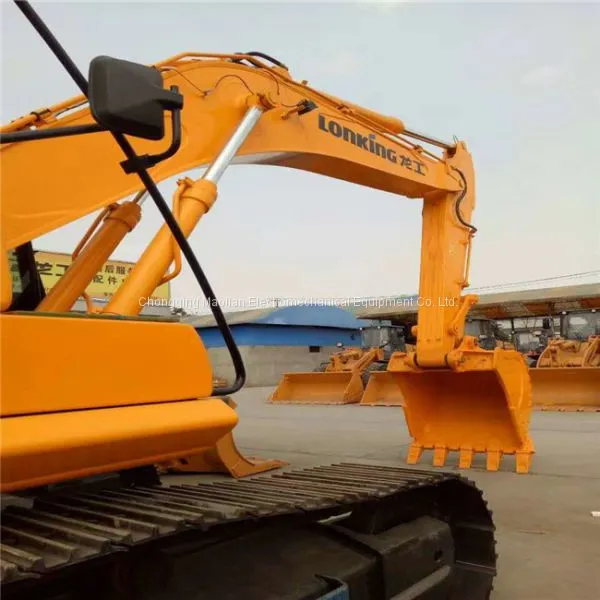

Construction Machinery 6365H features:
6365H offers a variety of working device combinations and adapts to different working environment flexibly.
With standard working device:Action agile, strong digging force. It’s widely used in mining, road construction, national defense construction, municipal construction, hydropowerengineering etc.
With shortened type working device: Super large bucket capacity. Completingefficiencyof loading task and excavating loose material.
With lengthened type working device: Maximum digging radius is more than 20m. Long distance and depth of working space make channel excavating and cleaning easily. Widely used in water project.
Cummins engine
The original Cummins high power, high torque and turbo-charging 6-cylinder direct injection engine6-cylinder 4-stroke direct injection turbocharged engine guarantees the high reliability and durability. The charge air cooling air-air inter cooler system over the compressed air can enhance the oxygen content upon combustion markedly. The center fuel injection under high injection pressure allows the uniform atomizing of fuel, guarantees the normal combustion and reduces the exhaust gas emission. It adopts the large muffler and new cooling fan to eliminate the engine noise.

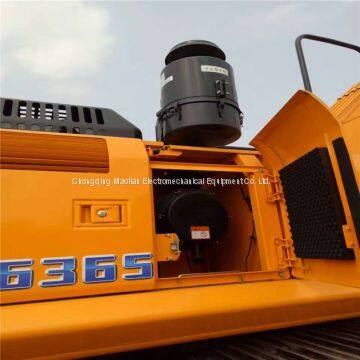

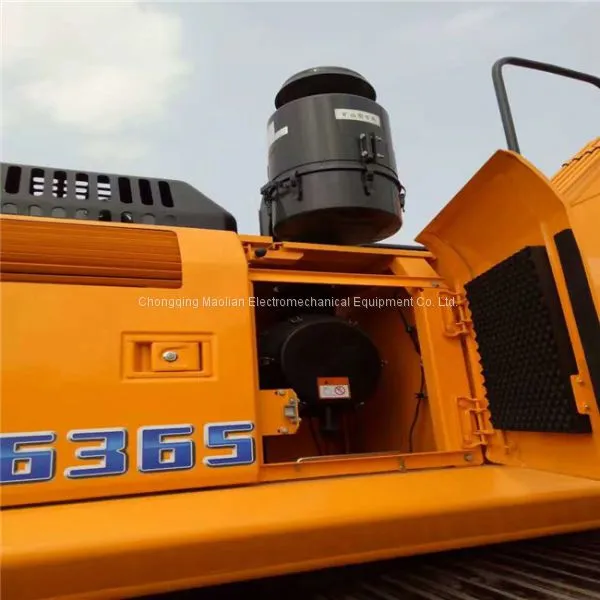

Filtering System
The high efficiency dual element air filter ensures the quality of engine air intake. In addition, the oil-bath type air prefilter can carry out the rough filtration over the air intake to enable the operation under the high dust concentration working conditions and prolong the maintenance interval of the air filter. The oil-water separator and two-stage fuel filter will filtrate the fuel many times to ensure the quality of fuel fed to the engine.
Specification
| Engine | Model | Cummins6C8.3 |
| Rated power | 197kW (265hp) /1950 rpm | |
| Max. torque | 1219/1300 | |
| Bore× Stroke | 114mm × 135mm | |
| Displacement | 8.3 L | |
| Comment | Maintain the rated power at 2300m elevation. | |
| Operating weight | Summary | Operating weight:34000kg The operating weight includes the weight of 6470mm standard boom, 2900mm standard arm,1.6m3 standard bucket,600 mm track,lubricating oil, coolant, the full diesel oil tank and the rest standard configuration units. |
| Ground pressure | 68 kPa (Lengthened type:70kPa) | |
| Fluid capacity | Fuel tank | 580 L |
| Cooling system | 33 L | |
| Engine oil | 35 L | |
| Swing drive unit | 7.2 L | |
| Traveling gear | 2×11 L | |
| Hydraulic oil tank | 530 L | |
| Swing mechanism | Summary | High torque plunger motor and 2-stage planetary reducer drive.Brake inside loading motor is applied by spring and released by hydraulic unit. The automatic braking is available when the swing control lever is in neutral position. |
| Swing speed | 9.5 rpm (Lengthened type:7.5 rpm) | |
| Travel drive | Summary | The integrated 2-speed plunger hydraulic motor and reducer drive, motor and hydraulic pipeline are arranged inside the track frame to prevent the damage caused by the rugged road surface; The motor inside is provided with the service brake and shock absorption valve to ensure the smooth running and stop and the reliable braking. |
| Taveling speed | 3.25 - 5.43 km/h | |
| Gradeability | 35°(70%) | |
| MaximumTraction | 298kN | |
| Traveling mechanism | Standard track shoe width | 600 mm |
| No. of track shoes | 48 (each side) | |
| No. of carrierrollers | 2 (each side) | |
| No. of track rollers | 8 (each side) | |
| Hydraulic system | Main pump | Duplex axial variable plunger pump |
| Pilot pump | Gear pump (integrated in main pump) | |
| Max. flow of system | 2×340 L/min | |
| Max. pressure of equipment | 34.3 MPa | |
| Max. pilot pressure | 3.9 MPa | |
| Operating equipment | Each machine action is under the pilot control. The right lever controls the motion of boom and bucket while the left lever controls the arm motion and upper structure swing. The foot pilot valve is provided with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear shift adopts the solenoid switch control. |
|
| Electrical system | System voltage:24 V Battery:12 V,120 A×2 | |

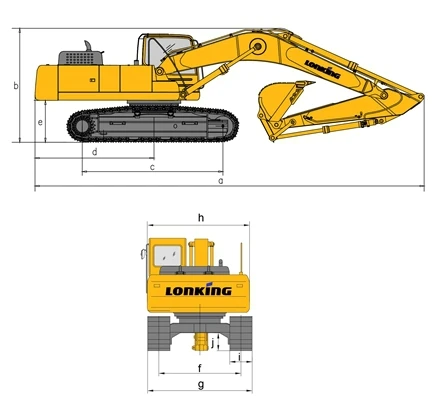

Transport Size
The following sizes approximate to that of the equipment of standard configuration.
