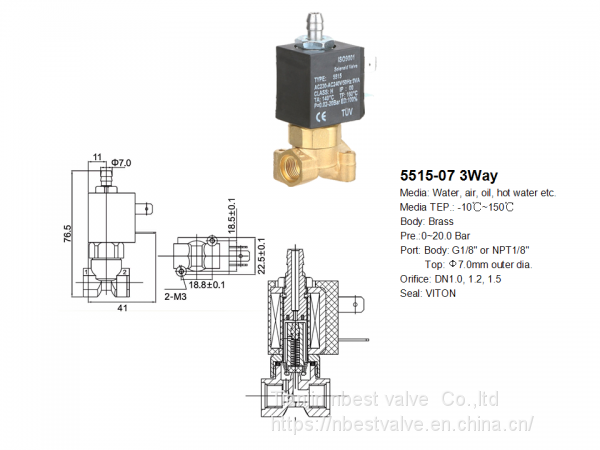

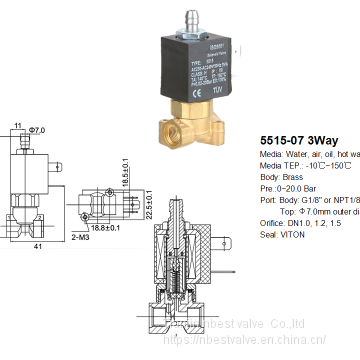

3 Way VITON Seal Direct Acting Coffee Machine and Appliance Brass Solenoid Valve

One.Product data:

3 way VITON seal Direct acting coffee machine and appliance brass solenoid valve

characteristic:   1.Direct acting miniture construction at low power consumption ;

                               2.with TUV certificate for household appliance use like coffee machine ,electrical iron ,steam cleaner,

                               3.Applied to low pressure system ,open from 0 bar.

Medium :               Air ,water ,steam ,oil ,etc

Temperature :     NBR Seal :-10Fto 80

                                VITON Seal: -10Fto 150

Pressure:             0MPa~2.0MPa

Port Size :             1/8'' and others

Port Thread:         BSPP,BSPT ,NPT,Flange

Orifice(mm) :       15,20,25,32,40,50,

Voltage:                 DC-12V,24V

                                AC-24V,120V,240V/60Hz;110v,220v/50Hz

tolerance:             +/-10%

coils:                      SA11B,9VA(AC),8W(DC), IP65,100%ED

Material:                Body -Brass

                                seal-NBR,EPDM,or VITON

                                Armature Tube -Stainless steel 304

                                Plunger-stainless steel 430 F

                                stop-stainless steel 430F

                                Springs-ss304

Two related product:

Three.Company information:

Three.Company profile

Tianjin Nbestvalve Co., Ltd. was established in 2002, headquartered in No.21,No.1 Building, Ronghui Business Zone, Zhongguancun technology Park, Binhai New District, Tianjin, China. With the rapid development of the most dynamic Chinese Bohai Economic Rim, Our company, production, sales and manufacturing test capabilities, with independent import and export rights, is a science, industry and trade as one of the group enterprise.

Four.Aplication Area

a. Domestic sewage treatment.

b. industrial wastewater treatment.

c. industrial irrigation treatment.

Five.Packing and Freight

Six.FAQ

Q: Are you trading company or manufacture?

A: We are factory located in Tianjin, China.

Q: What's your product range?

A: We specialize in product butterfly valves,solenoid valve, gate valves, check valves, Y type strainer, water controlling valves,motorized valves,pneumatic valves,hydraulic valves and other pipe accessories.

Q: What's execution standard?

A: ISO/ANSI/DIN/JIS/EN/GOST standard.

Q: What's your strong product?

A: Concentric butterfly valves, grooved butterfly valves, dual plate check valves.

Q: Do you provide sample? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.

Q: How long is your delivery time?

A: Generally it is 7 days if the good are in stock, or it is 20 days if the goods are not in stock, it is according to the quantity.

Q: What is your terms of payments?

A: Payment ≤10000 USD, 100% in advance. Payment ≥10000USD, 30% T/T or other ways in advance, balance before shipment.
