One.Product data:

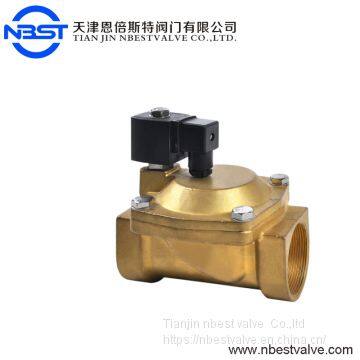

N07 Brass Pilot operated diaphragm AC-24V/120V/110V/220V/50HZ solenoid valve
One Product details:
| Characteristic | 1)Pilot operated diaphragm construction with less power consumption. 3)Lifespan can be at 1million cycles |
| Medium | Air,water,steam,oil,etc. |
| Temperature | NBR: -10°C to 80 °C EPDM: -10°C to 120 °C VITON:-10°C to 150 °C |
| Pressure | 0.3-1.6Mpa |
| Port size | 3/8'-2' |
| Port thread | G,NPT |
| Orifice | 12-50mm |
| Voltage | DC-12V,24V AC-24V,120V,110V,220V/50HZ |
| Tolerance | ±10% |
| Coil | S21B,24VA(AC),18W(DC),IP65,100%ED S91B,22VA(AC),17W(DC),IP65,100%ED
|
| Material | Body-brass &Stainless steel Seal- NBR,EPDM,VITON Amature tube-stainless steel 304 Plunger-stainless steel430F Stop-stainless steel 430F Springs-SS304 Shading rings- stainless steel 304 |

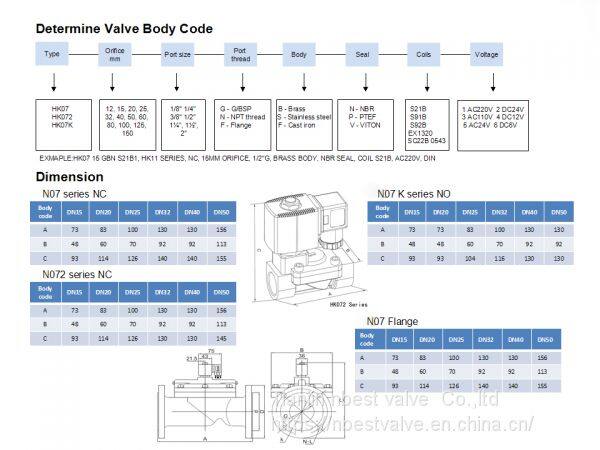

Drawing and data
Two related product:
Three.Company information:
Three.Company profile
Tianjin Nbestvalve Co., Ltd. was established in 2002, headquartered in No.21,No.1 Building, Ronghui Business Zone, Zhongguancun technology Park, Binhai New District, Tianjin, China. With the rapid development of the most dynamic Chinese Bohai Economic Rim, Our company, production, sales and manufacturing test capabilities, with independent import and export rights, is a science, industry and trade as one of the group enterprise.
Four.Aplication Area
a. Domestic sewage treatment.
b. industrial wastewater treatment.
c. industrial irrigation treatment.
Five.Packing and Freight
Six.FAQ
Q: Are you trading company or manufacture?
A: We are factory located in Tianjin, China.
Q: What's your product range?
A: We specialize in product butterfly valves,solenoid valve, gate valves, check valves, Y type strainer, water controlling valves,motorized valves,pneumatic valves,hydraulic valves and other pipe accessories.
Q: What's execution standard?
A: ISO/ANSI/DIN/JIS/EN/GOST standard.
Q: What's your strong product?
A: Concentric butterfly valves, grooved butterfly valves, dual plate check valves.
Q: Do you provide sample? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q: How long is your delivery time?
A: Generally it is 7 days if the good are in stock, or it is 20 days if the goods are not in stock, it is according to the quantity.
Q: What is your terms of payments?
A: Payment ≤10000 USD, 100% in advance. Payment ≥10000USD, 30% T/T or other ways in advance, balance before shipment.
