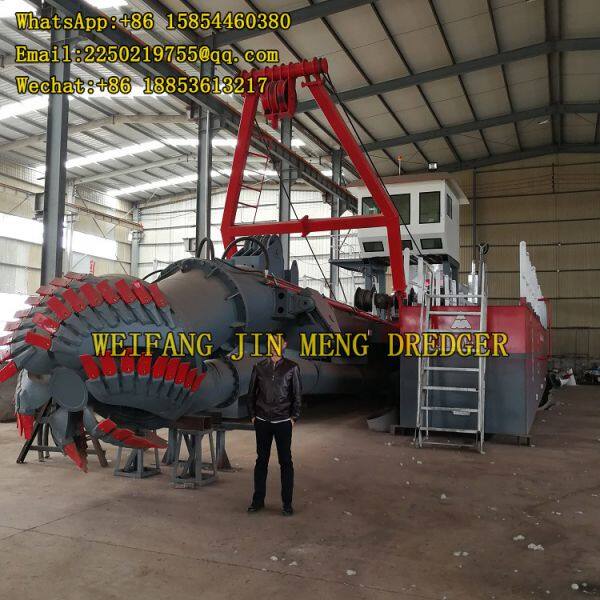

Features:
1. Simple, rapid assembly and dismantling. Engineers available service abroad
2. Spare parts and floating pipe will be supported.
3. Reliable hydraulic system,easy to control
4. Efficient fuel consumption.
5. Siemens PLC control,One-man operation.
Dredger LOA | 20.0m |
Hull size(L×B×H) | 13.0×5.2×1.5m |
Main pontoon(L×B×H) | 8.3×2.2×1.5m |
Side pontoon (L×B×H) | 11.0×1.5×1.5m |
Structure | box-structure |
Main engine brand & power | Cummins 224kw / Jichai 220kw / Weichai 220kw |
Auxiliary engine brand & power | Customized |
Harbor generator | Cummins 20kw /Jichai 20kw / Weichai 20kw |
Total power | Cummins 244kw /Jichai 240kw / Weichai 240kw |
Dredging pump | Warman Technology |
Discharge pipe inner Dia. | 200mm |
Head | 30m |
Max. dredging depth | 8m |
Water flow | 800m³/h |
Solid sand capacity | 160m³/h |
Discharge distance | 800m |
Cutter head Dia. | 1300mm |
Cutter power | 30kw |
Draught | 1.1m |
Displacement | 65T |
Hydraulic control system | PLC Siemens |
Wire rope pulling force (Lifting winch )*Quantity | 40KN *1 |
Wire rope pulling force (Traversing winch )*Quantity | 40KN *2 |
Operation room | Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights |
Total weight | 50T |
Total fuel oil consumption | 34L/H |
1,Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2,Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
3,After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
