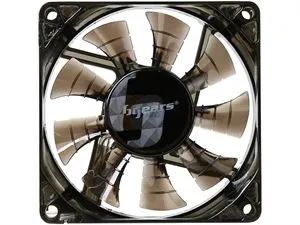

Bgears B-PWM 90 Black 90mm Case Fan

Firstsing Company Limited
Bgears B-PWM 90 Black 90mm Case Fan thumbnail-1
Bgears B-PWM 90 Black 90mm Case Fan photo-1
US$ 2.5 - 3 MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Firstsing
Place of Origin:
China
Model Number:
FS988622
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Firstsing
Place of Origin China
Model Number FS988622
Type Fan
Application Computer Case
Heatsink Material Other, PC

  • Bearing Type

  • 2 Ball

  • RPM

  • 4000 RPM

  • Air Flow

  • up to 88CFM

  • Power Connector

  • 4 Pin

  • Color

  • Black

Features

  • Features

  • Extreme airflow range for ultimate cooling and control

    2 Ball Bearing designed for high speed high performance

    Better cooling and silent system performance thru PWM fan speed control

    15 aerodynamic design fan blades for better airflow and stability

    15 translucent blades (No LED for Translucent Black, Blue LED for Translucent Blue and Red LED for
    Translucent Red)

    This fan can also be directly connected to a standard mini 3 pin connector on the motherboard or fan controllers

    Mini 4 pin connector, 3 to 4 pin Molex adapter and 4 screws included

    Available in 120mm and 140mm

    Available in Translucent Black, Translucent Blue and Translucent Red

Quick Info
Warranty

  • Limited Warranty period (parts): 1 year

  • Limited Warranty period (labor): 1 year


80mm90mm
Speed(RPM):500 to 4000RPM±10%500 to 4000RPM±10%
Current(A):0.40±0.02A0.62±0.02A
Power(W):4.807.44
Airflow(CFM):7888
Airflow (at zero static pressure for pwm):1.49 Max. M3/Min.1.51 Max. M3/Min.
Static Pressure (at zero flow for pwm):0.330.34
Static Pressure (max for pwm):4.926.45
Rated Voltage(V):1212
Operating Voltage Range(V):10.8~13.810.8~13.8
Noise Level at Max Speed(dbA):37.039.0
Operating Temperature:-10°C~70°C-10°C~70°C
Storage Temperature:-20°C~70°C-20°C~70°C
Frame Size(mm):80x80x2590x90x25
Bearing:2 Ball2 Ball
Weight:81g85g
Life Expectancy :6000060000
LED:No LEDNo LED
