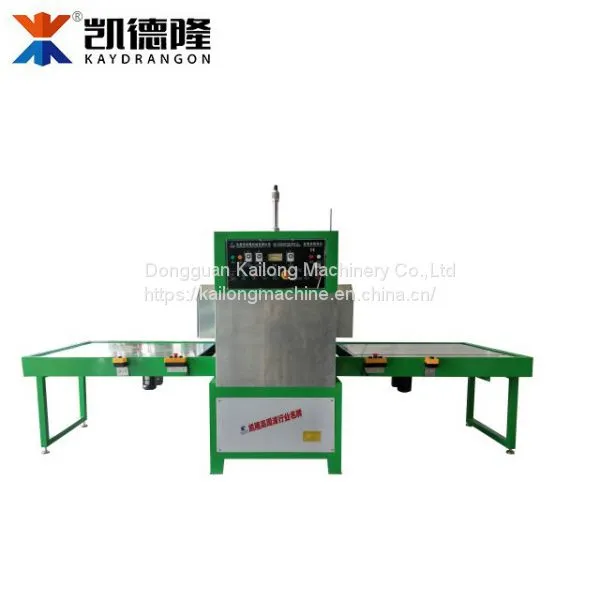

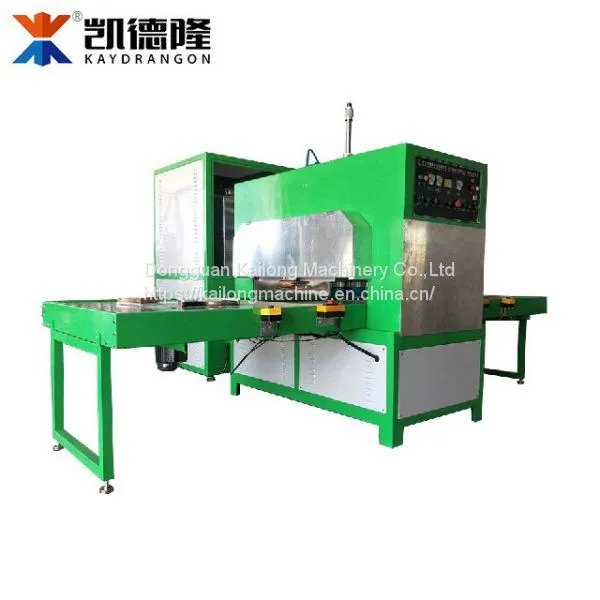

25kw inflatable products HF welding machine
TECHNIQUE SPECIFICATIONS
MODEL |
Kl-25000C |
Out POWER |
25000W |
POWER SUPPLY |
380V/220V/110v |
ELETRONIC POWER |
28KVA |
RECTIFIER |
SILICON DIODE |
VIBRATIONAL TUBE |
8T25RA |
MAX PRESSUERE |
48T |
MAX GAP OF ELECTRODES |
250mm |
SIZE OF ACCTIVE HORN |
175mm |
SIZE OF PLAT |
1500*1800 |
SCALE OF TEMPRETURE |
30～300℃ Adjustable |
TIME CHANGE |
0～10S Adjustable |
SIZE OF SHAPE |
1800*2000*1860mm |
NET WEIGHT |
2000kg |
Advantages
1.Using a high “Q”electron oscillator tube,so it is stable and reliable in output.
2.High sensitive spark depressing circuit is used for preventing mould damage.
3.With the movable table style structure, save time and strength ,easy to be operated.
4. A whole set high-quality imported components
5. Safe and easy operation
6. Customized service available
Application
Welding large inflatable products,such as swim ring,inflate tent,rolling ball,infaltable boat,life jacket,inflatable sofa&mattress etc.
