Conventional model parameters of chain conveyor
Steel hinged belt
Application:
1. solar power, mine, metallurgy, petroleum, chemical, food, pharmeceuticals, glass, printing and machine making industries;
2. Heat treament, drying, cooling, refrigerating, cleaning, dehydration, sintering, transportation, material handling, steaming, filtering, sludge draining, printing, etc.
3. sintering furnace, annealing furnace, continuous tunnle furnace, travelling furnace, high-temperature furnace, production line, etc

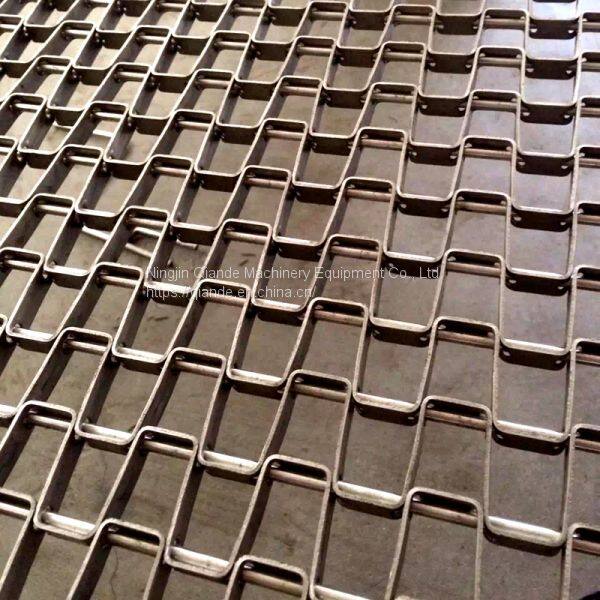

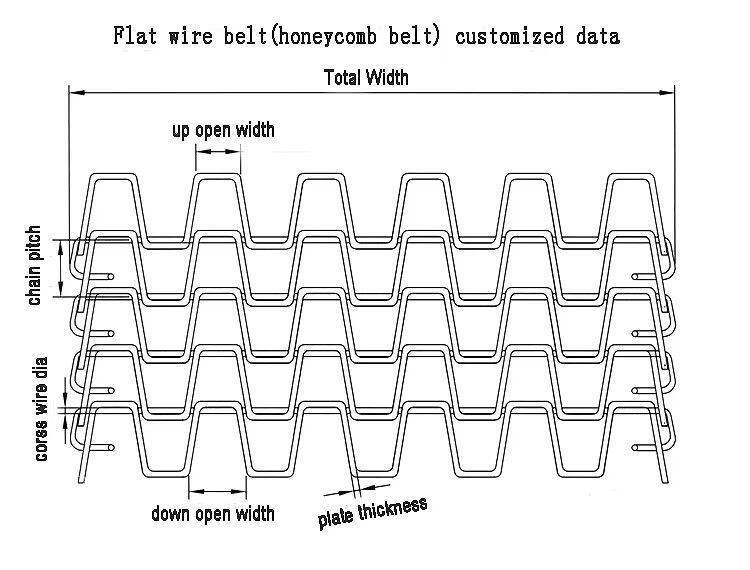

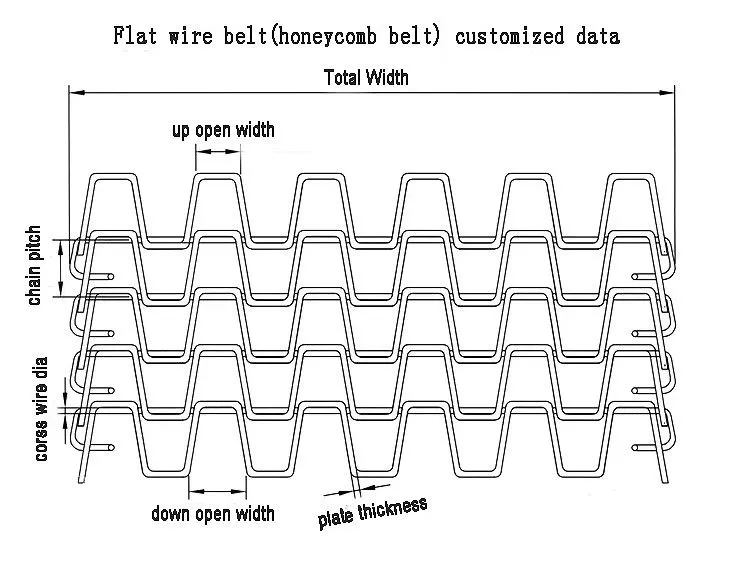

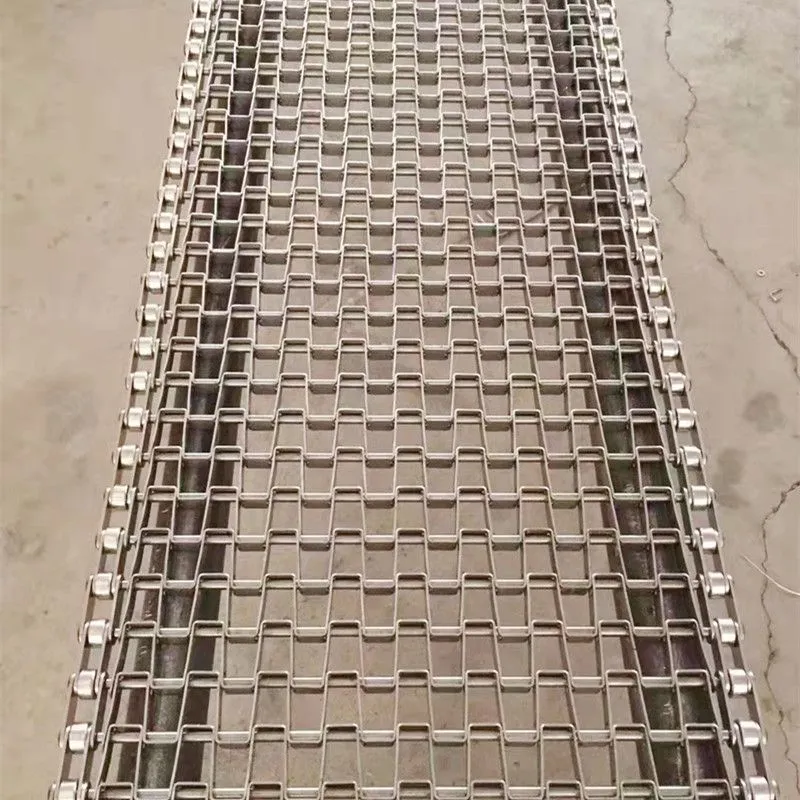

Flat Wire Belt

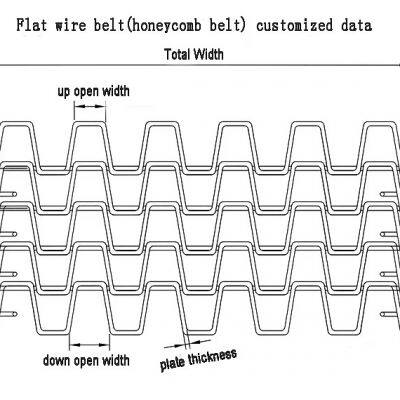

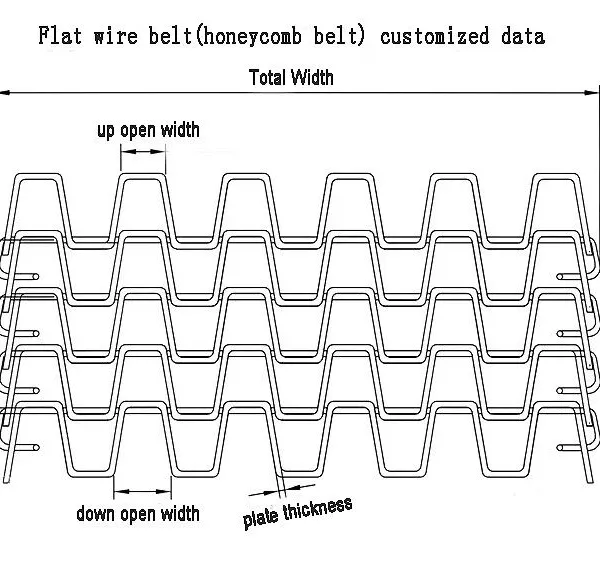

Honeycomb flat wire belt specification
| Item Name | specifcation | Max | Min | Remark |
| Honeycomb belt | Width | 5.0m | 0.5m | |
| Length | 30m | 1.0m | ||
| Plate thickness | 3.0mm | 0.5mm | ||
| Up open width | 30.0mm | 10.0mm | ladder shape | |
| Down open width | 50.0mm | 20.0mm | ladder shape | |
| Corss wire diameter | 4.0mm | 1.5mm | non welded | |
| Chian pitch | 50.8mm | 12.7mm | ||
| Material grade |
Q195 or 235 ss 201, 304, 316L, 430 |
|||
| Driven type | Sprockets driven directly |
no need chains |

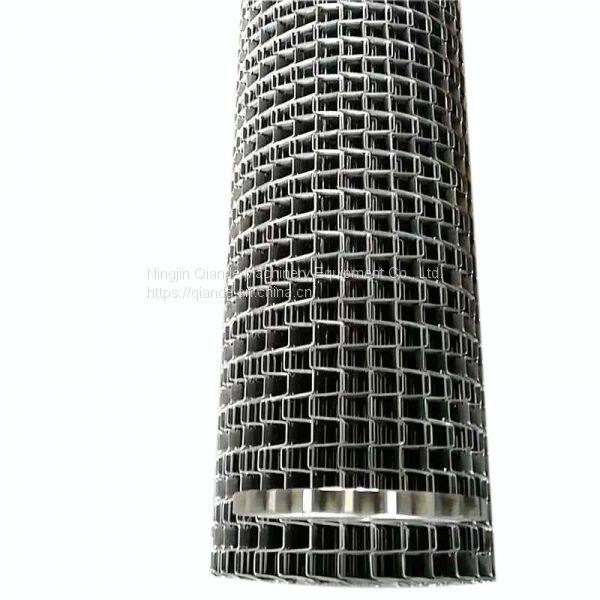

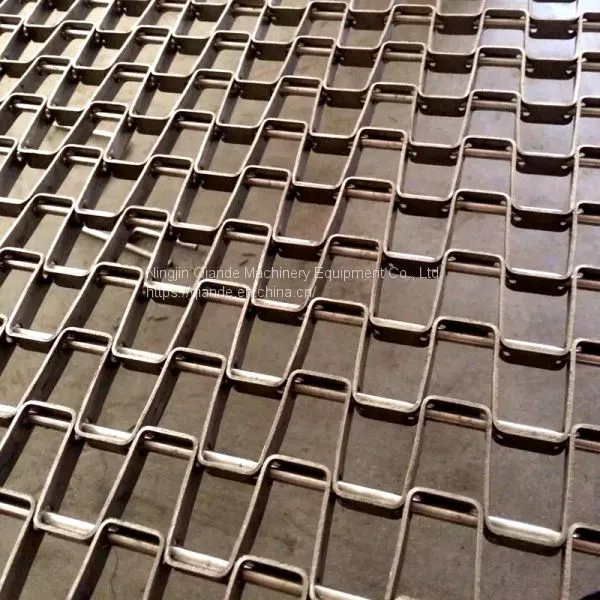

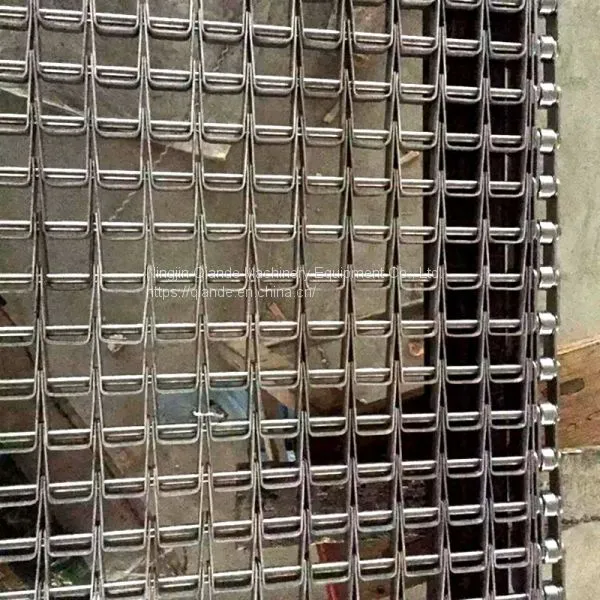

honeycomb metal conveyor belt

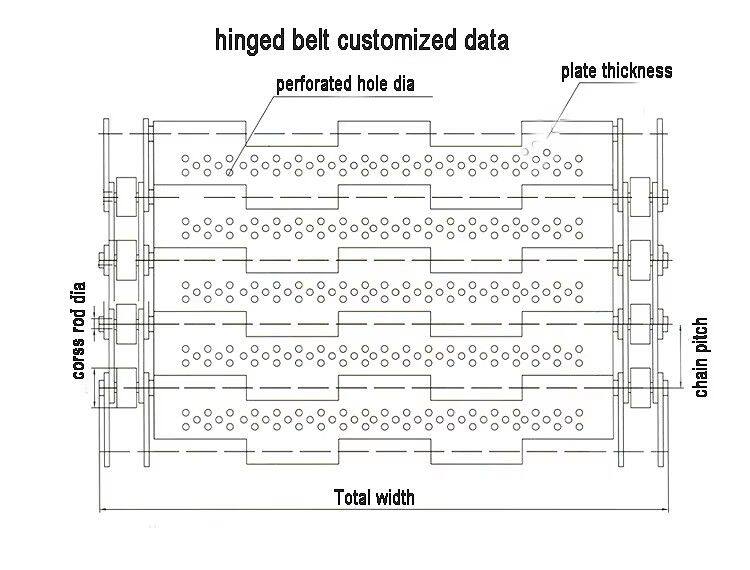

Specification
| Item Name | specifcation | Max | Min | Remark |
| Hinged belt | Width | 4.0m | 0.2m | include side chain width |
| Length | 30m | 1.0m | ||
| Plate thickness | 5.0mm | 0.5mm | usual 1.0 - 3.0mm | |
| Perforated hole dia | 10mm | 2.0mm | round shape | |
| Chian pitch | 100.8mm | 12.7mm | ||
| Support rod | 12.0mm | 4.0mm | common 6.0 and 8.0mm | |
| Material grade |
Q195 or 235 ss 201, 304, 316L, 430 |
|||
| Driven type | sprocket and chain |
|||
slat link conveyor belt with perforated round hole

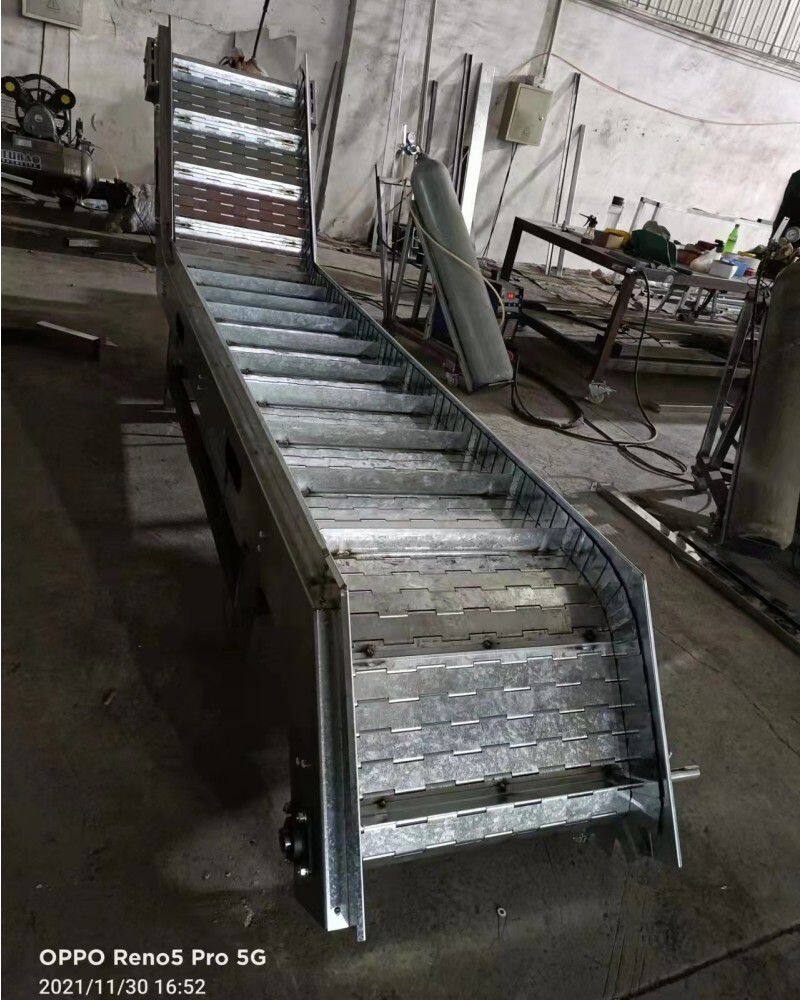

iron plate metal conveyor belt with side baffles

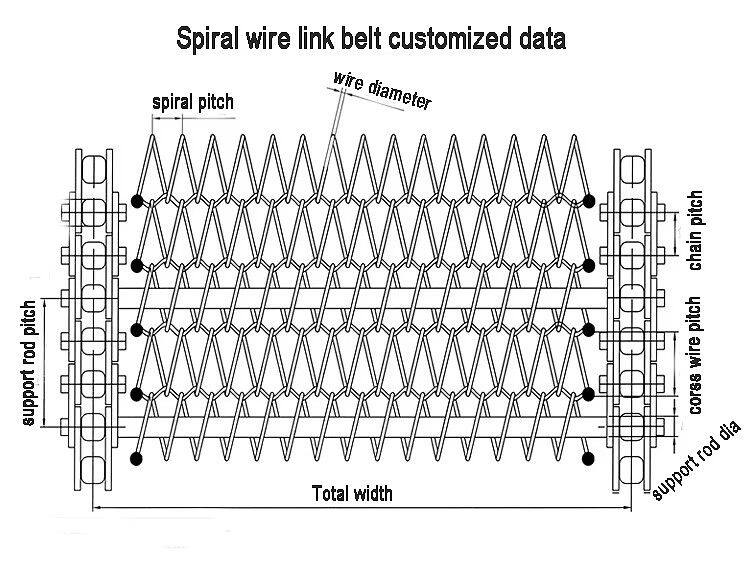

Spiral wiremesh belt
Description:
Spiral belt is made of "U" chain, spiral wire, and rod. Spiral wire is crossed by rods and then linked by "U" chains. The belt has very good turning capabilities and can go 180 degree curves.
With the smooth belt surface, good air circulation and easy-cleanable capabilities, the belt can bear high pressure and stress. Also, the belt is easy to maintain and dismantle, side guard available.
Specification
| Item Name | specifcation | Max | Min | Remark |
|
Spiral wire link belt |
Width | 4.0m | 0.2m | include side chain width |
| Length | 50m | 1.0m | ||
| Wire diameter | 5.0mm | 0.5mm | usual 1.0 - 3.0mm | |
| Spiral pitch | 20mm | 3.0mm | ||
| Cross wire pitch | 50mm | 5.0mm | ||
| Support rod | 12.0mm | 4.0mm | common 6.0 and 8.0mm | |
| Material grade |
iron steel Q195 or 235 ss 201, 304, 316L, 430 |
|||
| Driven type | sprockets and chains |
|||
Spiral wire mesh conveyor belt in roll
Spiral wire linked metal conveyor belt

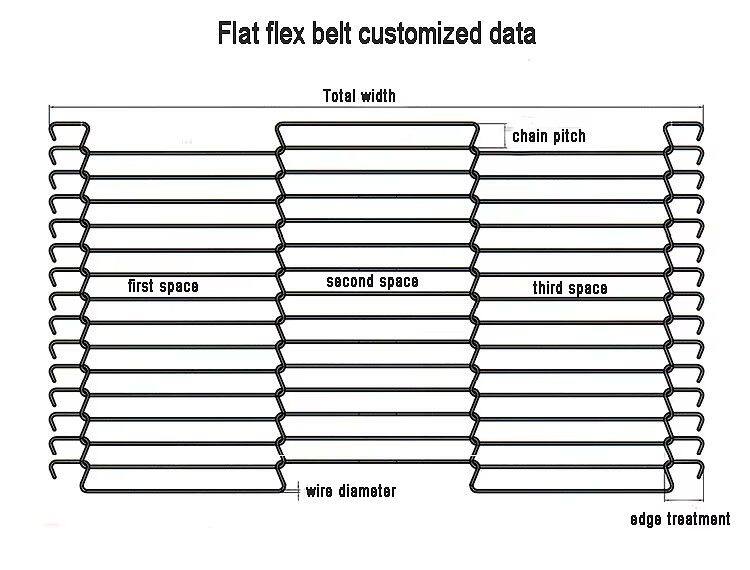

Flat Flex Belt
Product description
Flat flex belting is also called chocolate conveyor belt, which is made by assembling bent stainless steel wires. This innovative design lasts significantly longer than other flex-style belts:
Application
widely used in the electronics industry, the solidification of the circuit board, solid fusion, drying, reflow soldering. Cap industry of plastic drying; for chocolate, biscuits, fish baked, frozen and dry, with B network edge can be used in food industry chain drive.
Specification
| Item Name | specifcation | Max | Min | Remark |
| Flat flex belt | Width | 2.0m | 0.2m | |
| Length | 200m | 1.0m | ||
| Wire diameter | 3.0mm | 1.0mm | ||
| Mesh hole width | 100mm | 30mm | non welded | |
| Chian pitch | 15.0mm | 5.0mm | ||
| Edge treatment width | 10.0mm | 20.0mm | bend link | |
| Material grade |
Q195 or 235 ss 201, 304, 316L, 430 |
|||
| Driven type | Sprockets driven directly |
no need chains | ||

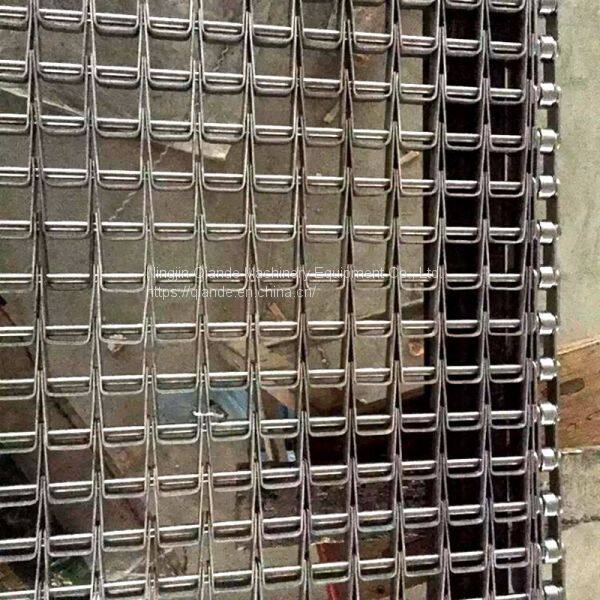

Flat flex wire mesh belt
Flat flex belt

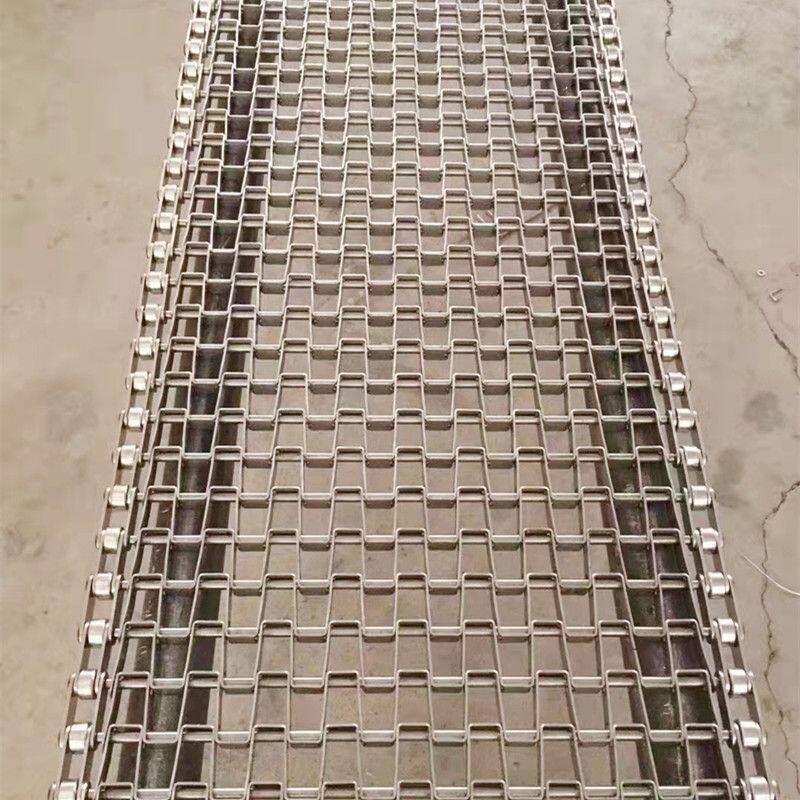

flat wire honeycomb belt and driven chains
Conveyor Machine

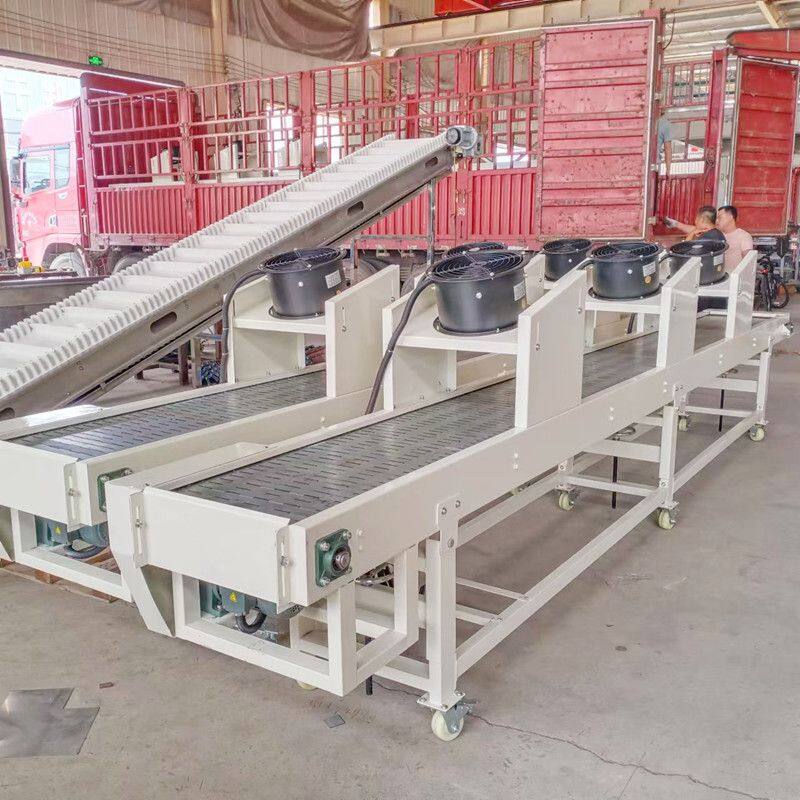

horizontal belt conveyor machine

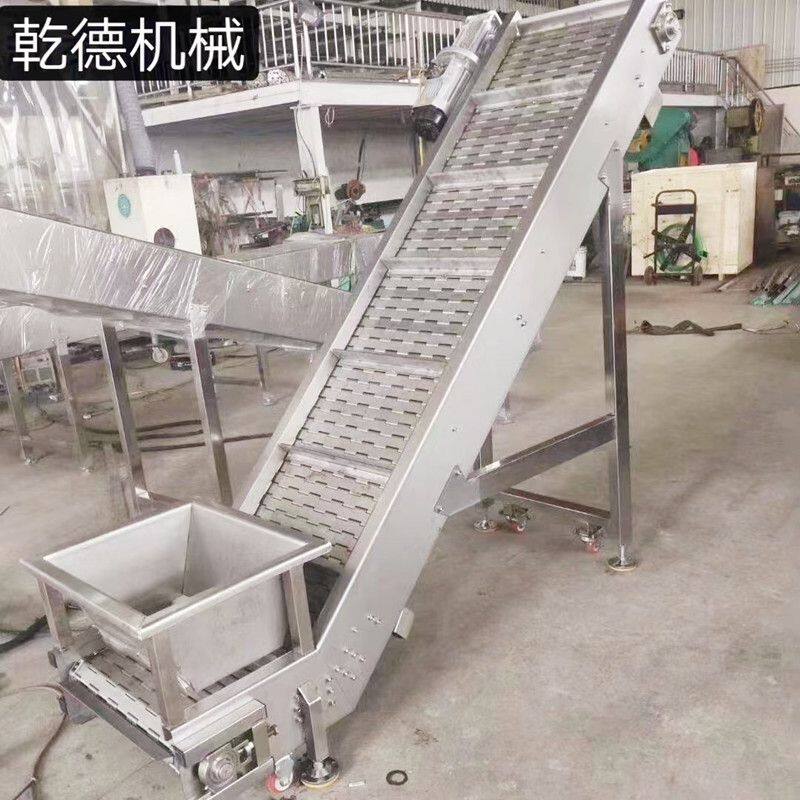

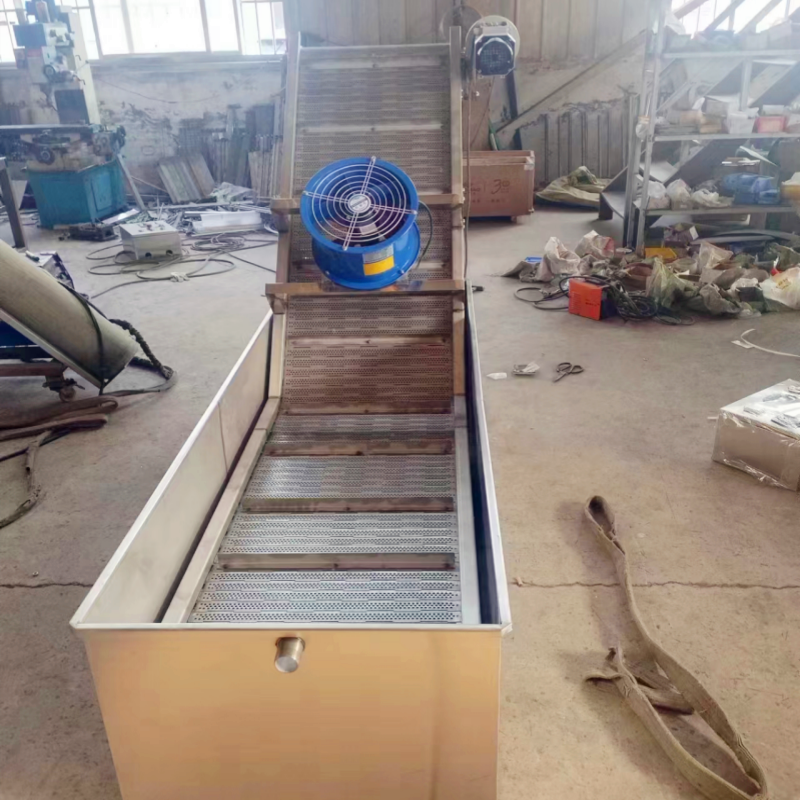

elevate conveyor machine
FAQ
Q:Are you a factory or a manufacturer?
A:we are manufacturer, and we have 20 years experience in this business.
Q:What's your payment term?
A:usually we ask 30% in advance by TT, and balance should paid against the copy of B/L. somtimes amount is so small that we will ask the full payment first.
Q:Can you supply samples, is it free?
A:most of our products has stock, so we can supply samples for free, but you should pay for the transfer charge. and some products need customized which have the MOQ that we cannot supply the sample.
Q:How about your quality and price?
A:We make our products with our conscience, we have both good quality and worse quality prodcuts, you can choose as your require, price is according to your require.
