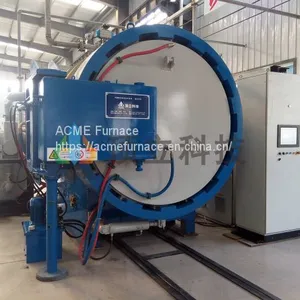

Help CenterHIP and Gas Quench Furnace
Related Products
-
Vertical Vacuum Water Quenching FurnaceUS$ 400000 - 4600000MOQ: 1 Set -
Horizontall Vacuum Water Quenching FurnaceUS$ 400000 - 4600000MOQ: 1 Set
-
Horizontal Single Chamber Vacuum Annealing FurnaceUS$ 300000 - 660000MOQ: 1 Set
-
Vertical Bottom Loading Vacuum Annealing FurnaceUS$ 300000 - 660000MOQ: 1 Set
-
High Vacuum Tempering FurnaceUS$ 200000 - 900000MOQ: 1 Set
Application
It is used for HIP and rapid cooling gas quench treatment of various metal, copper base, iron base powder, friction resistant material ceramic material and etc.
Technical Features
1. Horizontal twin chamber, horizontal loading structure. Furnace door type can be customized design.
2. Gas quenching chamber is bottom to top or left to right gas circulation, which has high heat exchange rate..
3. The HIP chamber is closed before gas quench, to save energy.
4. According to the treating jobs, users can choose to configure axial-flow type high power gas quenching fan or centrifugal high power gas quenching fan.
Configuration Options
1.Furnace door type: On-line; Off-line; Vertical up and down; Rotating
2.Gas quenching type: Cold airflow vertically cooling; Cold airflow side-to side cooling
3.Furnace hearth: Graphite heating elements and graphite felt heat insulation
4.Vacuum pump unit and vacuum gauge: Abroad brand; high-quality Chinese brand
5.Vacuum degree: High vacuum; Medium vacuum
6.PLC: OMRON; Siemens; Mitsubishi
7.Temperature controller: SHIMADEN; EUROTHERM; Honeywell
8.Thermocouple: Type K; Type N; Type S
9.Recorder: Paperless recorder; Paper recorder
10.HMI: Simulation screen; Touchscreen with industry computer
11.Electric components: High-quality Chinese brand; Schneider; Siemens
Main Specifications
| ParameterModel | HIPGQ-335D | HIPGQ-446D | HIPGQ-557D | HIPGQ-669D | HIPGQ-7711D | HIPGQ-8812D | HIPGQ-9915D | |
| Effective hot zone size W×H×L (mm) | 300 × 300 × 500 | 400 ×400 × 600 | 500 × 500 × 700 | 600 ×600 × 900 | 700 × 700 × 1100 | 800 × 800 × 1200 | 900 × 900 × 1500 | |
| Loading capacity (kg) | 75 | 250 | 400 | 600 | 1000 | 1200 | 1500 | |
| Heating power (kW) | 48 | 75 | 90 | 150 | 270 | 360 | 480 | |
| Max. temperature (°C) | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | |
| 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | ||
| Temperature uniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | |
| Vacuum degree (Pa) | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | |
| 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | ||
| Pressure increasing rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ||
| Transportation time (S) | ≤12 | ≤15 | ≤20 | ≤25 | ≤30 | ≤30 | ≤35 | |
| Gas quenching pressure (bar) | 20/40/60 | 20/40/60 | 20/40/60 | 20/40/60 | 20/40/60 | 20/40/60 | 20/40/60 | |
| Cooling gas (99.995%) | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | N2/Ar/He | |
