High Resolution Inspection Trinocular Stereo Industrial Microscope with 14MP HDMI HD Camera
more detail , please contact me !
Att:Bea
Skype:Bea BGA
Whatsapp&WeChat:+8615019413375
Specifications of Industrial Microscope
Eyepieces:Wide field high point eyepiece WF10X20mm
View head: trinocular head, 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X. inter-pupillary range 54~76mm, both two tube diaper adjustment(±5)

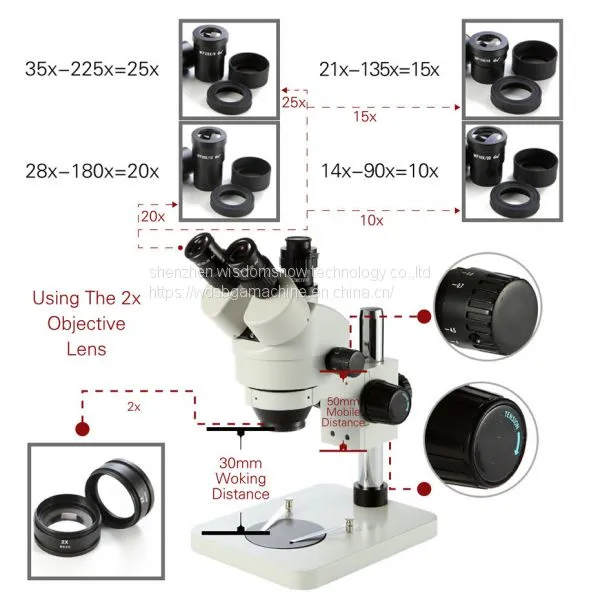

Objective lens: 0.5X, 2.0X for option.

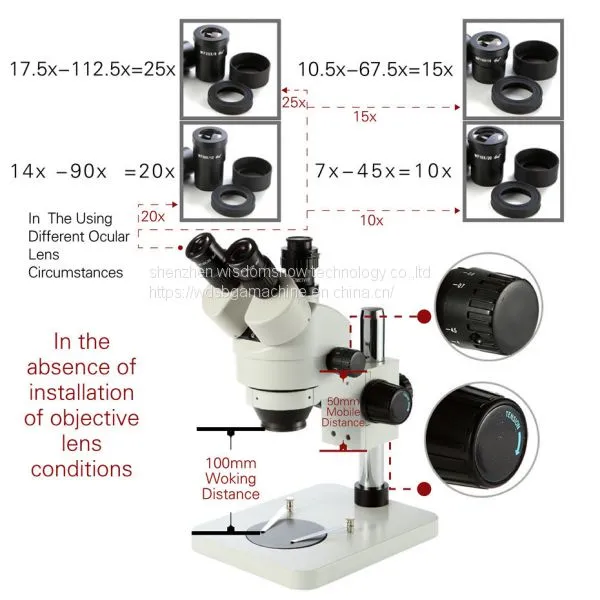

Magnification: Total 3.5X—180X zoom range.

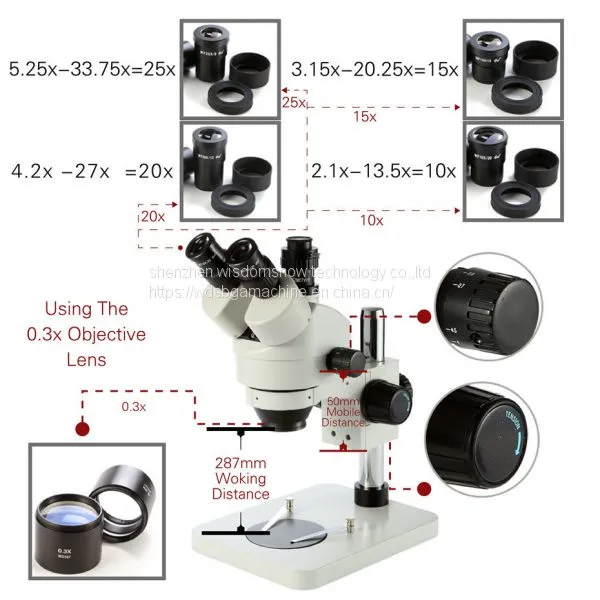

Working Distance:
Standard is 100mm,its can be expand 30mm to 265mm use with the auxiliary lens.
Stand: Double-Arm Boom Stand
Illuminator: separate led light be used.
1/1 CTV CCD Adaptor.
Focus: Simul focus (without switch bar)
Features of LED Light
144 Bulbs Microscope LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Details of Camera
Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1280 *720 @ 30FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1280 *720 @ 30FPS (for TF Card)
USB Video resolution: 1280 *720 @ 30FPS
White Balance: Auto
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions

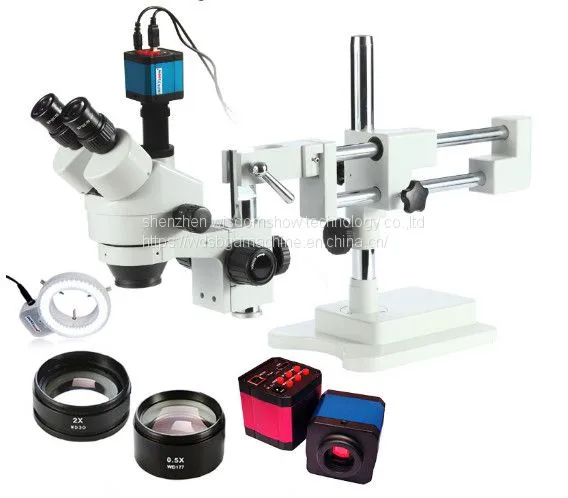

Packing List
1 x Trinocular Stereo Zoom Head SZ45TR
1 x Pair of Super Widefield High-Eyepoint WF10X Eyepieces
1 x 2.0X Barlow Lens
1 x 0.5X Barlow Lens
1 x Double-Arm Boom Stand
1 x Focus Rack
1 x Pair of Eye-Guards
1 x User's Manual
1 x 144 LED Light
1 x Adapter
