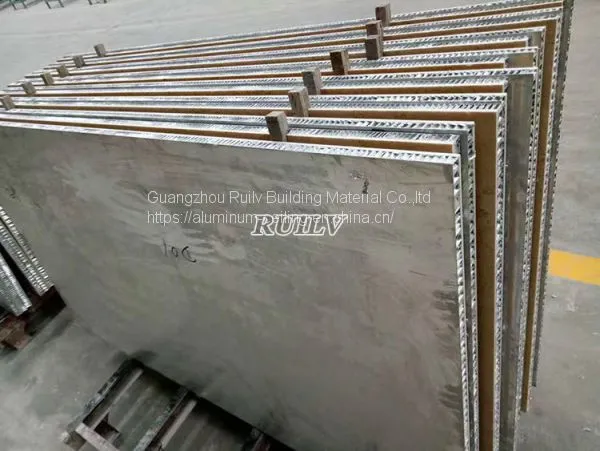

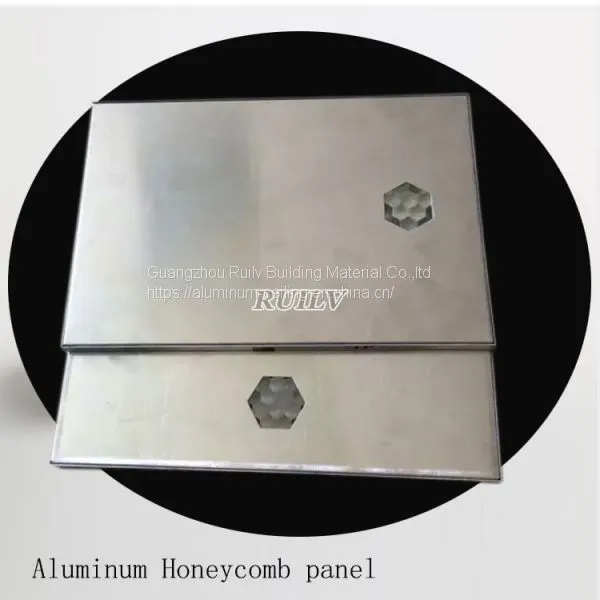

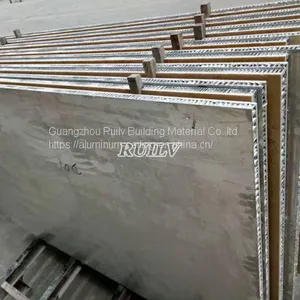

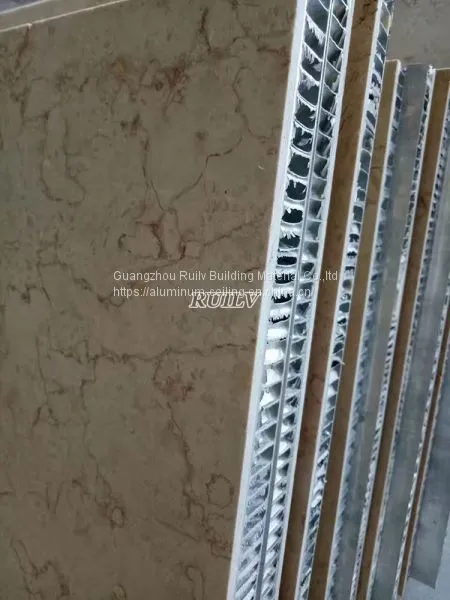

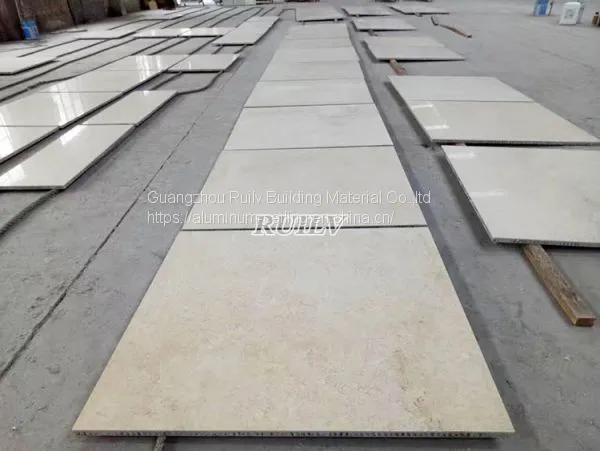

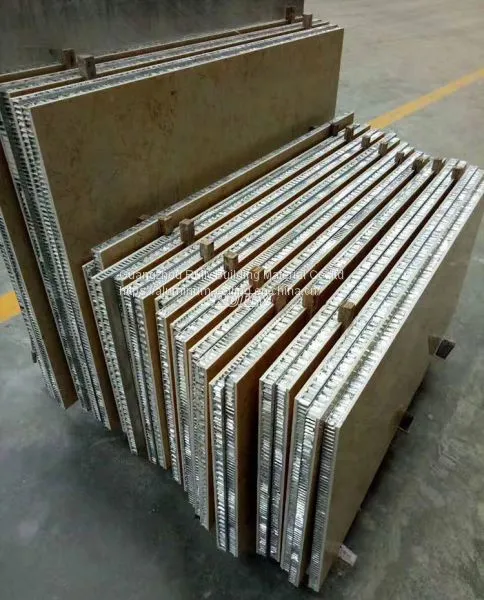

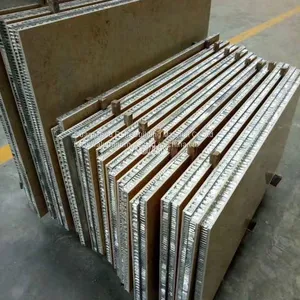

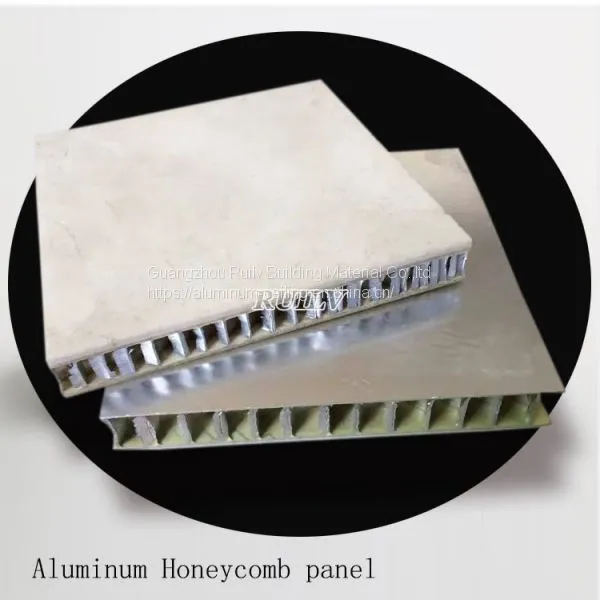

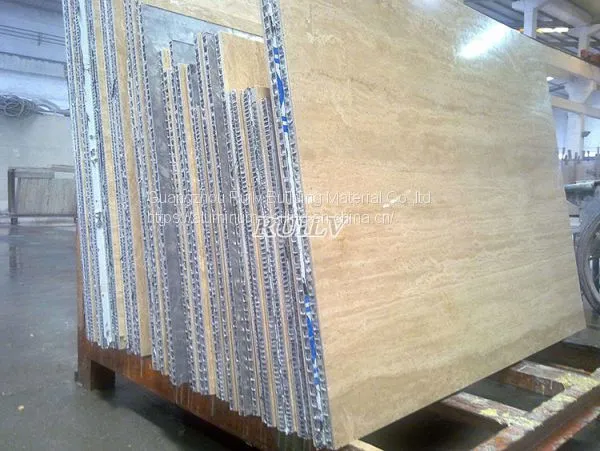

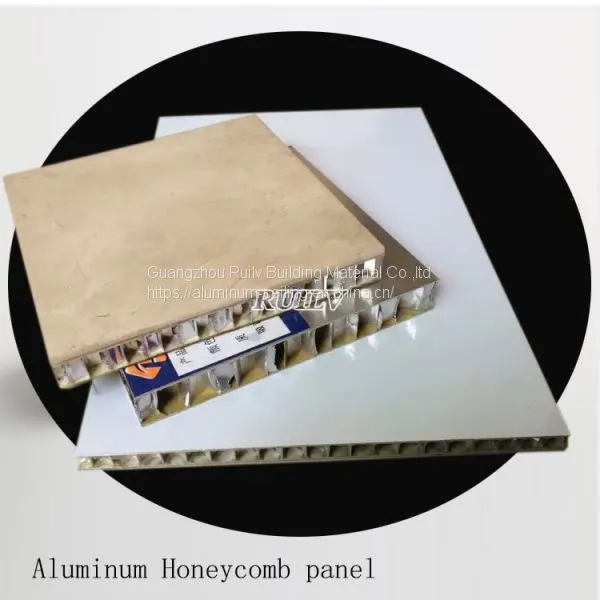

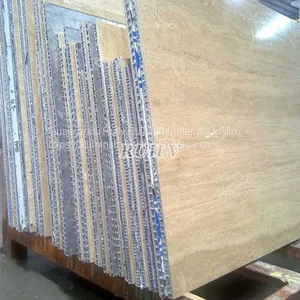

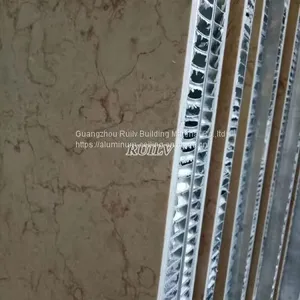

Stone Grain Aluminum Honeycomb Panel/ Aluminum Honeycomb board for Wall/ Aluminum Honeycomb panel for ceiling

Specifications of Aluminum Honeycomb Panel:
1) Total Thickness: 6mm - 200mm
2) Standard thickness: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm
3) Standard size: 1220x2440
4) Other size can be customized
5) Max. width: 2000mm
6) Max. length: 10000mm
7) Colors: RAL colors
8) Quality Warranty: 20 years

TOP ALUMINIUM SKINS
1) Thickness: 0.5mm - 1mm (standard)
2) Alloy: 3003, 5005, 5052
3) Special thickness according to customers’ requirements (such as 1.5mm - 2.0mm - 3.0mm)
4) Surface Treatment: PE Coated, PVDF Coated

ALUMINUM CORE
1) Hexagonal cells, Alloy series 3003
2) Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”
3) Foil thickness: from 50 to 80 microns

BOTTOM ALUMINIUM SKINS
1) Thickness: 0.5mm - 1mm (standard)
2) Alloy: 3003, 5005, 5052
3) Special thickness according to customers’ requirements (such as 1.5mm - 2.0mm - 3.0mm)
4) Surface Treatment: PE Coated, PVDF Coated

On request: Special alloys, treatments and coating with RAL colors

curtain surface coating of aluminum applied fluorocarbon polymer coating, metal coating is applied to the external walls, the main component

containing not less than 70% Kynar500 or Hylar5000 of fluorocarbon resin, is the most stable molecular structure and Durability combined with

coating, fluorocarbon products through long-term exposure to the suns ultraviolet resistant, industrial emissions, acid rain and chemical erosion,

maintaining long-term stability and smooth color, coating does not peel off, do not crack, not powder and so on Products to the United States

AAMA2605 quality standards. To make our products meet world-class standards, the use of advanced coating equipment imports, the choice of

Akzo Nobel or the United States produced by PPG kynar-500pvdf fluorocarbon polymer coating spray.

Wood pattern rich, realistic effect, weather-resistant paint layer uniform, strong wear-resistant,

shape, thickness can be customized to meet the needs of different construction, installation

and maintenance is simple, saving construction costs, quality assurance, durable wood grain

aluminum single After the curtain wall surface generally passivation and other special pre

treatment, and then use super-resistant coating after taking the time transfer processing

Safety, environmental protection, pollution-free, 100% recyclable
