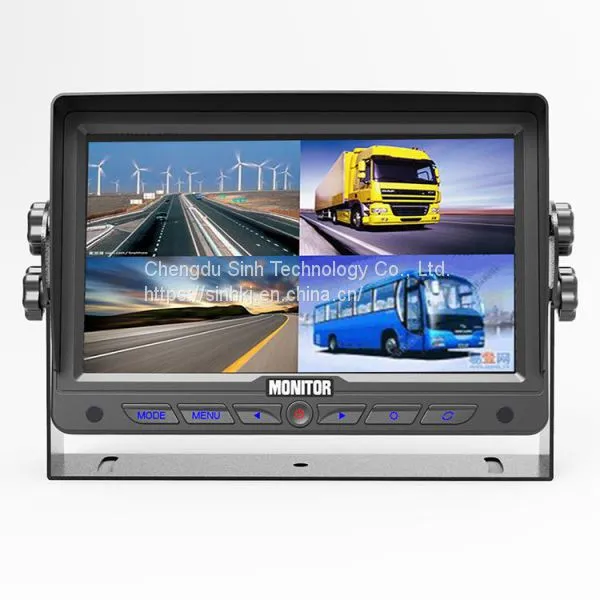

AHD 7 Inch Rear View Split Quad Monitor
US$ 95 - 120
MOQ: 100 Sets
Key Specifications
Get Latest Price
Brand Name:
SINH
Place of Origin:
China
Model Number:
SINH-003
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu
Delivery Detail:
20 days
Related Products
-
Truck 7inch Heavy Duty LCD Monitor 3CH Input 9~36V Power InputUS$ 40 - 60MOQ: 100 Sets -
7 Inch AHD 4CH Car Monitor Vehicle Truck Night Vision Rear View CameraUS$ 90 - 120MOQ: 100 Sets
-
4CH AHD 1080P 360 Reverse Aid Truck Safety System Portable Android Touch Screen 10.1 Inch Truck Carplay DVRUS$ 120 - 200MOQ: 100 Sets
-
Latest Reversing Camera System With 7inch Digital LCD Monitor, Rear View Camera, Ideal for Truck, Bus, Van, Lorry, Etc.US$ 60 - 90MOQ: 100 Sets
-
12V or 24V Night Vision Truck Wireless Rear View Camera Trailer Reversing Camera System 7in LCD MonitorUS$ 180 - 260MOQ: 100 Sets
Brand Name
SINH
Place of Origin
China
Model Number
SINH-003
Voltage
DC 24V
Power
6w
Car Make
Truck
Warranty
1
AHD 7 Inch Rear View Split Quad Monitor
Product features:
Four cameras input,with remote controller
PAL / NTSC system,mirror or normal image can be set in the MENU for each camera separately
Automatically turn on when the reversing gear is engaged
4 channel trigger function (trigger delay 0s-5s adjustable)
Trigger priority:CAM 2>CAM 1>CAM 3>CAM 4
With high-low voltage protection and short circuit protection
Deep sunshade to keep light off in the front of the monitor and it helps prevent glare at night.
Heavy duty U-shaped metal bracket keeps it stable on the roughest of roads.Supporting VESA bracket
AHD 7 Inch Rear View Split Quad Monitor
Products specifications:
| Model Number:CS-S756AHD-Q |
| Panel: 7 " high digital new panel ,16 : 9 image |
| Video System: PAL / NTSC system Compatible |
| Resolution: 1024 x RGB x 600 |
| Brightness: 500 cd/m2 |
| Contrast: 400 : 1 |
| View angle: L/R:70,UP:50,down:70 degree |
| Display mode:Single /Split /Quad view selectable |
| Video input format:720P&960P HD 25Fps PAL |
| Power supply: DC 9~32 V |
| Power Consumption:15 Watt Max. |
| Osd control:Multi-lingual OSD,Reversing Delay,Power off screen,TV mode,Turnover,Firmwave Version,Backlight |
| Dimension( without shade) :17.8 x 12 x 2.35cm |
| Dimension( witht shade) :17.8 x 12 x 6.35cm |
| Operating Temperature(Deg.C):-20℃- +75℃ |
| Storage Temperature(Deg.C):-30℃- +80℃ |
