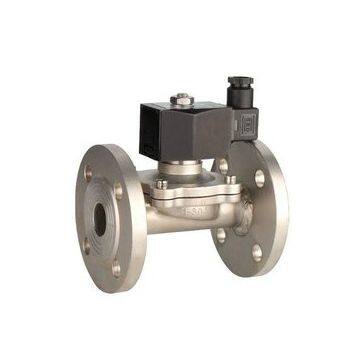

Gas Solenoid Valves

working medium:water,liquid,air,light oil(viscosity≤20cst)

medium temperature:-5 ~ 80oC

working pressure:0 ~ 10bar (details see specification table)

working type:semi direct acting(NC)

Valvebody material:brass  SS304

sealing material:NBR

interface:G thread   NPT thread

voltage:AC220~240V  AC 110V  AC24V  50/60Hz   DC24V  DC12V   IP65  H degree(iron seal coil: IP54  B degree)

        DN10~25  AC 20VA  DC 30W   DN35~50  AC 45VA  DC 31W

Options:

Rc thread   sealing material: EPDM  VITON  VMQ(-10~130oC)

Digital timer   LED light connector

Es low power energy saving coil( DN10~25  AC220 V4VA  DC24V 4W   DN35~50  AC220V 8VA  DC24V 7W )

Lead wire iron seal coil

FAQ

Q:What Is Our Main Application?

A:1.Hydraulic system

2.Agriculture machine

3.Construction machina

4.Automobile

5.Local distributors

Q:What Is The Payment Terms?

A:Full order:30% as desposit, the balance before shipment:

Small order /sample ordre: full payment in advance:

Q:Can I Mark My Own Brand On The Pump?

A:Yes. Full order can mark your brand and code.

Q:What Is Our Main Export Market?

A:Europe (41.7%):Italy,Germany,England,France,Holland,Greece,Spain,Portugal,Swissland,Finland,Czekh,Russia,Poland

Asia(40.5%):China,Korea,Singapore,India,Turkey,Iran,Vietnam,Saudi Arabia,Syria,Isreal,Lebanon

Q:How Long Is Guarantee?

A:We give 1 year guarantee.

Our Services

The working pressure can reach 1.3MPa.Normal close and normal open is optional. The port size ranges from 1/8"to2". It can be used in many different medium like air, gas, oil etc. Excellent performance and widely application settle the position in solenoid valves. The annual output is around 720,000pcs.

Characteristic:

1. Pilot operated diaphragm construction with lower power

Consumption for longtime working

2. Applied to pressure system opened from 0.3 bars;

3. Lifespan can be at 1 million cycles.

Medium: Water, Air, Oil, Natural gas, Hot water.

Temperature: NBR: -10 ~ 80

VITON: -10 ~ 120

Pressure: 0.05 ~ 1.60MPa

Body: Brass Or Stainless Steel SUS304

Port Size: 3/8\1/2\3/4\1\11/4\11/2\2

Orifice (mm): DN 15\20\25\32\40\50f

Voltage: DC: 12V, 24V\36V

AC: 220/230V, 110/120V, 24V (50/60Hz)

Our advantage:

(1)We can do the designs according to customers' requirements.

 (2)We can open customers' own mold as per their requirements.

(3)We can offer you a good after-sell service.

 (4)Prompt delivery.

(5)Small order is welcome, the MOQ is 1 pc.
