Sweet corn automatic packing machine video on youtube:
https://youtu.be/LMVAkZDj3xo
Brief Introduction

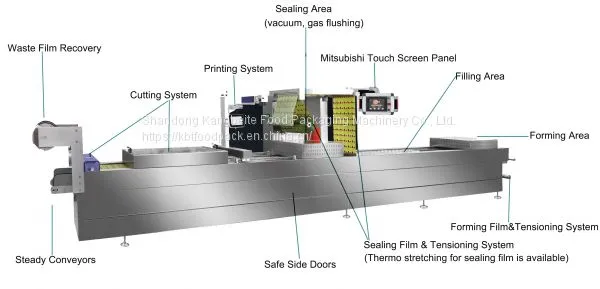

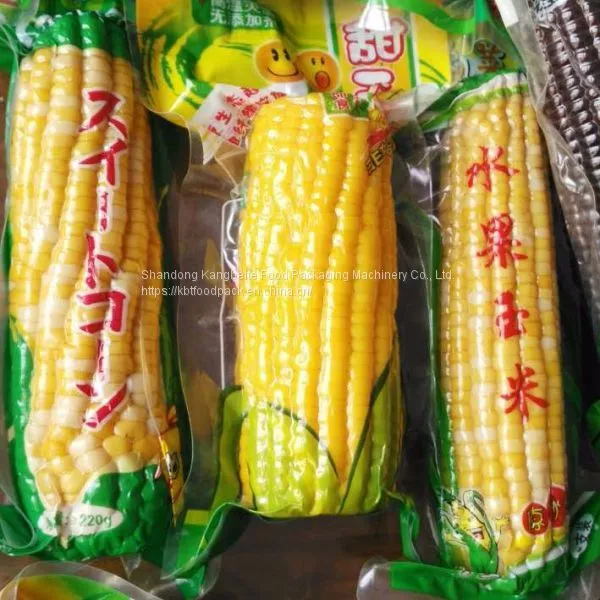

Sweet corn cobs packing machine, vacuum packing, flexible film
with date printing function. Capacity: 10000-18000 whole corn cobs per day.
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
| No. | Name | Unit | DRZ-320 | DRZ-420 | DRZ-520 |
| 1 | Sealing Film width | mm | 293 | 393 | 495 |
| 2 | Forming Film width | mm | 322 | 422 | 520 |
| 3 | Vacuum degree | mBar | 0.1 | 0.1 | 0.1 |
| 4 | Power supply | V, Hz | 380v/50hz,3phase | 380v/50hz,3phase | 380v/50hz,3phase |
| 5 | Vacuum capacity | m3/h | 100-300 | 380v/50hz,3phase | 380v/50hz,3phase |
| 6 | Power | KW | 15 | 16 | 18 |
| 7 | Compressed air | Mpa | ≥0.6 | ≥0.6 | ≥0.6 |
| 8 | Overall dimension | mm | 5100*900*1800 | 5300*950*1860 | 6600*1080*1760 |
| 9 | Weight | KG | 1300 | 1800 | 2100 |
Please Note: Multi function packaging machine line is highly customizable product, the above datas are all customizable.
Product Advantages
Main Features
1.High efficiency, at least 10000 packages per day. Adopt to most packaging film materials including full aluminum foil package.
2. All surfaces contacting packaging products are made of food grade SUS304 stainless steel.
3. aluminum magnesium alloy one piece panelized side board and frame, light weight, steady and more durable
4.Mitsubishi :PLC (3G-60MT),Human-machine interface touch screen(GOT2000), push-pull type for control panel,servo system controls stepper speed with high speed and precision,computer temperature control system, intelligent heating function, precise temperature control.
5.Top quality chains made in Taiwan, China.
6.AirTAC valve terminal type pneumatic system.
7.Original German (BUSCH or Gardner Denver) vacuum pump guarantee performance and durability.
8.Photoelectric tracking sensor from USA Banner Corp guarantees high precision package, perfectly adapt to different gloss lamination package.
9.Cross-cutting knife operates independently and controlled by computer.
10.Equipped with imported automatic recycle system for wasted and scrap.
11.Equipped with warning and protection system for power default phase, reverse phase and overtension, and lubrication of machines, which can help for operator use and adjust easily.
12.Forming, sealing, cross knife and rolling knife are all equipped with safety protection system and safety cover. System can automatic stopping in case of emergency. In the meanwhile, screen can show faults of system and appropriate solutions.
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Options Available
1. Machine size and functions will be designed in accordance with customer needs
2. Different vacuum pump options
3. Gas flushing available for Modified Atmosphere Packaging (MAP)
4. Die sets customizable. Extra die sets available at certain prices.
5. Different cutting system choices available
6. Different printing system available: inkjet or laser printing, more choices
7. In case you need to attach any other devices, we will leave spaces and ports for the devices
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

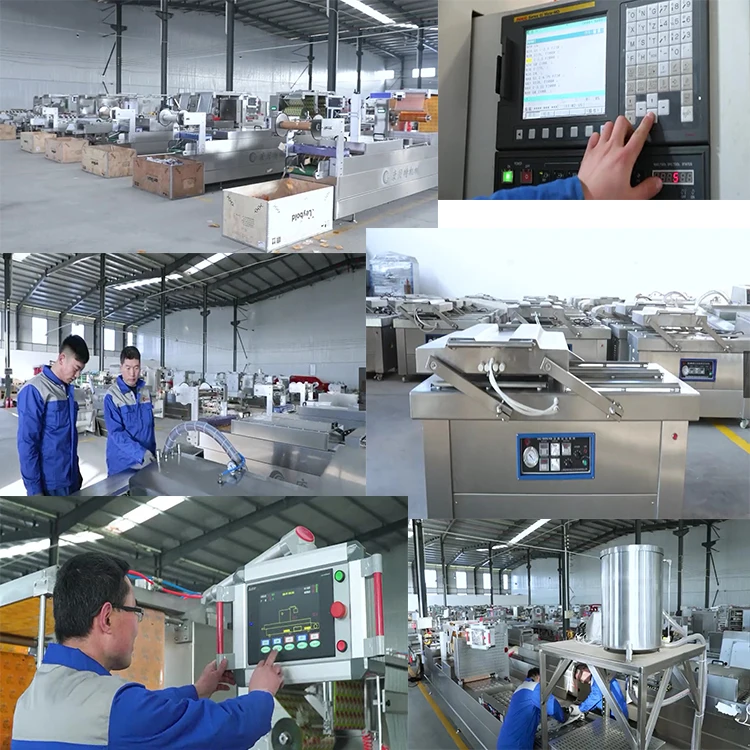

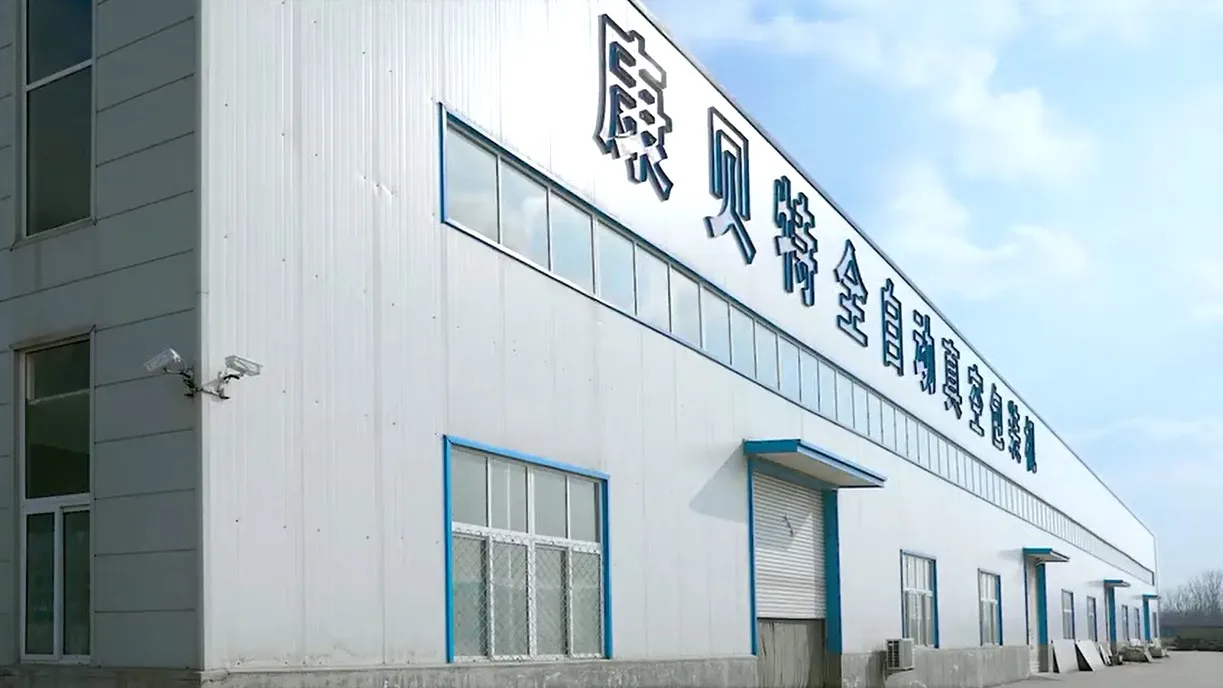

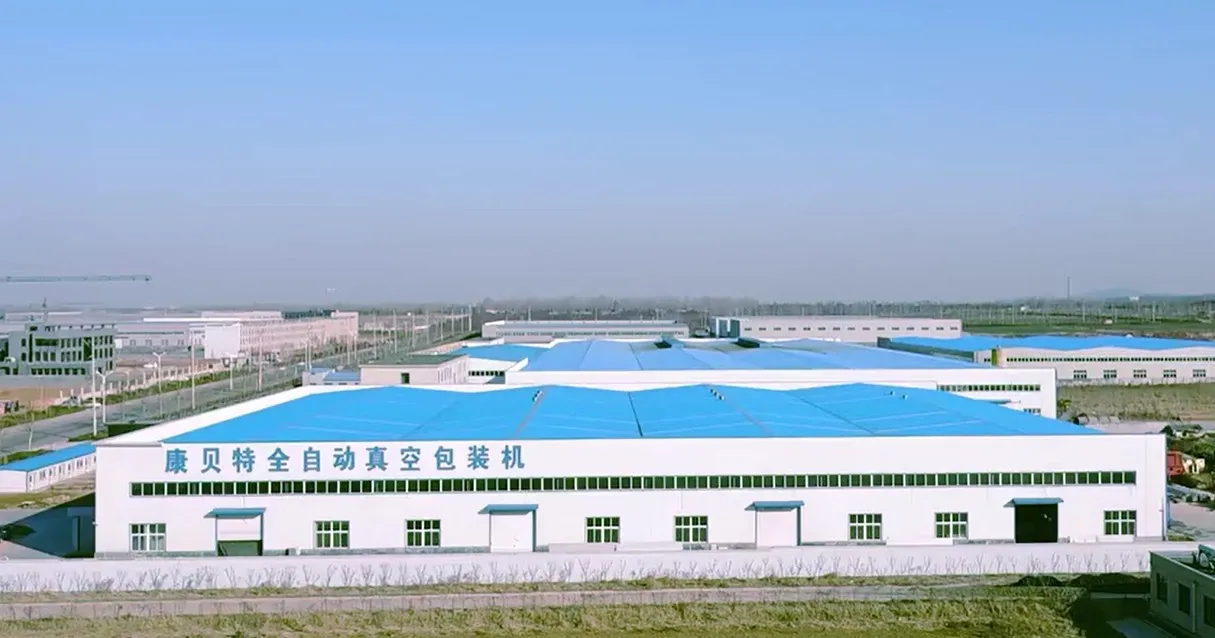

Shandong Kangbeite Food Packaging Machinery Co., Ltd., located in Shandong Province, east sea coast of China, is a professional manufacturer of food vacuum packaging machines with over 10 years' experience, our food vacuum packaging machines are ideal package solutions that cover most of the world's food package industry needs.
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
Our advantages:
1. Concentration: We focus on R&D and manufacturer of food vacuum packaging technologies and machines from the right start of our foundation
2. Location: With a distance of only 100 km away from Qingdao Port -the main commercial seaport of east China- we have the advantage of extremely convenience in traffic.
3. Industrial cluster effect: Zhucheng city is a traditional mechanical industry cluster area since 30 years ago, with the most famous brand Foton Corp. This city runs thousands of machinery factories including food machinery, packaging machinery, environmental machinery, vehicles, and textiles, etc. Thus high-tech human resources of mechanical industry is guaranteed, and purchasing cost of material is relatively competitive.
4. Product: Most parts of our vacuum packaging machines are world-famous brand products, including Busch vacuum pump, AirTAC pneumatic system, Mitsubishi PLC system, Schneider electric, etc. Machine quality and performance is thus guaranteed.

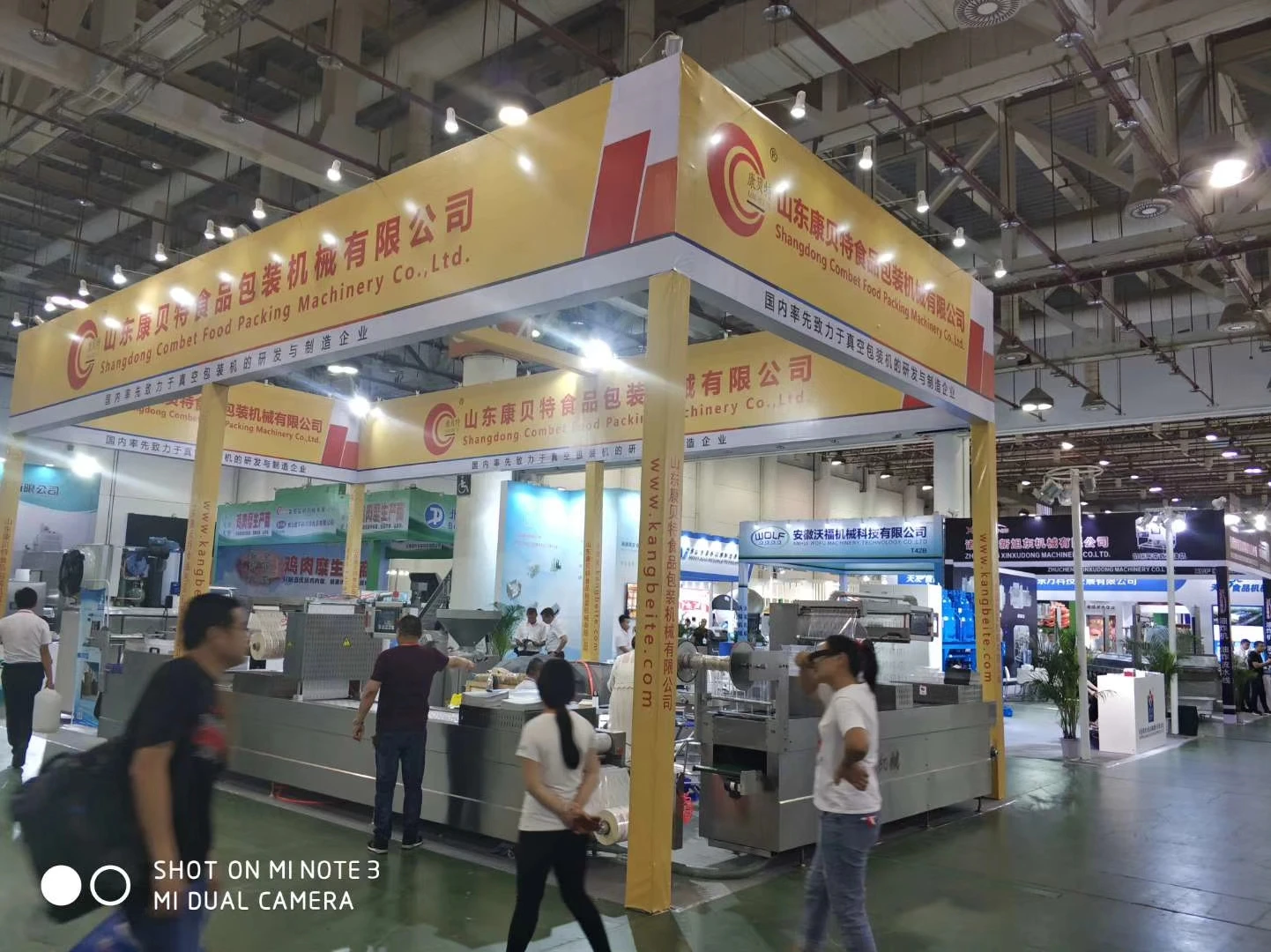

1. Show Name: Xiamen Hot Pot Ingredient and Food Material Exhibition
Location: Xiamen international conference & exhibition center, China
Date: May 18 - 20, 2018
