1.Grinding is accurate and rapid, easy operation with no skill to grind.
2.Economical price that greatly reduces the cost and improves the use effect.
3.With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4.The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5.Bearing shaft and locking unit.
6.The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.
SPECIFICATION
| Model | MR-13A |
| Grinding Range | Φ2-Φ13(Φ15) |
| Point Angle | 95°(90°)~135° |
| Power | AC220V |
| Motor | 120W |
| Speed | 4400rpm |
| Dimension | 32*18*19 |
| Weight | 10kg |
| Standard Equipment | Grinding wheel :CBN (for HSS)×1 |
| Eleven collets: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13 | |
| Collet chuck:(Φ2-Φ14)×1 | |
| Option Equipment | Grinding wheel :SD (for Carbide) |
| Collets: Φ2,Φ2.5,Φ3.5,Φ4.5,Φ5.5,Φ14,Φ15 | |
| Collet chuck:Φ15 |
Details:
MR-13A
DRILL BIT SHARPENER
More than10 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATIONStill use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results
INSISTING ON ORIGINAL DESIGN FROM CHINA
Lip relief angle grinding Point angle griniding
10 SECONDS FAST GRINDING, MAKE DRILL RE-USE
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO DRILL GRINDING.
EASY TO DO THE DRILL SETTING
According the diameter of the drill to adjust the scale, the operation steps are clear.
High precision and high efficiency.
EASY FOR DRILL GRINDING
According the parallel line of the grinding hole, insert the chuck, rotate left and right.
It can be finished at one time.

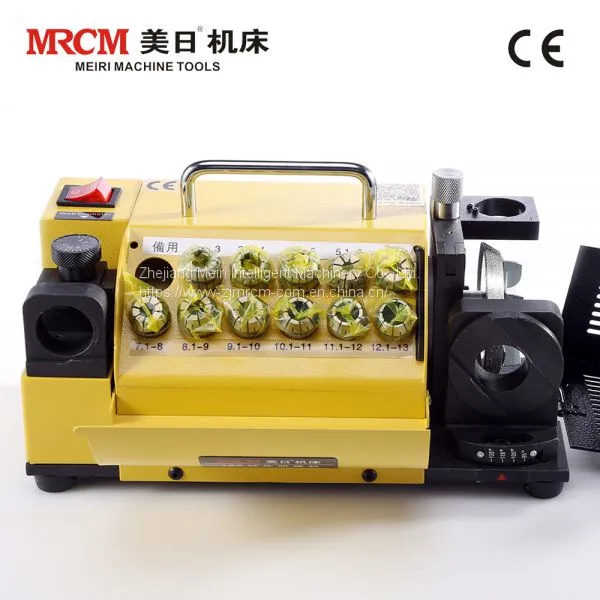

Standard accessories:
| ||
| Collets ×11 pcs (Φ3-Φ13mm) |
Grinding wheel ×1 piece Standard is CBN for HSS material |
Collet chuck ×1 piece |
|
||
More products:
| ||||
| DRILL BIT SHARPENER | END MILL SHARPENER | CUTTING MACHINE | SCREW TAP GRINDER | DRILL BIT GRINDER |
| ||||
| CHAMFERING MACHINE | CUTTER GRINDER | LATHE TOOL GRINDER | SAW BLADE GRINDER | BAND SAW BLADE ...... |
| ||||
| Permanent_Magnet_Lifter | SUCKER | VICE | TAPPIING MACHINE | TOOL GRINDER |
EXPORTING PACKAGE, SAFE AND STABLE
TAIZHOU MEIRI NEW ENERGY CO., LTD., a manufacturer specialized in developing & producing small special-purpose tool grinders, precision machinery tools. Main products include: CNC tool grinder, drill bit re-sharpener, end mill re-sharpener, screw tap re-sharpener, lathe tool grinder, saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, air tapping machine, electric tapping machine, electric discharge machine, etc.
From research, development, management to sales, we implement the ISO 9001 quality control system strictly, continuously inventing, improving our management and ecnomic performance, providing professional and high quality products to satisfy and serve our globe customers' needs.
We have participated in more than 800 professional exhibitions. Our products have been applied for 41 national patents, gained CE certification.
CUSTOMER WITNESS:
1.What is your advance? A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
