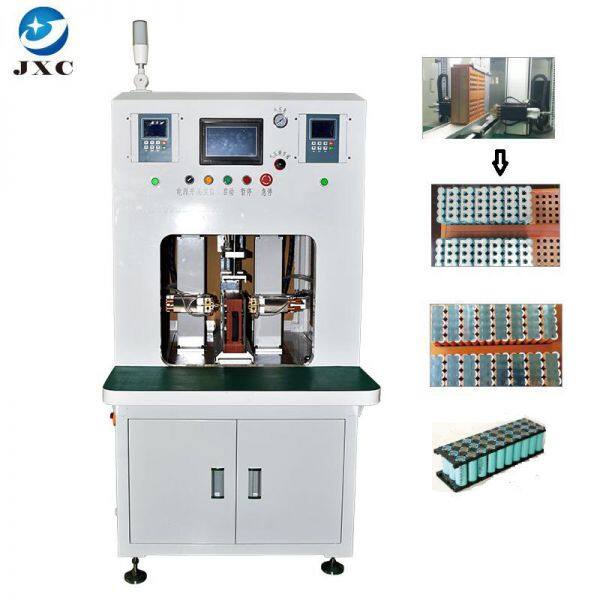

Factory Offered Cheap Spot Welding Equipment for 18650/26700 Battery Twsl-700

Factory Offered Cheap Spot Welding Equipment for 18650/26700 Battery Twsl-700 photo-1

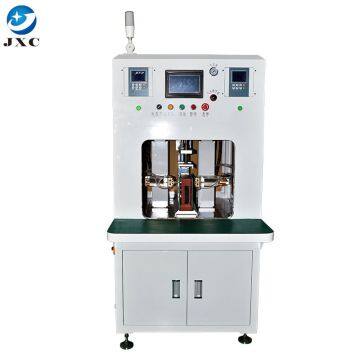

Factory Offered Cheap Spot Welding Equipment for 18650/26700 Battery Twsl-700 photo-2
Factory Offered Cheap Spot Welding Equipment for 18650/26700 Battery Twsl-700 photo-3
Factory Offered Cheap Spot Welding Equipment for 18650/26700 Battery Twsl-700 photo-4
Factory Offered Cheap Spot Welding Equipment for 18650/26700 Battery Twsl-700 photo-5
US$ 13968 - 15555 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JXC/TWSL
Place of Origin:
China
Model Number:
TWSL-700
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
7 days
Brand Name JXC/TWSL
Place of Origin China
Model Number TWSL-700
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty ONE-year FREE local service and FREE operation training in India!
Weight 230kg
Voltage 220V/380V/50Hz

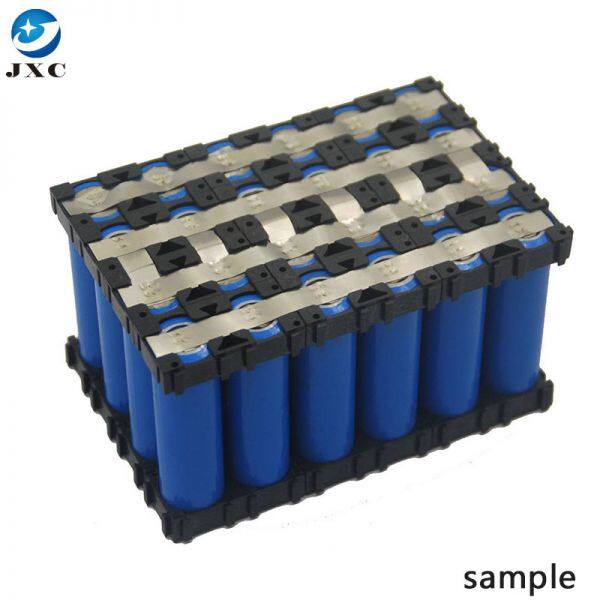

Usage 18650/26650 lithium battery spot welding
Condition New
Power(W) 3KW
Dimensions 700*1500*920mm
Max. Welding Thickness 0.08-0.3mm

Product Features:

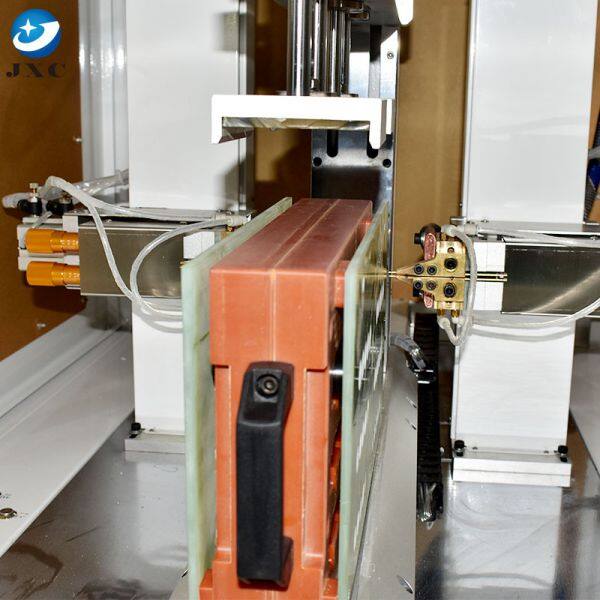

1>Machines which automatically Weld Nickel Sheet to Battery Cell Electrode.

2> Used for battery factories automatical production in power banks, laptops and ebikes, etc.

3> Do 2000pcs welding per hour.

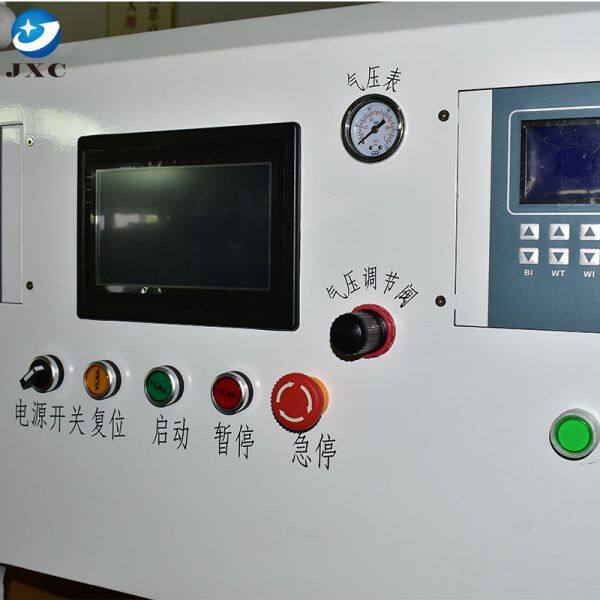

4> Touch screen operation, easy and fast responding.

5> 0-1 worker to operate the machine, fast and with great efficiency.

     Can be connected to other machines to proceed automatically.

6> Air cooling, manual programming & CAD drawing input available.

7> Overseas sales office in New Delhi, India.

8> 12 months warranty and life-time maintenance.

Power supply: 220V, 50HZ, 3.6Kw
Use pressure:0.3-0.8Mpa
X Module travel:0-350MM maximum 18 cores
Y Module travel:0-135MM maximum 7 cores
X-axis emission batteries:18PCS within
Y-axis discharge batteries Number:Within 7 lines
Dimensions:L1300 * W750 * H1300MM
Machine weight:150KG
Productivity:6 & 16 string, 5 & 16 strings, strings 4 & 16,
3 & 16 series, about 2000 batteries/ hour


Power:10KVA (max)
Input Frequency:50/60Hz
Input voltage:220VAC
Input gas source:7-8 Bar (kg / cm)
Primary current:5-30A
Primary short-circuit current:1500A
The whole structure:Integrated structure
Welding arm structure:Telescopic swing control
Electrodes to the body distance:100 mm (Scalable adjustable)
Cylinder diameter:20 mm
The number of pulses:  0-9
Pulse energy level:0-99
Automatic compensation range:+ 40V - 40V
Panel digital display:7-segment LED display
External dimensions:445 * 224 * 343 mm
Gross weight:42 kg




Packaging & Shipping
*Be Packed by Wooden Box
*By Air:7-10days to arrival
*By Sea:15-40days


Payment Method

T/T,Wire Transfer,Western Union,
30% or 50% deposit or full payment, it depends

Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.

After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided



Company Information

Shenzhen TWSL New Energy Battery Equipment Co., Ltd is a 12-year expert in factory automatic production machines. Our main products are used in manufacturers of batteries for power bank, laptops and cell phones. Besides the batteries pack & spot welding, we also supply low pressure injection machines at all kinds of customers' requests. With our machines, global factories can speed up their production rates and greatly enhance their business expanding efficiency. We can give advices about how to open your own factories. So far we have 8 engineers and 2000 square meters workshop. We can help you to build your own factory and expand your business! Any interests, please feel free to contact us!


Welcome to view our machines video on Youtube:

/playlist?list=PLbU_mJdSMmbCfi5JdyTBy5yZQInAFHgDz


We've gained more than 75% market shares in China with leading technology and service, and are trusted by world giants like BYD, SCUD and Desay, etc.

For successful cases, we recommend India INTEX AND ICCON, who have co-operated with us very recently.



FAQ

Q: What can your machines do?

A: Make the batteries production automatically.

    Save the factory owner's invest and better the efficiency.


Q: What kind of items can your machines produce?

A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.


Q: How can I see samples or know more about the machines?

A: We have real time video on Youtube.

    Please contact our sales to get the links.

    Indian friends can visit our New Delhi sales office and see the machine by yourselves.


Q: Do you have a MOQ for orders?

A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine.

     Our factory MOQ is 1 set.


Q: Do you have any warranty or certifications?

A: We provide 12 months warranty for the machine, and life-time after-sales maintenance.

    All of our products are with CE certifications and are good to export worldwide.


Q: I am a new factory owner. Can I get some advices about automatic production?

A: You can tell us the ideal turn-over you want for your new factories.

    Our professional engineers and sales shall provide you with budget and costs how much it takes.

Looking forward to establish good business relationship with you in the near future,any question,please contact me
