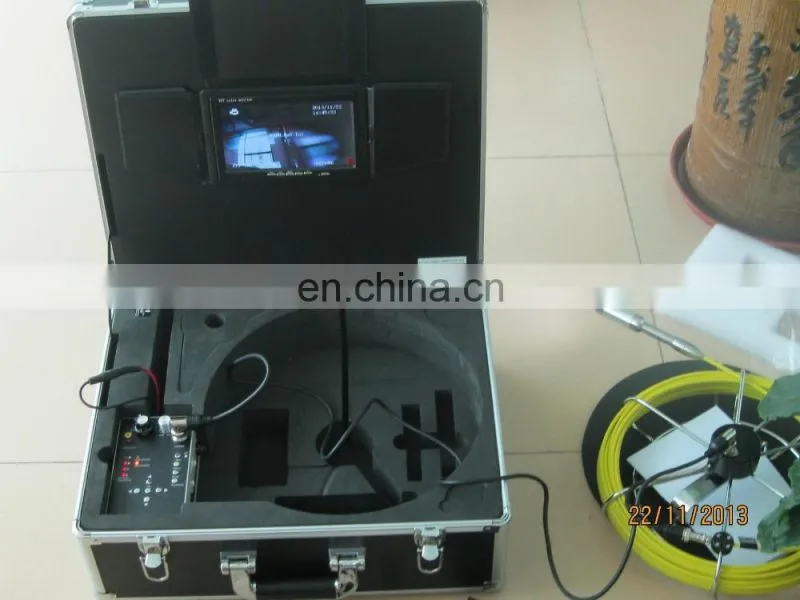

sewer drain pipe camera TEC-Z710DL pipe video camera
Specification
camera
1. camera size: 23mmx140mm front size:65mm |
2.Camera case material: stainless steel house stainless steel 304 |
3. Camera glass material: sapphir glass |
4. sensor size: 1/4 inch |
5.Total Pixels: PAL: 720X576 NTSC: 720X480 |
6. view angle: 120°. |
7. camera light: 12PCS white LEDS. |
8. Special gold point touch connector |
9. waterproof: IP68 |
10.camerawork current: 100MA camara power supply:DC 12V |
11. LEDS ADJUASTABLE. |
12.Work temperature:-10°C-50°C |

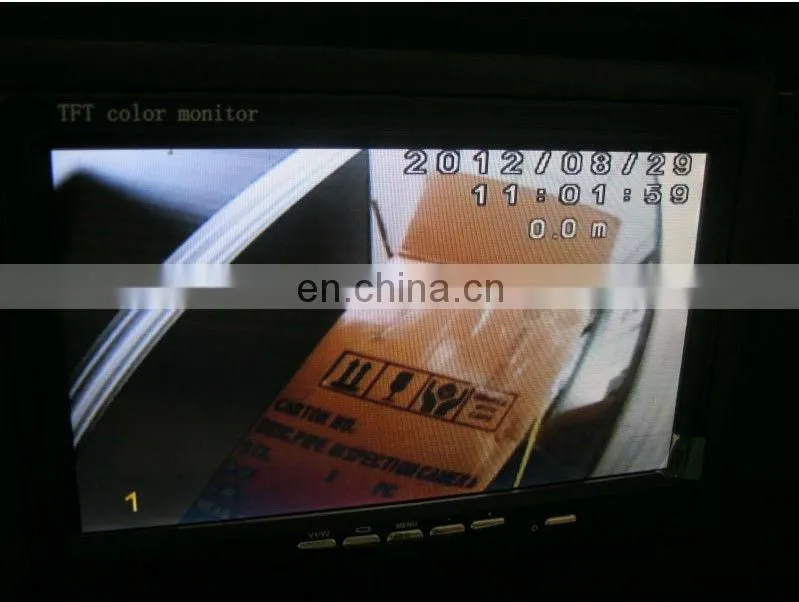

monitor
1. monitor size: 7inch TFT color monitor
2. monitor Total Pixels:1440X234
3. monitor power supply:DC 12V
4. osd language: english
5. up,down left,right adjustable.
6. 16:9 4:3 model
7. sunshade includ
8. waterproof connector
9. Work temperature:-10°C-50°C

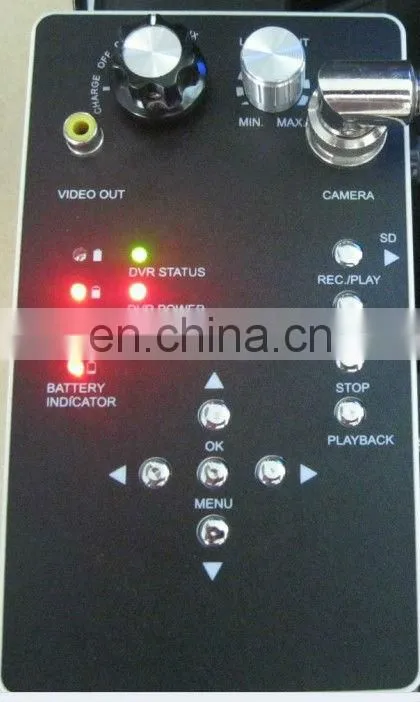

DVR
1. DVR power supply: 12V
2. DVR work current: 200MA
3. storage medium:SD card (max 32G)
4. dagital clock and dagital calendar
5. DVR Total Pixels: 720X576 (D1)
6. picture snap and movie record
7. movie format: AVI
8. audio record (yes)
9. double earphone output
Audio input unit
1. micphone
2. clip type
512HZ FM transmitter
frequency: 512HZ
distance: 5M
modulation: FM

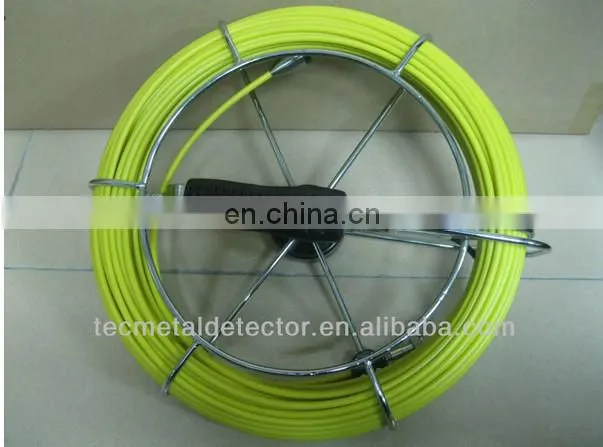

Cable wheel
Cable size:320MM(diameter)X110(h)
Wire material:fiberglass rod
Fiberglass length:20M( standard)
Fiberglass diameter:4.8MM
Fiberglass color:yellow
battery
Battery pype: 12V 4000MAH rechargable li –ion battery(18650)
Used time : 7 hours.
charger
input: AC90-260V output: DC 12V 1000MA
Output cable length:1.5M
DC plug diameter :2.1MM
box
box material:fire protection
Box size:48cm x 39cm x 19.5cm
SKIDS size
1. SKIDS1: Φ40MM
2. SKIDS2 :Φ80MM
Weight
net weight:7.5KG
gross weight: 12KG
Packing
aluminium box/ABS box
aluminum box
ABS box
Carton box
