Guchen Thermo Closed Insulation Truck Box with 4900 x 2200 x 2130mm

GUCHEN THERMO Refrigerated Box Body Specification

1. Structure: Fiberglass+PU foam+Fiberglass.

2. Material: Thickness of the sandwitch panels are 100mm seperately. The fiberglass is 2.0mm thick. Theinterlayor polyurethane foam density is 42-50 kg/m³.

3. Aluminum profiles and 304 stainless steel wrap angle.

4. The Locksets and Hardwares are all made of 304 stainless steel.

5. The floor panel is also 2.0mm Fiber Glass.

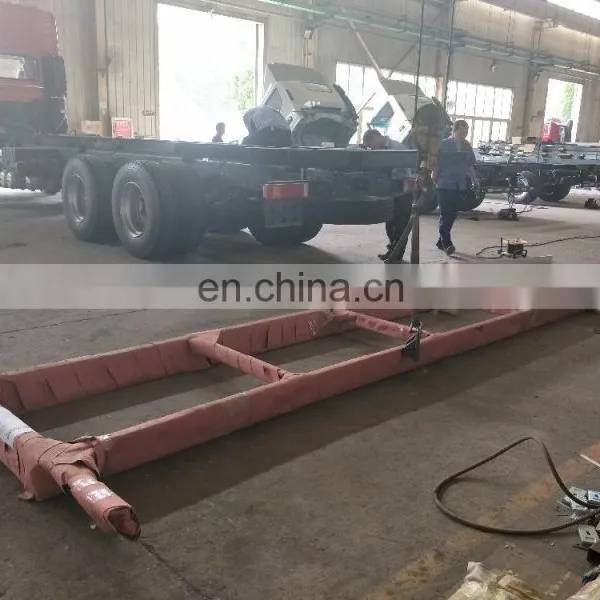

6. Ribbed steel sub-frame, and all necessary vehicle accessories.

Frequently Asked Questions

How to select a suitable refrigerated or insulated truck body from Guchen Industry Co., Ltd. products series?

When you are considering to purchase the refrigerated or insulated truck body, here are questions that the company will need to know before we make an most considerated off for you distinguished customers.

1. Q:  What is the basic information we should know about the desirable refrigerated truck body which you are planning to purchase?
A: We have to know the external dimensions of the truck body you want like the Length, Width and the height. Besides, we also need to know the thickness the panels.

2. Q:  What is the special requirements that you want for the refrigerated truck body?

A: It would be much better if you can tell us your special requirements of the refrigerated truck body, such as: what kind of floor you want, for our standard configuration is FPR floor; do you want side door? one opening side door, or double opening sides door? Besides, you can also tell us your special requirements about the sub-frame, the profiles, the thickness of the FPR or the floor plate, etc.

3. Q:  What Kind of goods to be transported that you want for the refrigerated truck body?

A: You may be want to transport live chick, pork block, vaccine, ice cream, etc. Then we will have our meat hook truck, vaccine truck, ice cream truck and so on for your reference.

4. Q: What form can be provieded for the refrigerated truck body?

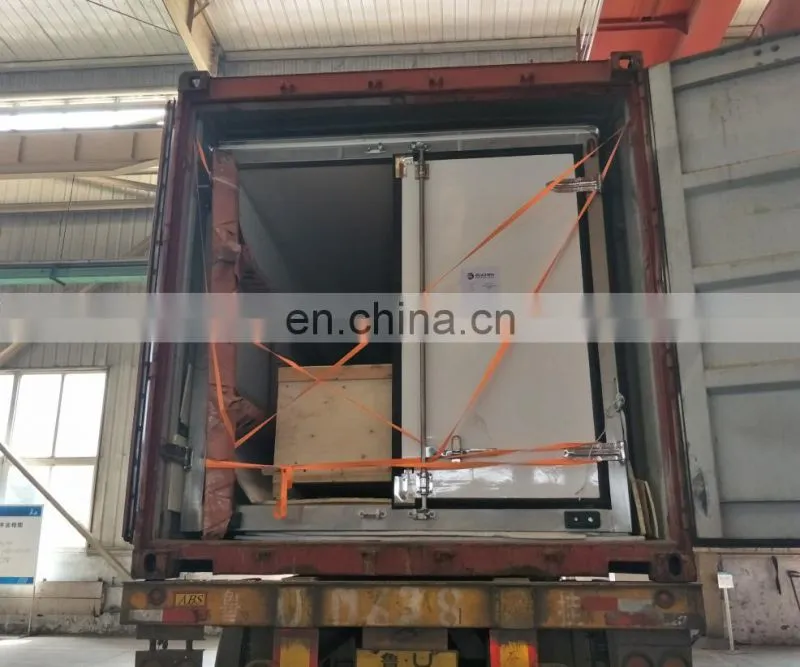

A: We can provide the refrigerated truck bodies by CKD (complete knocked down) and CBU (complete box-build unit) forms which is according to customers' demand, please view the packing picturs as followings.
