Backing: PVC film
Adhesive: Nature Rubber, Pressure Sensitive Adhesive
Thinkness: 0.11mm ~ 0.50mm
Width: 14mm ~ 1250mm
Length: 4m ~ 50m
Elongation at break: 150% ~ 220%
Tensile Strength: 20~30N/10mm
Peel Strength: 1.6N/10mm
Use temperature: 0~80°C,120°C
Use voltage: 600V
Package: cellophane, shrink, blister card, etc.
Feature:
- For insulating and binding electric wire protection, electrical insulation protection
- High pressure-resistance, insulating
- Unique glue-formulation, high adhesive quality
- Water proof and Acid-proof alkali
Application:
- Electrical cables insulating
- Cable wrapping and bundling
- Color coding, directional marking, marking out rehearsal areas
- Cable reinforcing and protecting
- Electrical repair
Recommended Uses :
- Electric insulation below 600V.
- Insulating wrapping of electric wire and cables.
- Marking of electric wires and cables.
- Can be used indoor and outdoor.

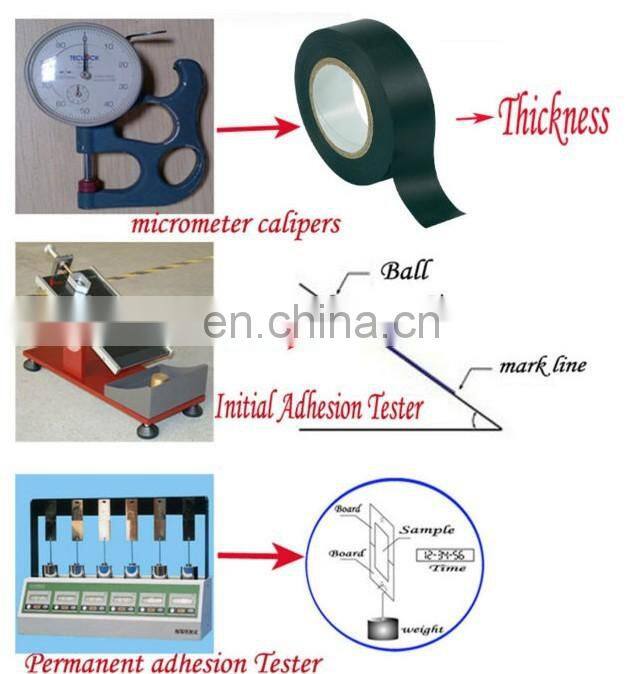

Technical Data sheet of UM 130 | |||
Property |
Unit |
Data |
Test Method |
Total thickness |
mm |
0.13 |
ASTM D1000 |
Tensile strength |
N/cm |
20 |
ASTM D1000 |
Elongation |
% |
200 |
ASTM D1000 |
Adhesion strength |
|
|
|
to steel sheet |
N/cm |
1.5 |
ASTM D1000 |
to backing |
N/cm |
1.5 |
ASTM D1000 |
Ratared Voltage |
V |
600 |
UL510 |
Temperature-resistant Grade |
°C |
80 |
VW60360(LV312) |
Flame Resistance |
S |
<2 |
VW60360(LV312) |
Heavy metals content |
|
|
|
Lead, Cd content |
ppm |
30 |
US EPA3052 |
Mercury ,Chromium |
ppm |
10 |
US EPA3060A |
PBB, PBDE content |
ppm |
10 |
US EPA3540C |

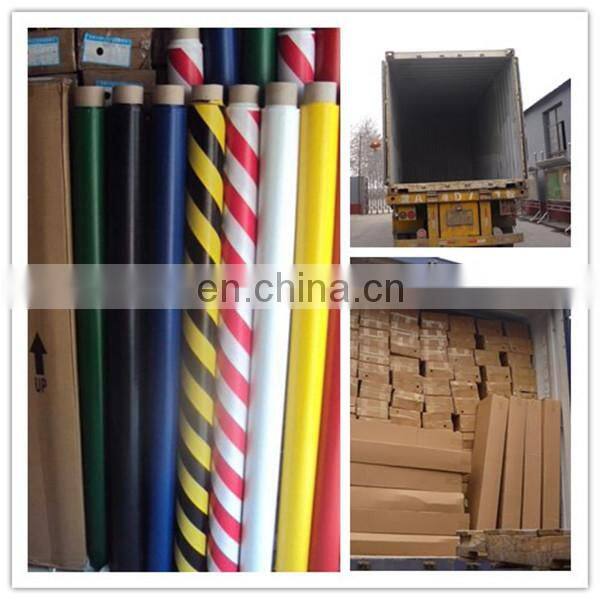

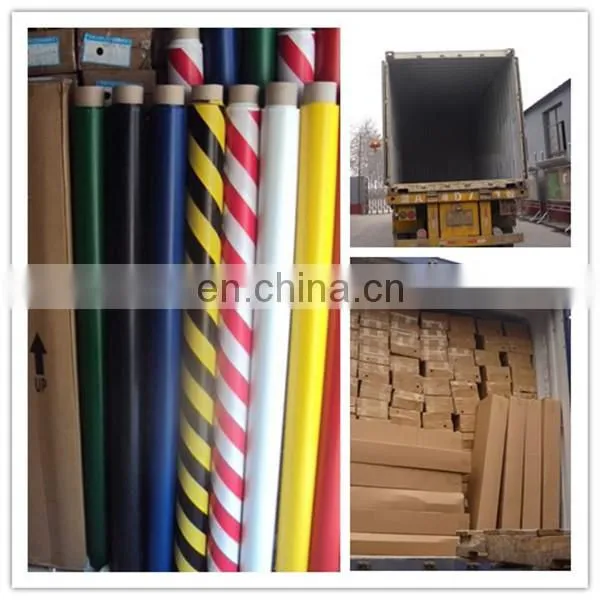

Packing:
12rolls/10rolls/9rolls/6rolls/4rolls/2rolls per carton
paper core printed OK
carton printed OK
Delivery:
payment term: 30% T/T deposit in advance, 70% T/T against B/L copy, or 70% L/C at sight
delivery time: 30 days after deposit
port of loading: Tianjiin Xingang

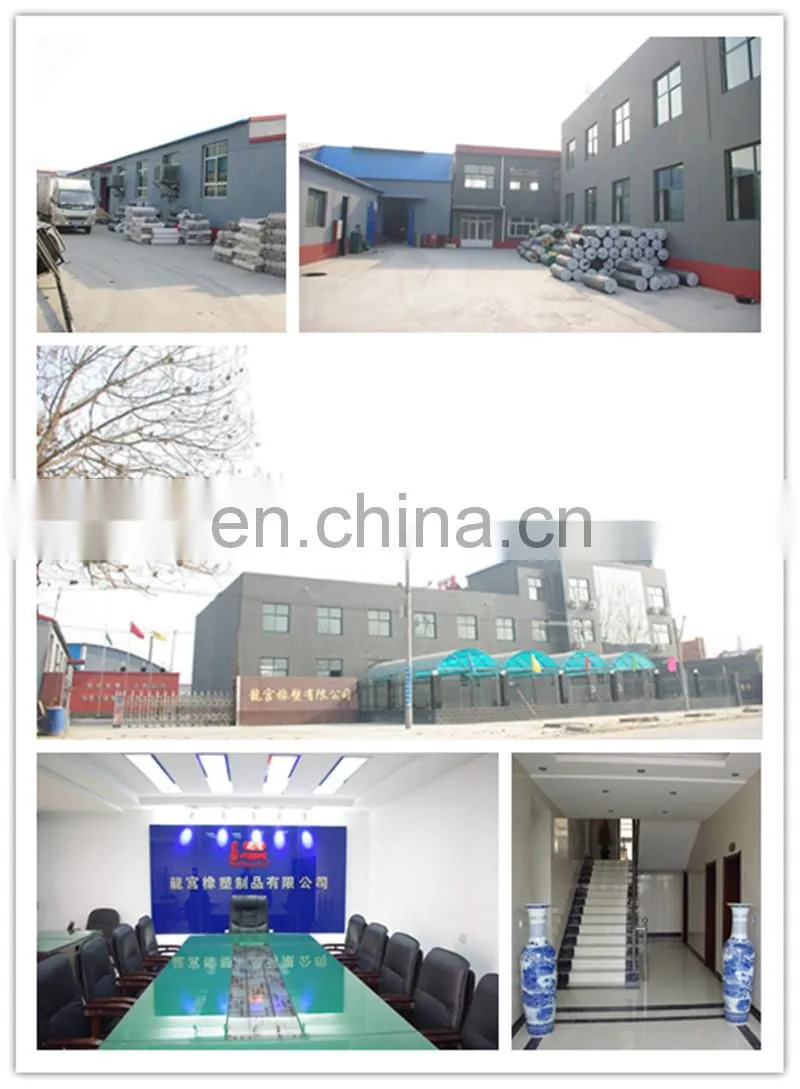

Shijiazhuang Longgong Plastic Products Co., Ltd.
Ms. Rachel
Factory: Longgong Area, Jichang Road, Gaocheng, Shijiazhuang, China
Office: B-1105 No. 1 Building, Zijing Square, 158 North Ping'an Street, Shijiazhuang, China
Phone: 86-15031195529
Fax: 86-311-86986738
