Forged steel socket CLEVIS
key of socket clevis
1. material : forged steel
2. surface : hot dip galvanzed
3. Hex bolt with nut and split pin or pin with washer and split pin
4. slot for W security clip in socket clevis
5. Minium failing load : 70KN FOR SIZE 16MM socket clevis
6.Security clip is stainless steel
7. CE AND ISO certificated
Socket clevis of basic information
| Material | Forged steel or iron |
| size | 16mm 20mm 24mm |
| Min failing Load | 70kn~190KN |
| Surface treatment | HDG |
| Application | Power line |
| Package | plywood case |
| MOQ | 100PCS |
| Standard | BS3288 OR GB |

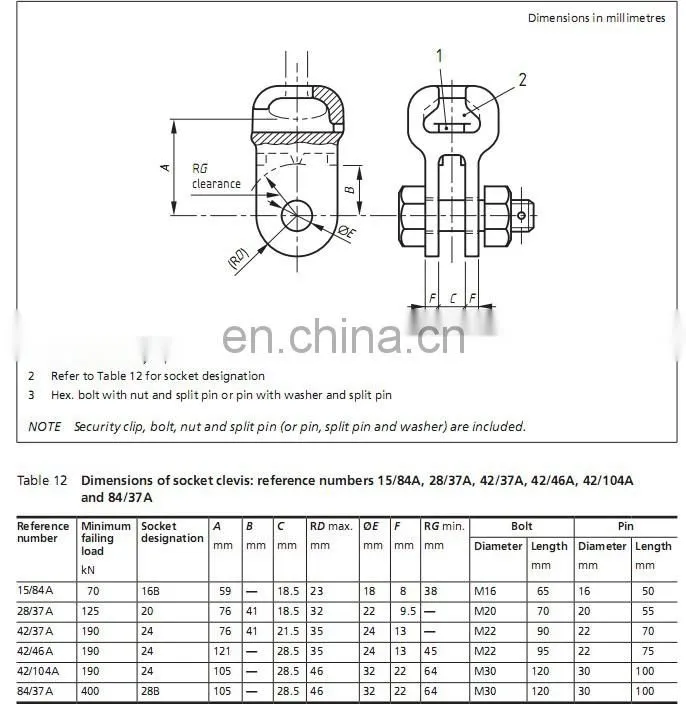

socket clevis specification :
Other detail information of socket clevis
1. Payment term: L/C, OR TT.
2. Packing: wooden case W/ pallet or according to your special requirement.
3. Delivery time: I month.
4. 160 workers , 1 houre reach to Qingdao port and airport , 10 years experience for the socket tongue 20000 square meter for workshop

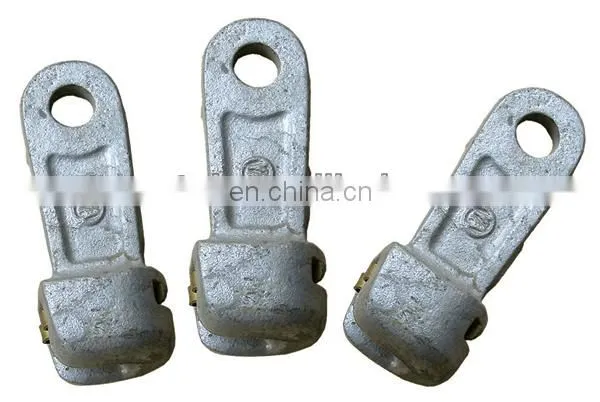

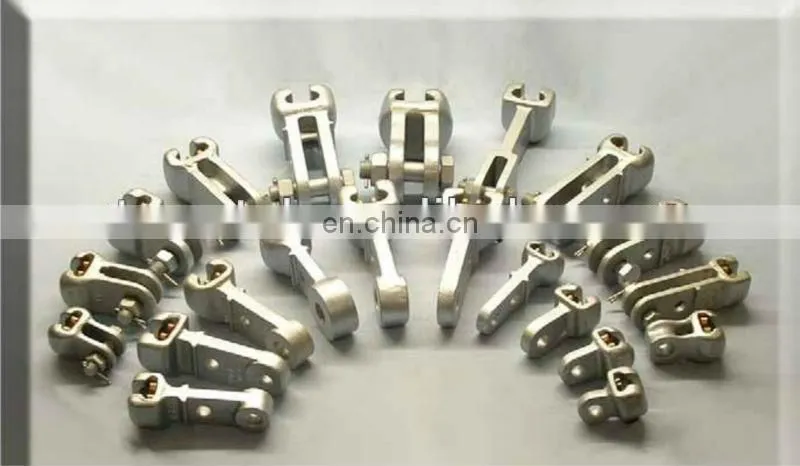

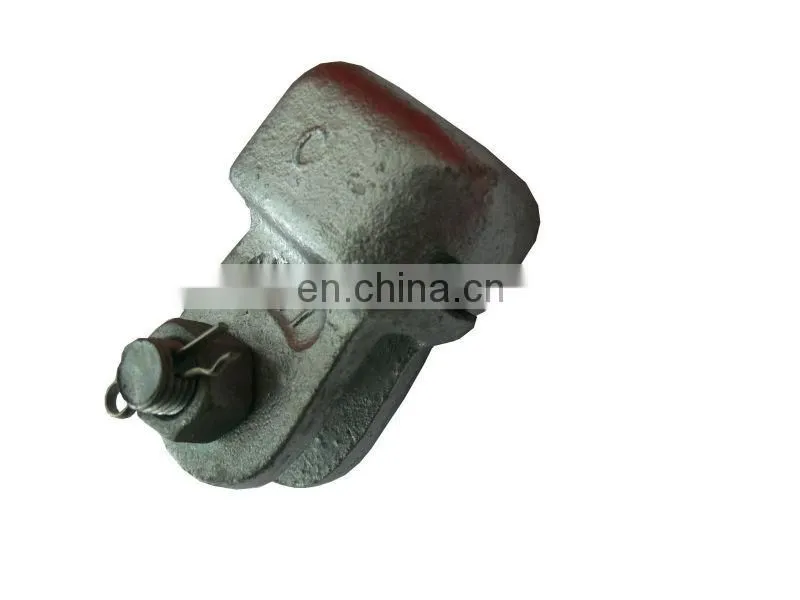

Socket clevis pictures
We can make the sample according to your drawing.If you need sample of our existing product,most of the time we can offer the sample for free.If you want to try a new product,we are your best choice ,because we can design the drawing for your reference.You are always welcomed here for a visit and inspection.
