Specifications

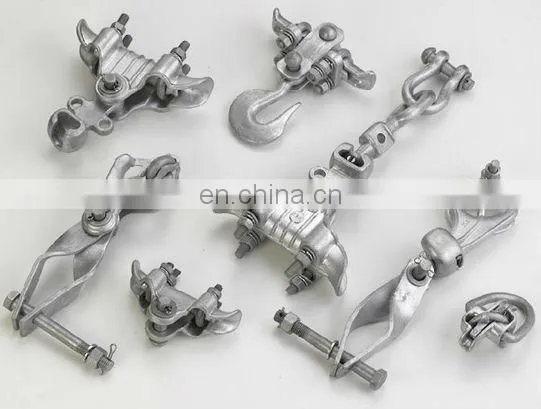

1Name:Overhead Line fittings HDG CABLE SUSPENSION Clamp2.Materical:Mild Steel
3.Surface:HDG
The product Detial
Quick Details
| Place of Origin: | ShanDongChina (Mainland) | Brand Name: | NTS | Model Number: | 022 |
| Material: | Mild Steel | Structure: | Suspension Clamp | Standard or Nonstandard: | Standard |
Packaging & Delivery
| Packaging Detail: | Paper Box in Wooden boxes or follow the customer's advice |
| Delivery Detail: | 15~25 Days |
Specifications
This Clamp are used to hang conductor or ground wire through insulators or link fitting to tower arms or substation structures.
The meanings of the letter & arabic figure in the catalog are shown as follow:
X-suspension clamp
G-fixed
S-double clamp
U-U bolt
J-strength
H-aluminium alloy
F-corona control
K-under axle type
T-envelope type
A-with a socket-clevis
B-with U clevis
C-hang-down type
The suspension angle of suspension clamps is not less than 25°c,the radius of curvature is not less than the dia.of installed leads by 8-10,and the percentage of the grip on different kinds of leads to the calculating capability of snap shows in following table.
The percentage slip strength of suspension clamp to rated ultimate strength of conductors is shown in the following table.
As the suspension clamps are used to AAC and ACSR,the conductor may be wound by aluminium tapes or tapes or preformed armoyr rods for protecting these taps or rods are included in the diameter of suitable conductor.
Suspension Clamps (Corona-proof type)
