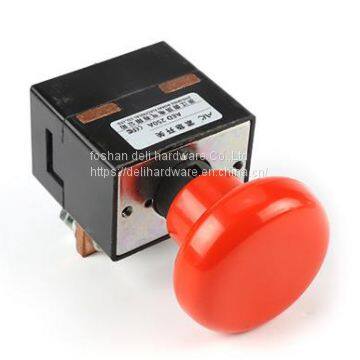

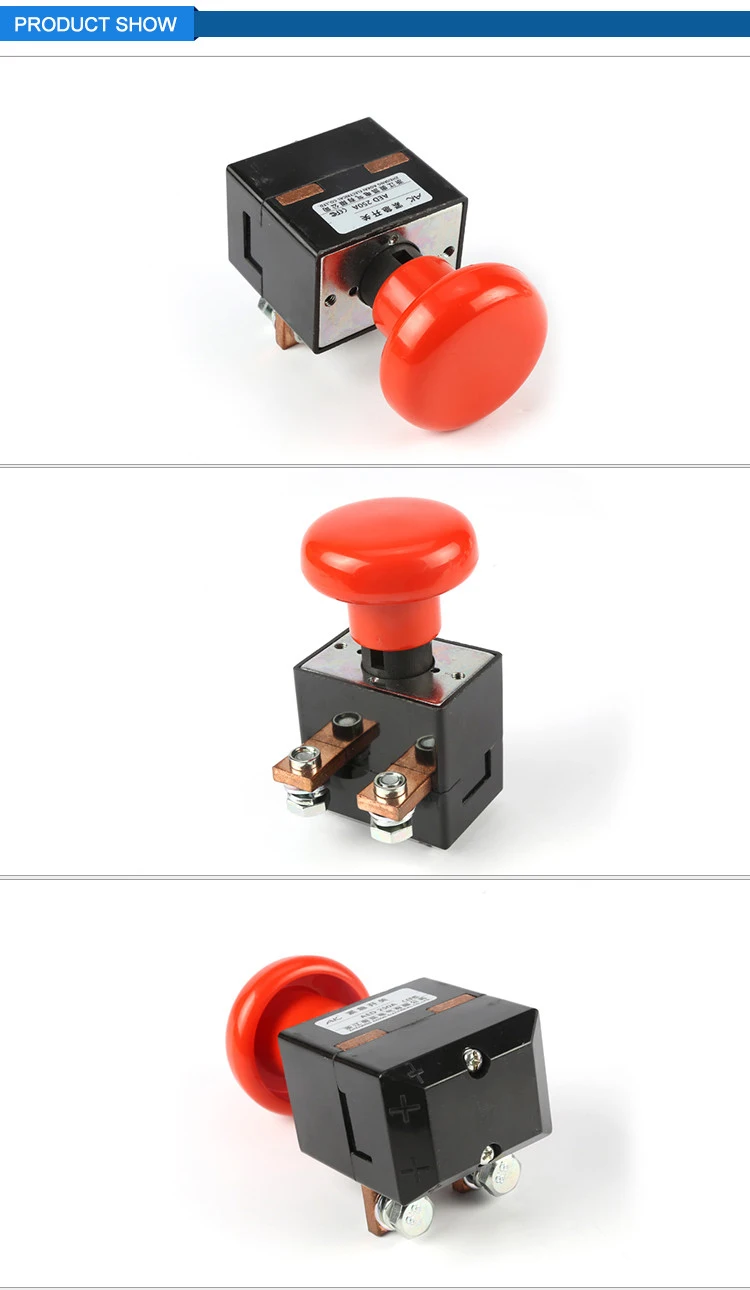

AED250A Stop Button,Push Button Switch,emergency Stop Button
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2000
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
3 days
Related Products
-
220VAC Flush Red and Green Push Button SwitchNegotiableMOQ: 10 Pieces -
Double Pole Mini Self-locking 2 Position Push Button SwitchNegotiableMOQ: 10 Pieces
-
16mm 3A 250V AC Emergency Stop Switch / Spring Push Buttons SwitchNegotiableMOQ: 10 Pieces
-
Emergency Stop Mushroom Push Button Switch XB2-BS542 ZB2-BE102CNegotiableMOQ: 10 Pieces
-
Arcade Parts Rectangle Waterproof Led Mini Push Button SwitchNegotiableMOQ: 10 Pieces
ED250A stop button,Push Button Switch,emergency stop button
SPECIFICATION
| Rated Voltage | ≤80V | ||||||
| Contact Circuit Rated Load Current(A) | 250A | ||||||
| Typical Voltage Drop Across Contacts per 100A | ≤80mV | ||||||
| Insulation Resistance | 50MΩ | ||||||
| Electric Strength to Resist | 50Hz/60Hz 1000VAC/1min | ||||||
| Overload Current | ≤7Ie, ≤1s | ||||||
| Electric Life | ≥10000 times | ||||||
| Mechanical Life | 50,000 times | ||||||
| Work Specification | Continuous | ||||||
| Contact Form | 1NC | ||||||
| Contact Material | AgCdO/AgCuO | ||||||
| Technical Specification | GB14048.4-2010 | ||||||
USAGE ENVIRONMENT
| Altitude | less than 2Km | Amblent temperature | -25~+55℃ |
| International protection | IP50 | Installation type | III |
| Way to install | Any | Vibration | 2.5g(5~50)Hz |
| Impact | 50g,11ms(Half-sine wave) |
EMERGENCY DISCONNECT EMERGENCY DISCONNECT EMERGENCY DISCONNECT EMERGENCY DISCONNECT
SCHEMATIC DIAGRAM
EMERGENCY DISCONNECT EMERGENCY DISCONNECT EMERGENCY DISCONNECT EMERGENCY DISCONNECT

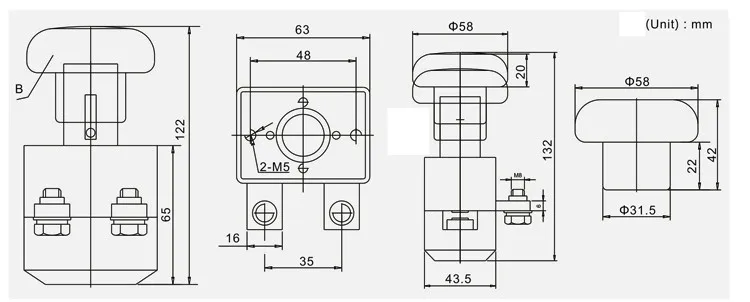

INSTALLATION DIAGRAM
EMERGENCY DISCONNECT EMERGENCY DISCONNECT EMERGENCY DISCONNECT EMERGENCY DISCONNECT
