Sm-Co S28E 40x22x4mm prism
1. How Rare Earth Magnets are Made
Mining => Grinding and Mixing the Alloy => Pressing => Particle Alignment => Sintering => Milling and Cutting => Plating/Coating => Magnetization
2. Grades
| Grades | N35-N52 | N35M-N50M | N35H-N48H | N35SH-N45SH | N30UH-N40UH | N30EH-N38EH |
| Working temperature | 80°C/60°C | 100°C | 120°C | 150°C | 180°C | 200°C |
- The grades like N48-N52 could meet your requirement on strong power
- Standard one like N35 or N38 is okay for your normal applications
- If you have requirement on the working temperature, please note it.
3. Shapes and Sizes
| Block / Bar | Length x Width x Thickness |
| Disc / Cylinder | Diamter x Thickness |
| Ring | External Diamter x Internal Diameter x Thickness |
| Irregular | According to the design |
4. Coatings
For SmCo Magnet, no coating is need for the protection purpose.
5. Orientation
Oriented through thickness or according to customer's application
6. Applications
Sensors, motors, rotors, wind turbine,wind generators, speakers,loudspeakers, etc.

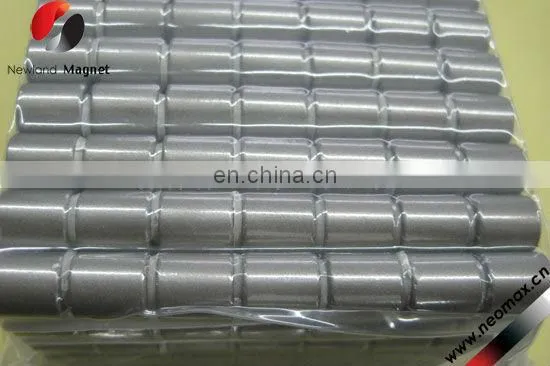

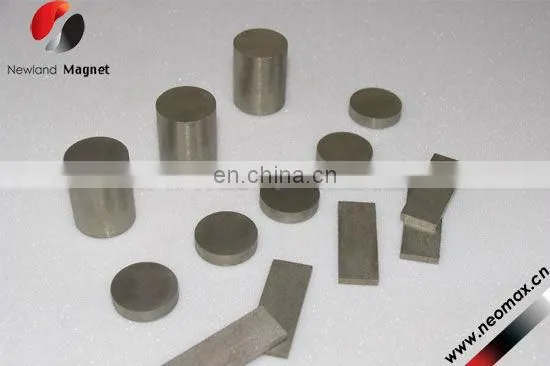

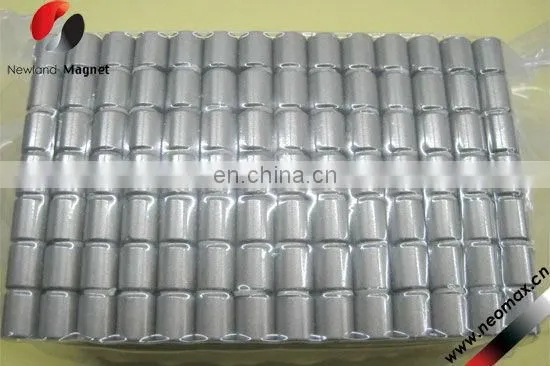

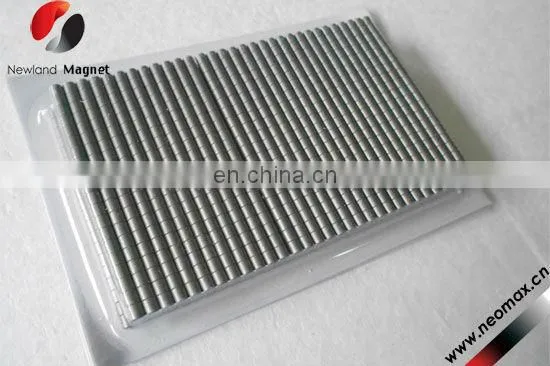

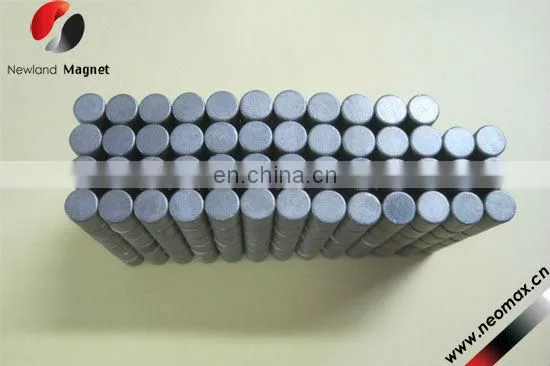

7. Photos

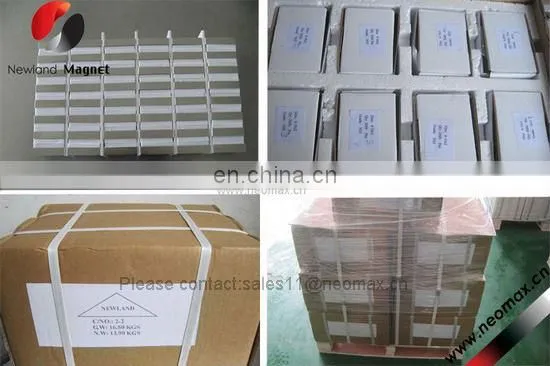

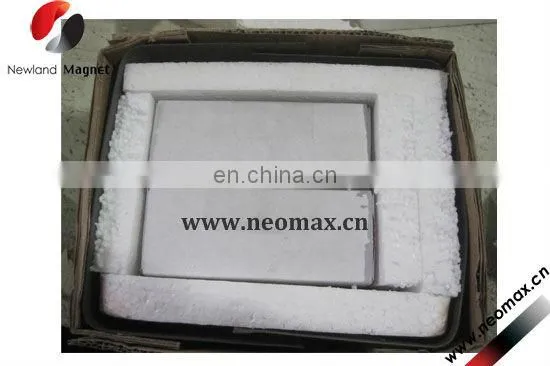

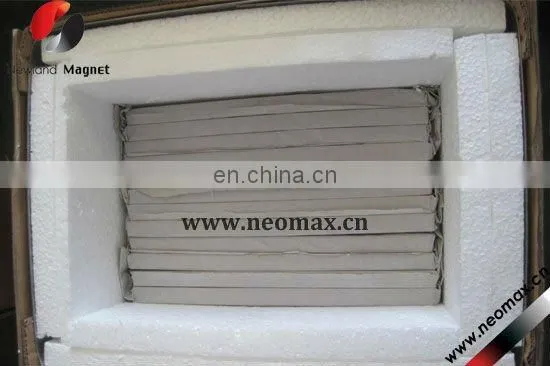

1. Standard Air Way package(filled with iron sheets and foams to shield magnetism)
2. Standard Sea Way package(packed in carton and then put on a pallet)
3. Customized package is available
1. Sample order, small order and mix ordera are available
2. OEM service available
Newland manufacture and export magnet for around 10 years.
There is a magnet factory( Ningbo Newland Magnet Industry Co.,Ltd ),
magnet assembly factory( Ningbo Newland Magnetics Co.,Ltd )
and a magnet trading company( Ningbo Newland International Trade Co.,Ltd ).

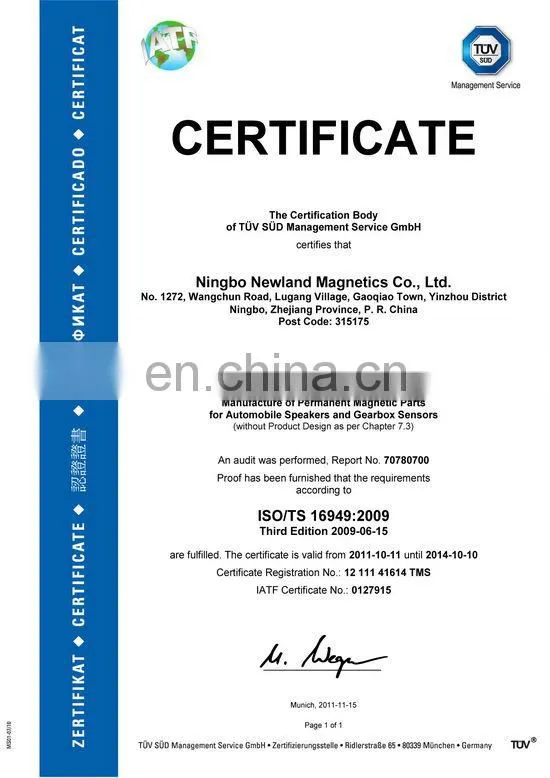

All products are ISO and TS16949 approved. The main market is Europe and US. Newland attend SPS and CWIEME in Germany every year since 2010. In 2013, Newland also attend CWIEME in India.
For more details, please visit our website on .
To quote, could you please inform the following information?
1) General magnetic properties ( your maget type and grade, e.g. NdFeB N35)
2) Size/Dimension,
3) Tolerance, (if you do not specified your requirement, our normal tolerance is +/-0.1mm for NdFeb)
3) Direction of orientation
4) State of Orientation(need to be magnetized or not before shipping)
5) Quantity
