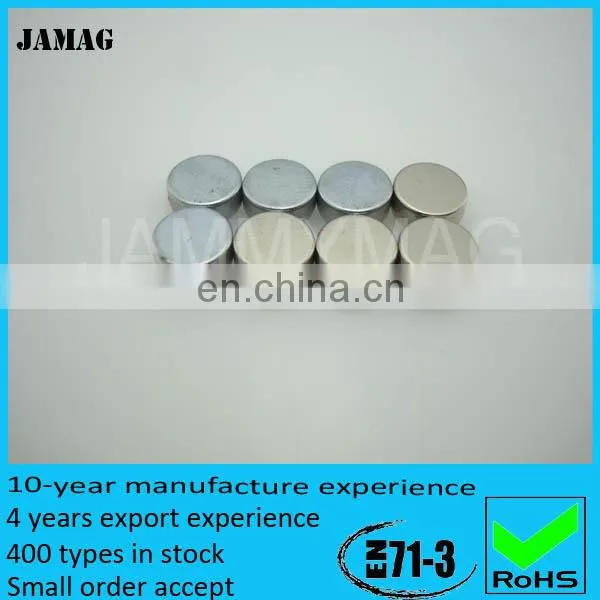

JMD10H0.6 Offer m&m Magnets
1 More Direct Information of m&m magnets
1.1 The types of magnet we can supply
1.2 The size of magnet we can supply
1.3 The coating of magnet we can supply
1.4 The Grade of magnet we can supply
1.5 Magnetised direction
m&m magnet magnetise direction starts with Axially, Diametrically(Radial).
1.6 Physical performance of m&m magnet
Physical Performance of Sintered Neodymium Magnet | ||
Parameter |
Unit |
Reference |
Density |
g/cm3 |
7.4-7.6 |
Vickers Hardness |
HV |
500-600 |
Resistivity |
μΩ·m |
1.4-1.6 |
Compressive Strength |
MPa |
1000-1100 |
Tensile Strength |
MPa |
80-90 |
Thermal Conductivity |
W/(m.K) |
8-10 |
Young's Modulus |
Gpa |
150-200 |
Vertical Thermal Expansion Coefficient |
10-6/K |
1-3 |
Parallel Thermal Expansion Coefficient |
10-6/K |
3-4 |
1.7 Manufacture Process
neodymium magnet | D25H3 High Quality Sintered N52 Neodymium Magnet | N52 neodymium magnet | neodymium magnet n52 | n52 neodymium block magnet | grade n52 neodymium magnets | neodymium n52 magnet | OEM | ODM | n52 neodymium magnet cylinder | OBM | Alibaba | Aliexpress | Google | magnet
1.8 Detailed Four Step Quality Control
m&m magnet comes with integrating quality control !
STEP 1: After sintering, the mould comes out. Test the size, tolerance and the property (BH(max), Br, Hcj, Hcb) of the mould, only the qualified products turn to next step.
Magnet performance standard: GB/T 13560-2009
Quality control: MIL STD 105E=ISO 28591=NF X 06 022, LEVELⅡ
STEP 2: After grinding, inspect the size and tolerance of the magnet with precision before coating, only the qualified products turn to next step.
STEP 3: After cutting the thickness, examine the tolerance of thickness, guass and pull force, only the qualified products turn to next step.
STEP 4: Recheck the coating, size and tolerance, surface of the magnet, exclude the unqualified (damaged, bad coating) pieces, then come to magnetizing and packaging.
2 More correspond Information of m&m magnet

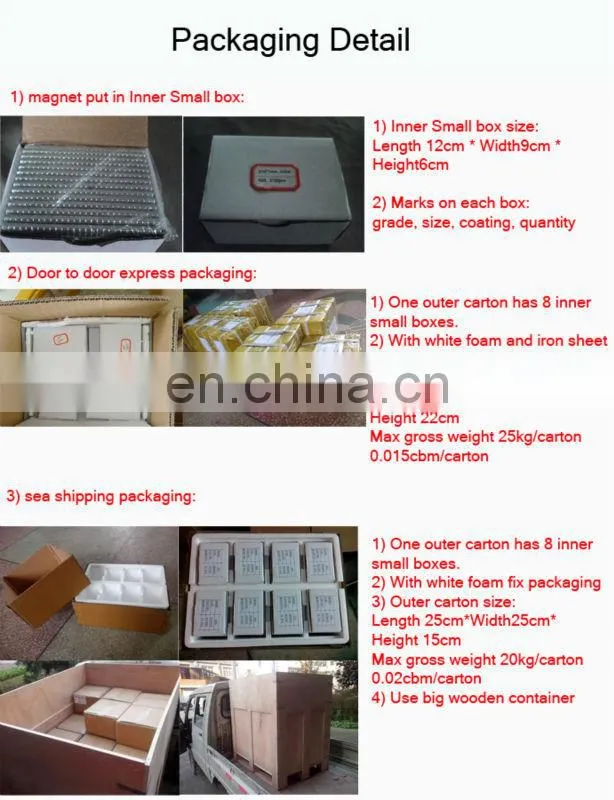

2.1 Package

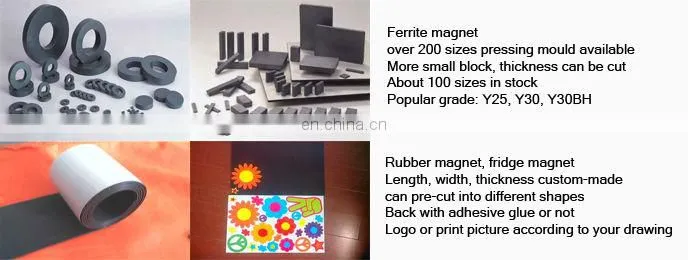

2.2 Over 200 sizes moulds and Over 400 sizes stock
Please check a small part of our stock types of Neodymium Magnet in website attached document !
Notes:
1) We can also provide the other different thickness sizes according to you !
2) We can also provide the other different middle hole sizes according to you !
3 Business and Economic Correspond Factor
3.1 Sample Policy
3.2 MOQ for formal orders
JAMAG-MOQ | ||||
types |
below 12mm |
below 25mm |
above 25mm |
special types |
Disc |
500pcs |
200pcs |
100pcs |
500pcs |
Block |
500pcs |
200pcs |
100pcs |
500pcs |
Ring |
500pcs |
200pcs |
100pcs |
500pcs |
Countersunk |
800pcs |
500pcs |
200pcs |
800pcs |
Button |
500pairs |
500pairs |
500pairs |
500pairs |
|
|
|
||
3.3 Payment Terms
A) Large amount payment: L/C, D/A, D/P.
B) Fast payment below
4 Our Service
Why Choose Jamag as your magnet product supplier: Fast reply, professional advise.
Great engineers manufacture great ferrite magnet products !
1) Prompt reply time: Office time (GMT+8), reply in 3 hours
Off office time, reply in 12 hours
2) Fast and strict Quality control and Delivery control
3) Neodymium magnet, 400 types in stock, serve for above 1000 customers, specialized in N35, N38 etc.normal grade magnets and high performance small size magnets.
4) ALIBABA qualified “Manufacture and Trading company”. 10 year magnet manufcture experience, 4 year magnet export experience.
5) Strong development capability of magnet with 3M glue, stainless steel hardware products, magnet with plastic products and other custom made magnet assembly.
6) Train service and timely feedback for mass production.
