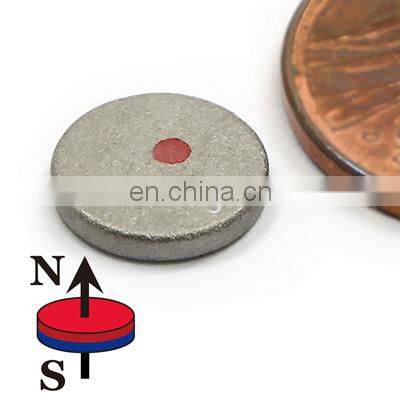

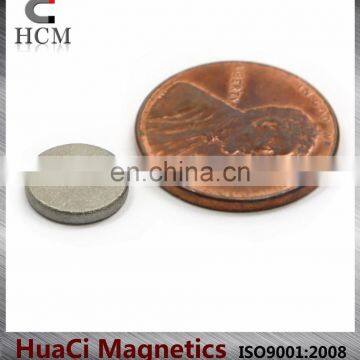

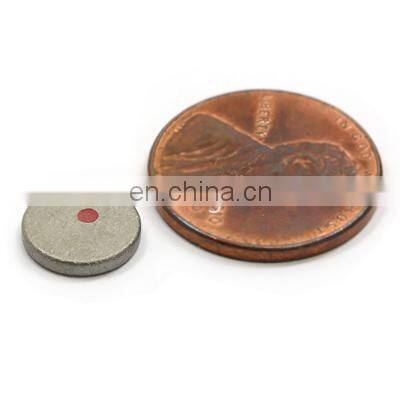

This disc SmCo magnet is made of Samarium Cobalt rare earth magnetic materials under ISO 9001 quality systems. The material is Sm2Co17 and the grade is 26. This magnet is axially magnetized so the N and S poles are on the flat surfaces.
SmCo magnets are comparable in the magnetic strength to neodymium magnets but have a higher working temperature. They are majorly used in the industries when the high temperature is present. There is no coating for this magnet.
The followings are the magnetic characteristics of this SmCo magnet,
- Br: 10.4 kGs
- Hcb: 9.8 kOe
- Hcj: 10.6 kOe
- (BH)max: 26 MGOe
- Maximum Normal Operating Temperature: 300 Celsius or 572 Fahrenheit
- Holding Force: Approximately 1.3 lbs.
- Pole Orientations: Axially magnetized, i.e. the N and S poles are on the flat surfaces.
- Applications: Holding, motors, generators etc. For crafting magnets, please choose neodymium magnets instead.
| Surface | Coating | Thickness (Microns) | Color | Characteristic |
| Zinc | Zn | 5~20 | Bright Blue |
The general corrlsion condition, protection for most products |
| C-Zn | Shinny Color | |||
| Nickel | Ni+Ni | 10~30 | Bright Silver | Excellent climate & salt spray resistance,is suitable for the pure envirnoment |
| Ni+Cu+Ni | ||||
| Nickel+Sn | Ni+Cu+Sn | 10~30 | Silver | Excellent climate & salt spray resistance |
| Gold | Ni+Cu+Au | 15~22 | Gold | Uses in the electronic installation and the upscale accessories |
| Epoxy | Epoxy | 10~30 | Black, Red, Grey | Well climate & salt spray resistance,uses in to request the higher anticorrrosion situation |
| Ni+Cu+Epoxy | ||||
| Zn+Epoxy |
We are persistently pursuing our goal, which is "A never-ending pursuit of perfect quality, earnestly trying our best to meet the demands of customers". We believe that excellence is the essence for industry when combined with integrity to our customers. We are looking forward to collaborating with friends world wide, home and abroad, with the same goal for common development and a positive outcome.
Quality first, honesty and customer satisfaction are the core value of Shanxi HuaCi. Our company always offers affordable prices, to meet the customer's requirements and expectations in a timely manner.
As a high-tech enterprise, Shanxi HuaCi Magnetic Material Co., Ltd. specializes in the production of NdFeB rare earth magnetic materials, tools and components. We provide the high-end level products to our customers by professional operation & management, advanced production equipment & facilities, and strict Q&A process. Our products have been exported to the major market all over the world, including North America, Europe, the Middle East, Oceania and etc. We constantly strive for providing customers with the best solutions, products and services.
1,Which is the strongest type of magnet?
Neodymium (more precisely Neodymium-Iron-Boron) magnets are the strongest permanent magnets in the world.
2,Will using magnets on my refrigerator, stove, oven, or microwave harm the appliance?
No, magnets will not harm any of these appliances.
3,Can you supply monopole magnets?
No, we don't, nor does anyone else, because they don't exist. All magnets must have at least two poles.
4,Do you stock any unplated magnets?
The iron in the NdFeB material will oxidize if it is exposed to moisture. For this reason, we do not stock any unplated magnets. We can supply unplated magnets as custom order items.
5,How can I get the sample?
Samples in stock can sent out within one day, free samples accordingly, Express fee paid by customers.If samples not in stock, 7-15 days manufacture, and we charge sample fee and express fee.
6, Are you the magnet manufacturer?
Yes, our own factory is in Zhejiang, our Trading office (HCM) is in ShanXi.
