N35 Neodymium Magnet Wedge

N35 Neodymium Magnet Wedge thumbnail-1
N35 Neodymium Magnet Wedge thumbnail-2
N35 Neodymium Magnet Wedge thumbnail-3
N35 Neodymium Magnet Wedge thumbnail-4
N35 Neodymium Magnet Wedge thumbnail-5
N35 Neodymium Magnet Wedge thumbnail-6

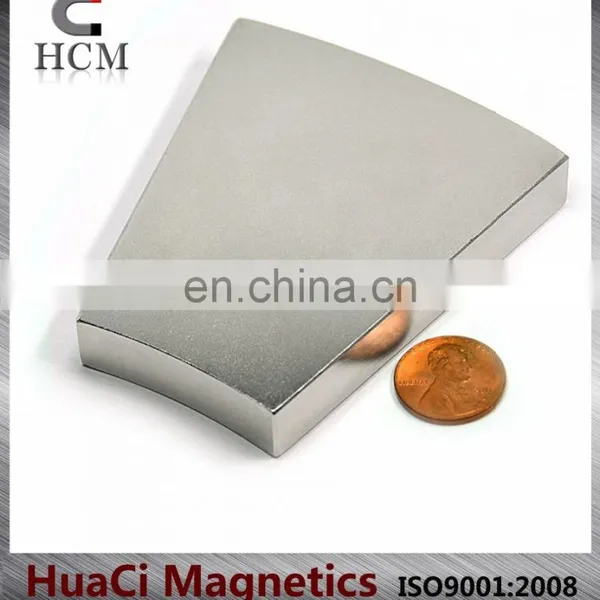

N35 Neodymium Magnet Wedge photo-1

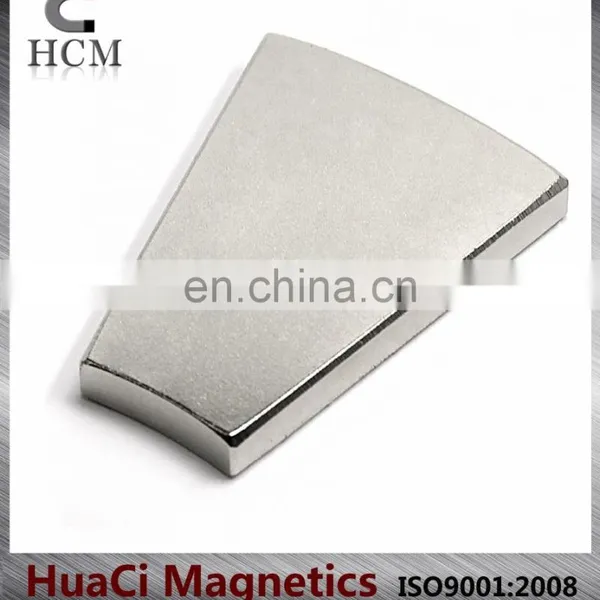

N35 Neodymium Magnet Wedge photo-2

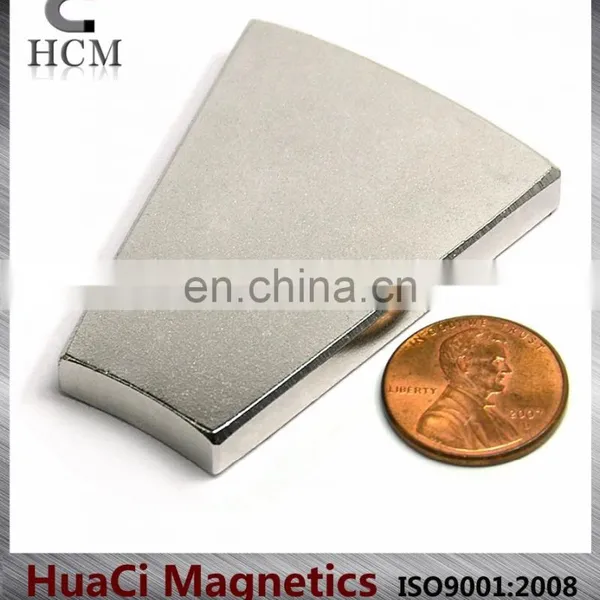

N35 Neodymium Magnet Wedge photo-3

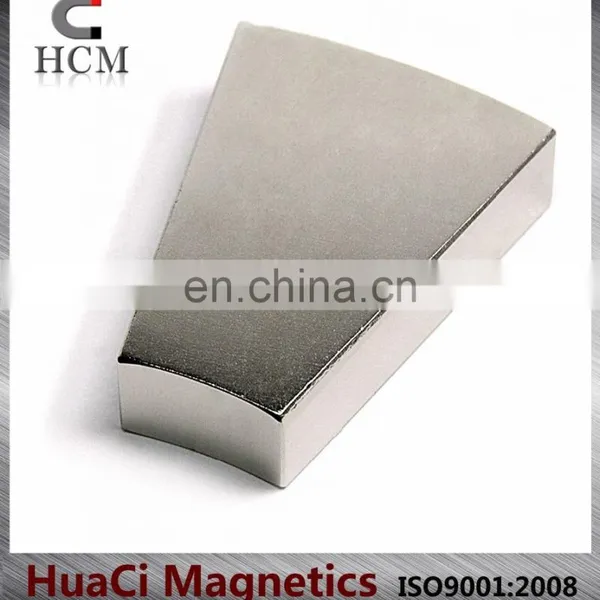

N35 Neodymium Magnet Wedge photo-4

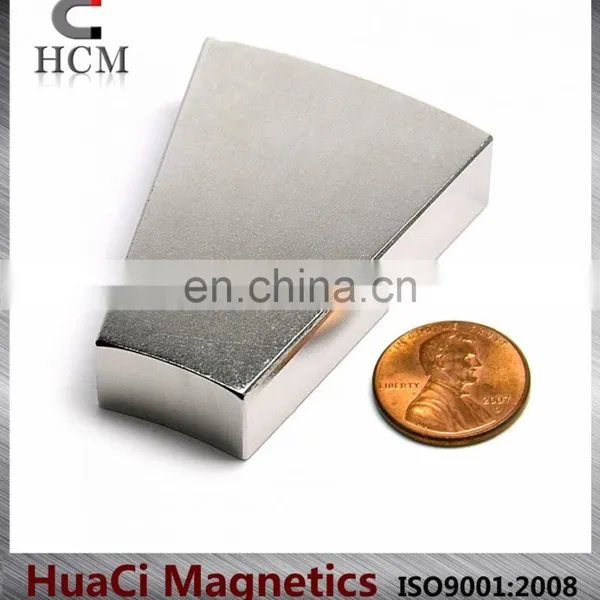

N35 Neodymium Magnet Wedge photo-5

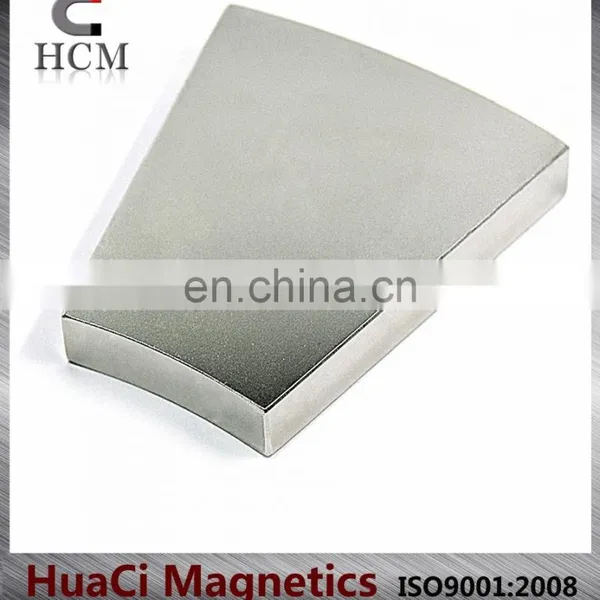

N35 Neodymium Magnet Wedge photo-6
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HCM
Model Number:
N35-N52
Contact Supplier Request Quote Chat Now
Shanxi Huaci Magnetic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HCM
Model Number N35-N52
Type Permanent
Composite NdFeB Magnet
Shape Other, ALL
Application Industrial Magnet
Product Description

About the Neodymium Magnet



Super Neodymium Magne with different dimension and grade

Size :can reach 200mm×150mm×80mm ,magnetized through 80mm
Coating: Varies of coatings are needed to protect the magnets from corrosion, such as NiCuNi (or Ni-Ni), White Zinc, Color Zinc, Epoxy, Phosphating, Teflon, Au,Ag etc.

Application: These Supper Neodymium block magnets are widely used in Magnetic Separator, MRI, Traction Machines, Wind Turbines, Servo Motors, Motors for HEV or BEV, Linear motors Compressor Motors, and so on.
Production time:7-30 Days(According to Quantity and Grade)


Process: Half finished block of Sintered Neodymiun magnets > Demag curve testing > Grinding > Cutting > Coating > Checking > Packing







N35 Neodymium Magnet Wedge

N35 Neodymium Magnet Wedge

Series

 Maximum operating temperature(℃/℉)(Pc=1)
N35-N52 80/176
33M- 48M 100/212
33H-48H 120/248
30SH-45SH 150/302
30UH-40UH 180/356
28EH-38EH 200/392
28AH-35AH 230/446
30TH-35TH 250/482

N35 Neodymium Magnet Wedge

N35 Neodymium Magnet Wedge

Surface Coating Thickness (Microns) Color Characteristic
Zinc Zn 5~20 Bright Blue

The general corrlsion condition,

protection for most products
C-Zn Shinny Color
Nickel Ni+Ni 10~30 Bright Silver

Excellent climate & salt spray resistance,is suitable for the pure envirnoment
Ni+Cu+Ni
Nickel+Sn Ni+Cu+Sn 10~30 Silver Excellent climate & salt spray resistance
Gold Ni+Cu+Au 15~22 Gold Uses in the electronic installation and the upscale accessories
Epoxy Epoxy 10~30 Black, Red, Grey Well climate & salt spray resistance,uses in to request the higher anticorrrosion situation
Ni+Cu+Epoxy
Zn+Epoxy

N35 Neodymium Magnet Wedge

Our Services

We are persistently pursuing our goal, which is "A never-ending pursuit of perfect quality, earnestly trying our best to meet the demands of customers".  We believe that excellence is the essence for industry when combined with integrity to our customers. We are looking forward to collaborating with friends world wide, home and abroad, with the same goal for common development and a positive outcome.

Quality first, honesty and customer satisfaction are the core value of Shanxi HuaCi. Our company always offers affordable prices, to meet the customer's requirements and expectations in a timely manner.

Company Information

N35 Neodymium Magnet Wedge

As a high-tech enterprise, Shanxi HuaCi Magnetic Material Co., Ltd. specializes in the production of NdFeB rare earth magnetic materials, tools and components. We provide the high-end level products to our customers by professional operation & management, advanced production equipment & facilities, and strict Q&A process. Our products have been exported to the major market all over the world, including North America, Europe, the Middle East, Oceania and etc. We constantly strive for providing customers with the best solutions, products and services.

N35 Neodymium Magnet Wedge

Product Show

N35 Neodymium Magnet Wedge

N35 Neodymium Magnet Wedge

Grade

N35 Neodymium Magnet Wedge

Grade Remanence
(Br)		 Coercive force
(Hcb)		 Intrinsic coercive force
(Hcj)		 Maximum energy product
(Bh)max
kGs mT kOe kA/m kOe kA/m MGOe kJ/m
N35 11.8~12.1 1180~1230 ≥10.9 ≥868 ≥12 ≥955 33~35 263~278
N38 12.3~12.5 1230~1250 ≥11.3 ≥899 ≥12 ≥955 36~37 287~295
N40 12.7~12.8 1270~1280 ≥11.6 ≥923 ≥12 ≥955 38~39 303~310
N42 12.9~13.1 1290~1310 ≥11.6 ≥923 ≥12 ≥955 40~41 318~326
N45 13.3~13.5 1330~1350 ≥11 ≥876 ≥12 ≥955 43~44 342~350
N48 13.6~13.8 1360~1380 ≥10.5 ≥836 ≥12 ≥955 46~47 366~374
N50 14.1~14.2 1410~1420 ≥10.8 ≥860 ≥11 ≥876 47~49 374~390
N52 14.3~14.4 1430~1440 ≥10.8 ≥836 ≥11 ≥876 49~51 390~406
30M 10.8~11.4 1080~1140 ≥10 ≥796 ≥14 ≥1114 28~31 223~246
33M 11.3~11.5 1130~1150 ≥10.5 ≥836 ≥14 ≥1114 31~32 247~255
35M 11.8~12 1180~1200 ≥10.9 ≥868 ≥14 ≥1114 33~34 263~271
38M 12.3~12.5 1230~1250 ≥11.3 ≥899 ≥14 ≥1114 36~37 287~295
40M 12.7~12.8 1270~1280 ≥11.6 ≥923 ≥14 ≥1114 38~39 303~310
42M 12.9~13.1 1290~1310 ≥12 ≥955 ≥14 ≥1114 40~41 318~326
45M 13.3~13.5 1330~1350 ≥12.5 ≥995 ≥14 ≥1114 43~44 342~350
48M 13.6~13.8 1360~1380 ≥12.9 ≥1027 ≥14 ≥1114 45~47 358~374
50M 14.1~14.2 1410~1420 ≥13.2 ≥1050 ≥14 ≥1114 47~49 374~390
30H 10.8~11 1080~1100 ≥10 ≥796 ≥17 ≥1353 28~30 223~239
33H 11.3~11.5 1130~1150 ≥10.5 ≥836 ≥17 ≥1353 31~32 247~255
35H 11.8~12 1180~1200 ≥10.9 ≥868 ≥17 ≥1353 33~34 263~271
38H 12.3~12.5 1230~1250 ≥11.3 ≥899 ≥17 ≥1353 36~37 287~295
40H 12.7~12.8 1270~1280 ≥11.6 ≥923 ≥17 ≥1353 38~39 303~310
42H 12.9~13.1 1290~1310 ≥12 ≥955 ≥17 ≥1353 40~41 318~326
45H 13.3~13.4 1330~1340 ≥12.5 ≥995 ≥16 ≥1353 43~44 342~350
48H 13.6~13.8 1360~1380 ≥12.9 ≥1027 ≥16 ≥1353 45~46 358~366
28SH 10.5~10.8 1050~1080 ≥9.6 ≥764 ≥20 ≥1592 26~27 207~215
30SH 10.8~11 1080~1100 ≥10.1 ≥804 ≥20 ≥1592 28~30 223~239
33SH 11.3~11.5 1130~1150 ≥10.6 ≥844 ≥20 ≥1592 31~32 247~255
35SH 11.8~12 1180~1200 ≥11 ≥876 ≥20 ≥1592 33~34 263~271
38SH 12.3~12.5 1230~1250 ≥11.4 ≥907 ≥20 ≥1592 36~37 287~295
40SH 12.7~12.8 1270~1280 ≥11.8 ≥939 ≥20 ≥1592 38~39 303~310
42SH 12.9~13.1 1290~1310 ≥12 ≥955 ≥20 ≥1592 40~41 318~326
45SH 13.2~13.4 1320~1340 ≥12.5 ≥995 ≥20 ≥1592 42~43 334~342
28UH 10.5~10.8 1050~1080 ≥9.6 ≥764 ≥25 ≥1990 26~28 207~223
30UH 10.8~11 1080~1100 ≥10.2 ≥812 ≥25 ≥1990 28~30 223~239
33UH 11.3~11.5 1130~1150 ≥10.7 ≥852 ≥25 ≥1990 31~32 247~255
35UH 11.8~12 1180~1200 ≥10.8 ≥860 ≥25 ≥1990 33~34 263~271
38UH 12.3~12.5 1230~1250 ≥11.4 ≥907 ≥25 ≥1990 36~37 287~295
40UH 12.6~12.7 1260~1270 ≥11.6 ≥923 ≥25 ≥1990 38~39 303~310
42UH 12.9~13.1 1290~1310 ≥11.6 ≥923 ≥25 ≥1990 40~41 318~326
28EH 10.5~10.8 1050~1080 ≥9.6 ≥764 ≥30 ≥2388 26~28 207~223
30EH 10.8~11 1080~1100 ≥10.2 ≥812 ≥30 ≥2388 28~30 223~239
33EH 11.3~11.5 1130~1150 ≥10.2 ≥812 ≥30 ≥2388 31~32 247~255
35EH 11.8~12 1180~1200 ≥10.2 ≥812 ≥30 ≥2388 33~34 263~271
38EH 12.3~12.5 1230~1250 ≥10.9 ≥868 ≥30 ≥2388 36~37 287~295
40EH 12.5~12.8 1250~1280 ≥11.3 ≥899 ≥30 ≥2388 38~41 302~326
28AH 10.4~10.8 1040~1080 ≥9.9 ≥787 ≥33 ≥2624 26~29 207~231
30AH 10.8~11.3 1080~1130 ≥10.3 ≥819 ≥33 ≥2624 28~31 223~247
33AH 11.3~11.7 1130~1170 ≥10.6 ≥843 ≥33 ≥2624 31~34 247~271
35AH 11.7~12.2 1170~1220 ≥11 ≥876 ≥33 ≥2624 33~36 263~287
38AH 12.2~12.5 1220~1250 ≥11.3 ≥899 ≥33 ≥2624 36~39 287~310
30TH 10.8~11 1080~1100 ≥10.2 ≥812 ≥33 ≥2627 28~30 223~239
33TH 11.3~11.5 1130~1150 ≥10.2 ≥812 ≥33 ≥2627 31~32 247~255
35TH 11.8~12 1180~1200 ≥10.2 ≥812 ≥33 ≥2627 33~34 263~271
Packaging & Shipping

N35 Neodymium Magnet Wedge

FAQ

1,Which is the strongest type of magnet?

    Neodymium (more precisely Neodymium-Iron-Boron) magnets are the strongest permanent magnets in the world.

2,Will using magnets on my refrigerator, stove, oven, or microwave harm the appliance?

     No, magnets will not harm any of these appliances.

3,Can you supply monopole magnets?

     No, we don't, nor does anyone else, because they don't exist.  All magnets must have at least two poles.

4,Do you stock any unplated magnets?

     The iron in the NdFeB material will oxidize if it is exposed to moisture. For this reason, we do not stock any unplated magnets.          We can supply unplated magnets as custom order items.

5,How can I get the sample?

   Samples in stock can sent out within one day, free samples accordingly, Express fee paid by customers.If samples not in stock,      7-15 days manufacture, and we charge sample fee and express fee.

6, Are you the magnet manufacturer?

   Yes, our own factory is in Zhejiang, our Trading office (HCM) is in ShanXi.
