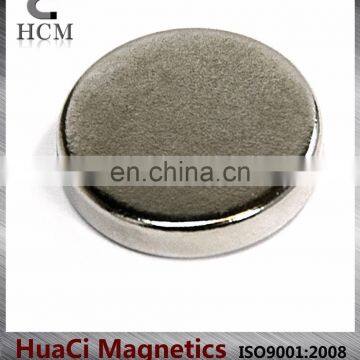

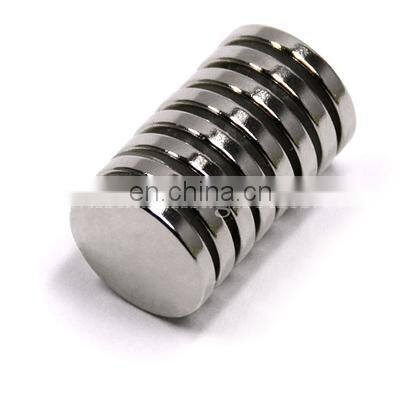

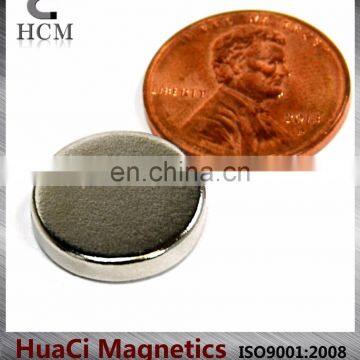

This 5/8" disc neodymium magnet is made of grade N45 NdFeB magnetic material under ISO 9001 quality systems. The magnet is Ni+Copper+Ni triple layer coated. The dimension tolerance is +/-0.002".
- Material: Sintered grade N45 NdFeB magnetic material
- Gauss Rating: 13,800 gauss
- Holding Power: 7.6 lbs.

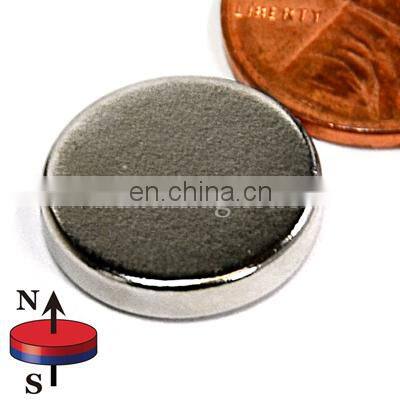

- Pole Orientation: Axially magnetized, i.e. the N and S poles are on the flat surfaces
- Coating: Ni+Cu+Ni plated, the BEST coating available
Series |
Maximum operating temperature(℃/℉)(Pc=1) |
| N35-N52 | 80/176 |
| 33M- 48M | 100/212 |
| 33H-48H | 120/248 |
| 30SH-45SH | 150/302 |
| 30UH-40UH | 180/356 |
| 28EH-38EH | 200/392 |
| 28AH-35AH | 230/446 |
| 30TH-35TH | 250/482 |
| Surface | Coating | Thickness (Microns) | Color | Characteristic |
| Zinc | Zn | 5~20 | Bright Blue |
The general corrlsion condition, protection for most products |
| C-Zn | Shinny Color | |||
| Nickel | Ni+Ni | 10~30 | Bright Silver | Excellent climate & salt spray resistance,is suitable for the pure envirnoment |
| Ni+Cu+Ni | ||||
| Nickel+Sn | Ni+Cu+Sn | 10~30 | Silver | Excellent climate & salt spray resistance |
| Gold | Ni+Cu+Au | 15~22 | Gold | Uses in the electronic installation and the upscale accessories |
| Epoxy | Epoxy | 10~30 | Black, Red, Grey | Well climate & salt spray resistance,uses in to request the higher anticorrrosion situation |
| Ni+Cu+Epoxy | ||||
| Zn+Epoxy |
As a high-tech enterprise, Shanxi HuaCi Magnetic Material Co., Ltd. specializes in the production of NdFeB rare earth magnetic materials, tools and components. We provide the high-end level products to our customers by professional operation & management, advanced production equipment & facilities, and strict Q&A process. Our products have been exported to the major market all over the world, including North America, Europe, the Middle East, Oceania and etc. We constantly strive for providing customers with the best solutions, products and services.
We are persistently pursuing our goal, which is "A never-ending pursuit of perfect quality, earnestly trying our best to meet the demands of customers". We believe that excellence is the essence for industry when combined with integrity to our customers. We are looking forward to collaborating with friends world wide, home and abroad, with the same goal for common development and a positive outcome.
Quality first, honesty and customer satisfaction are the core value of Shanxi HuaCi. Our company always offers affordable prices, to meet the customer's requirements and expectations in a timely manner.
1,Which is the strongest type of magnet?
Neodymium (more precisely Neodymium-Iron-Boron) magnets are the strongest permanent magnets in the world.
2,Will using magnets on my refrigerator, stove, oven, or microwave harm the appliance?
No, magnets will not harm any of these appliances.
3,Can you supply monopole magnets?
No, we don't, nor does anyone else, because they don't exist. All magnets must have at least two poles.
4,Do you stock any unplated magnets?
The iron in the NdFeB material will oxidize if it is exposed to moisture. For this reason, we do not stock any unplated magnets. We can supply unplated magnets as custom order items.
5,How can I get the sample?
Samples in stock can sent out within one day, free samples accordingly, Express fee paid by customers.If samples not in stock, 7-15 days manufacture, and we charge sample fee and express fee.
6, Are you the magnet manufacturer?
Yes, our own factory is in Zhejiang, our Trading office (HCM) is in ShanXi.
