Lenticular Printing

Lenticular Printing thumbnail-1
Lenticular Printing thumbnail-2
Lenticular Printing thumbnail-3
Lenticular Printing thumbnail-4
Lenticular Printing thumbnail-5
Lenticular Printing thumbnail-6
Lenticular Printing photo-1
Lenticular Printing photo-2
Lenticular Printing photo-3
Lenticular Printing photo-4
Lenticular Printing photo-5
Lenticular Printing photo-6
US$ 2.3 - 2.3 MOQ: 1000 Sheets
Key Specifications
Get Latest Price
Product Material:
Plastic
Printing Type:
Offset Printing
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Dongguan Fully Trusty 3D Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Dongguan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Material Plastic
Printing Type Offset Printing
Place of Origin Guangdong, China
Brand Name Nuken
Model Number Custom



We are probably the most completed lenticular solutions provider in the  world.



We make only 3d lenticular products, we make all 3d lenticular products!





Best Quality, Best service!







Product Description



The printing methods we use

A. offset printing--by print press

Process:3D design--interlacing--CTP---printing---die cutting---packing

printing size:normally 50cm x 70cm or 60cm x 80cm

DPI of the print press:around 2000

Capacity:5000 sheets per hours

color:CMYK+2 white

Ink type:UV ink

biggest thickness:0.7mm

MOQ:1000 sheets



Notes:

1.double side printing is available

2.Any shapes can be mold-cut

3.original files need to add 5mm bleeding edge

4.different sizes and artworks can be loaded on one layout

5.Normally carton packing, special packing available.

6.This printing method suits for small size with big quantity.

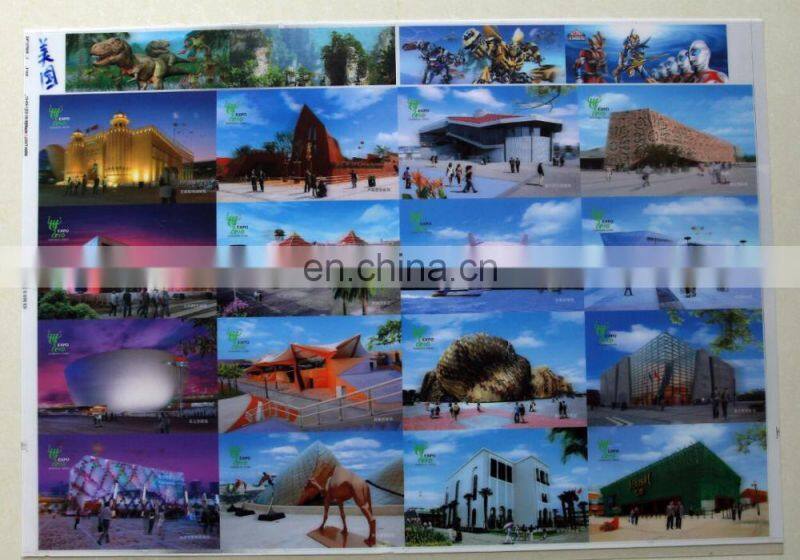

lenticular printing

 lenticular printing

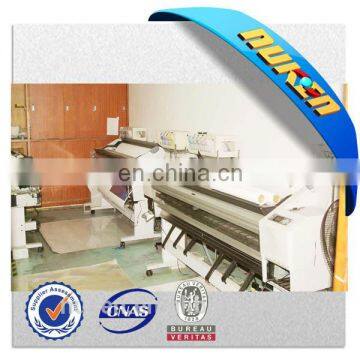

B. Inkjet printing--by printer

Process:3D design--interlacing--printing on paper---laminating---packing

printing size:biggest size 150*300cm one single sheet.

DPI of the print press:around 700

Capacity:200 suqare meters one day

color:RGB

Ink type:dying ink

biggest thickness:10mm

MOQ:1 pc





Notes:



1.Can be used with or without back-lit.



2.Any shapes can be cut.



3.original files need to add 20mm bleeding edge.



4.Normally carton box for packing.



5.This printing method suits for big size with any quantity.

lenticular printing    lenticular printing

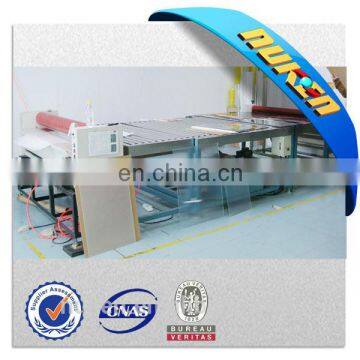

                     Laminator                                                                 printer





C. Laser prcessing--the highest definition picture can be made recently, We are the first one using this technology to make 3D picture.



Process:3D design--interlacing--processing on film---laminating---packing



printing size:biggest size 80cm x 110cm one single sheet.



Printing resolution: 4000 dpi.



Capacity:100 suqare meters one day.



color:Black and White or partial colorful.



biggest thickness:10mm



MOQ:1 pc







Notes:



1.Can be used with or without back-lit.



2.Any shapes can be cut.



3.original files need to add 20mm bleeding edge.



4.Normally carton box for packing.



5.This printing method suits for very high quantity pictures.









FAQ



Requirement of the original artworks



  Basic Requirement:

Computer software
Photoshop CS, Illustrator CS, Freehand 9 or CorelDraw 9 files
File format
Tiff, eps, ai, jpg, psd, fh, gif, mpeg, cdr
Artwork size
Full size ( 1:1 ) with 3mm bleeding edge for die cutting
Resolution (dpi)
At least 200 dpi -the better the quality, the better the outcome
Commercial Proof
For color matching,
-inkjet printout is not acceptable as the ink color and paper will be different from commercial proof
-pantone is not acceptable for lenticular printing so we will convert it to CMYK offset printing colors
Artwork submission
CD, DVD, or
Put on your file server and we'll download it.--(Recommended) or
Upload to our file server or
By email if file size is smaller than 15MB



Hints on artworks:

General:
1. Avoid using letter with too thin stroke, esp. that goes in the same direction as lenticules.
2. Font size shall be as large as possible, say 14 points or above is better.
3. Avoid big color contrast in different views, e.g. solid black or red elements on one view but white background on the other.

4. Common background in different frames will have better result.

Specific:
1. Flipping
Not more than 3 flips is recommended for totally different images; and special effect is suggested for 4 flips or above; up-to-down is better than left-to-right changing.

2. Special
a. animation
Use the minimum number of frames to create the effect; the degree of motion shall not be too large and also the area covered by the changes shall be as small as possible.
b. zooming
The difference between the small and big size shall not be too large; Up-to-down changing is absolutely better than left to right changing; small size will have better result.
c. morphing
Two different artworks could be provided but the shape and contour of the "morphing" object shall be as close as possible.

3. 3 Dimensional (3D with depth illusion)
- Layered files with all elements editable in layered Photoshop format is preferred;
- Avoid sold color background as it will reduce the sense of depth;
- Background with image or text will facilitate your eyes to register the difference in relative position of the image elements;

- As elements of the artwork are separated in layers. Avoid placing important information, e.g. company's fine logo or name, in non-focal layers as it will be less sharp.





Please advise below information for an exact quote:
1.What is the size you want?
2.What is the quantity?
3.What is the effect,3D or moving?
4.How many designs in total?
5.What is the environment will the picture be worked in?


Company Information





What are our advantages in 3D are?



We have exclusive latest designing software with strong functions;



We have large designing team with strong 3D lenticular designing abilities;



We have more than 20 years experience in this industry;



We have the latest CTP equipment, which can provide the PS plate at a very high resolution;



We have the latest print press in good condition, which can print the presswork at a very high resolution;



We have good purchasing channel of all kinds of materials, which provides us high-quality materials at relatively lower price.



We have perfect cooperation factories that can fulfill what we don't focus on.



All in one, we can provide you world-class lenticular products at a very reasonable price





Packaging & Shipping

Sample Delivery

10-12 business days after receipt of artworks & sample charges



Production



Small quantity--15 business days after sample approval & receipt of deposit.

Large quantity--could be discussed.

Special arrangement can be made upon request.

Packing

1ps/polybag and master carton, or according to customer's requirement



Term of payment

Sample - paid in advance

Mass production - Full payment in advance for small quantity;

or 40% advance deposit, balance before shipment for large quantity.
