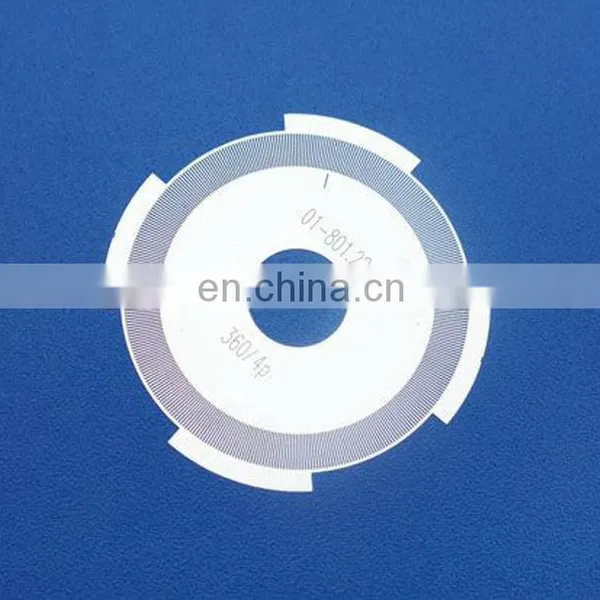

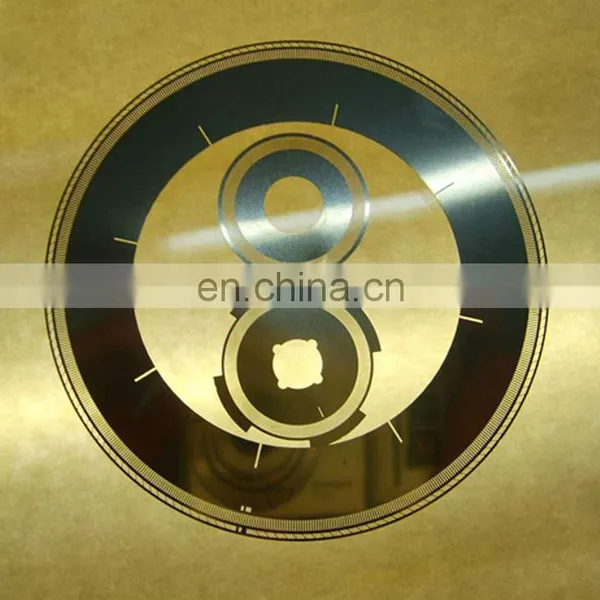

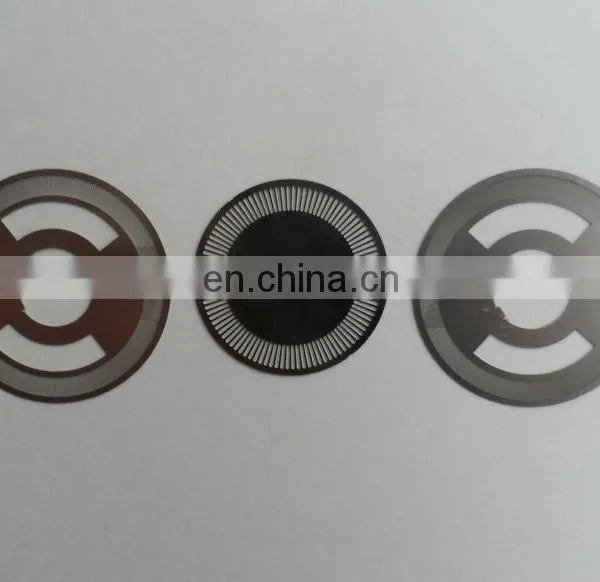

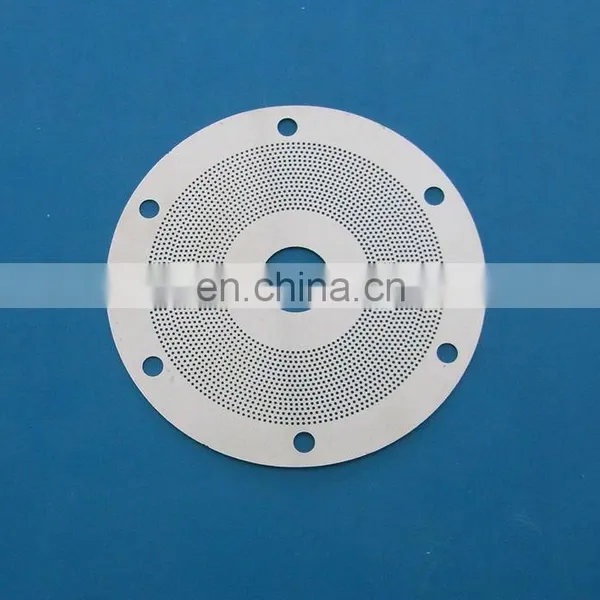

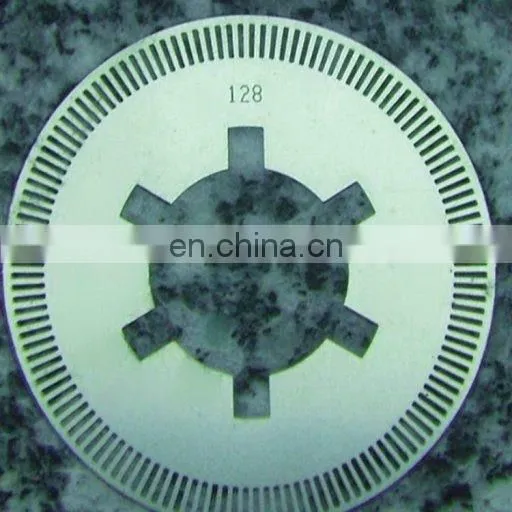

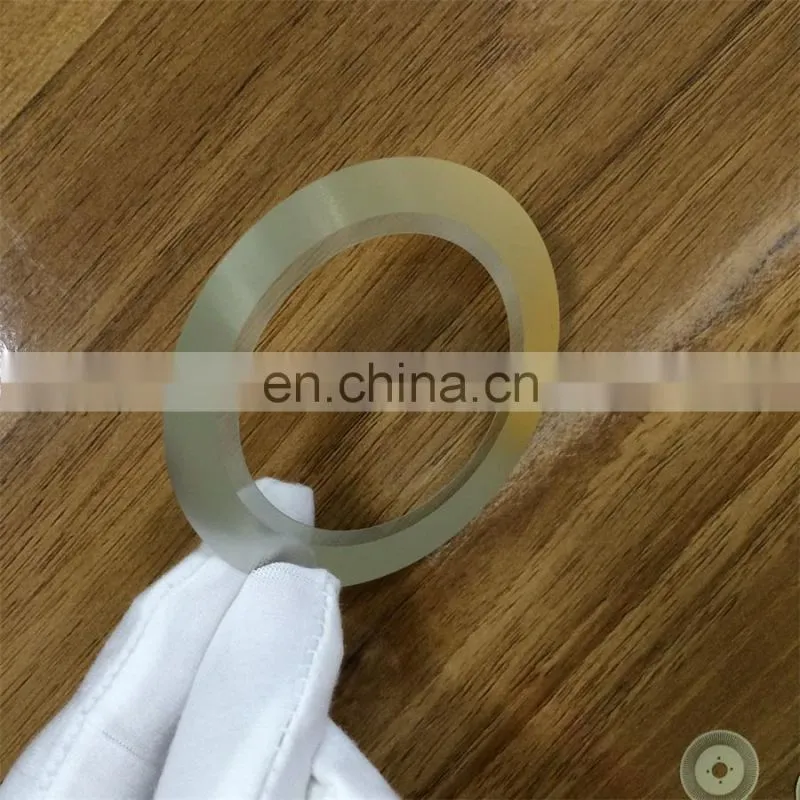

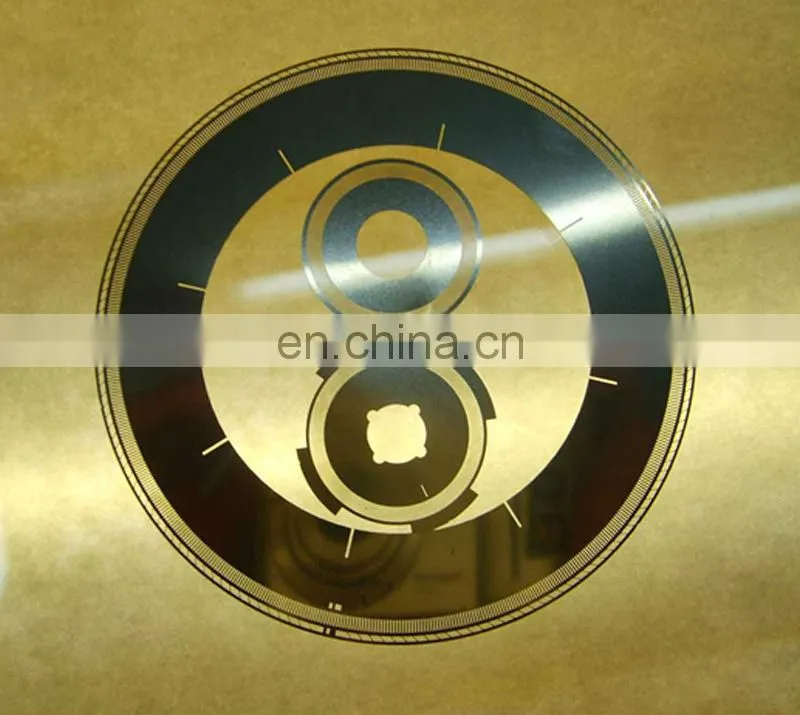

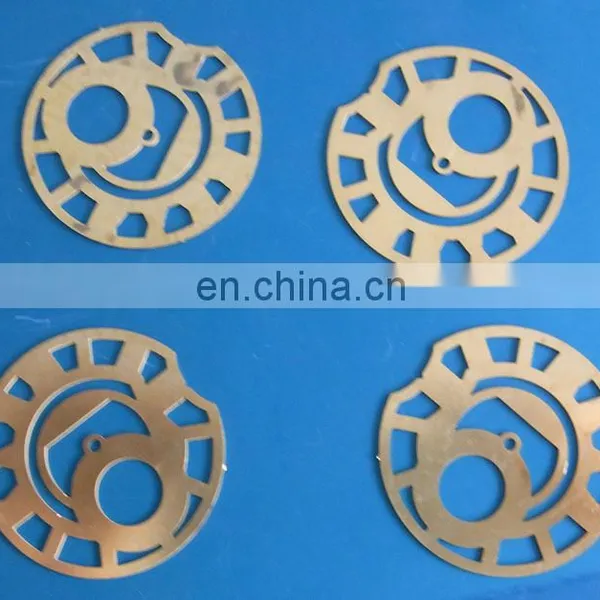

Encoder milling oem optic encoder disk
Encoder milling oem optic encoder disk

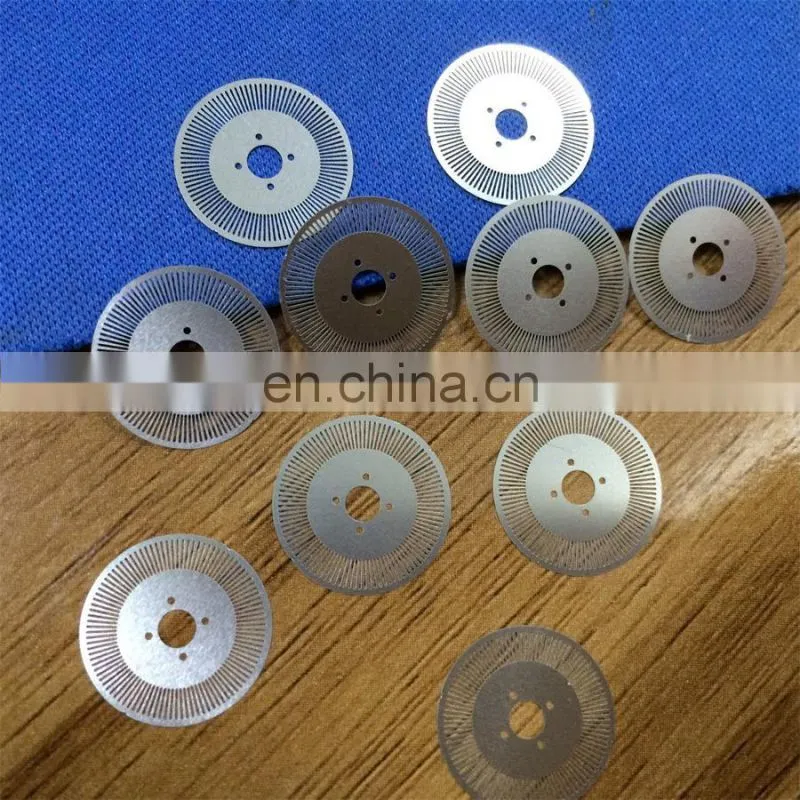

metal encoder disk
1.SUS304 planarity sheet for photo etching is used.
2.Minimum bar code width is around 0.1mm(t=0.05 mm)
3.Bar pitch tolerance within ±0.02 mm, max and min difference of bar code tolerance in the same lot within 0.02.
4.Center run-out within 0.01, circularity within 0.01 is possible.
5.Internal dia. accuracy range is within 0.03 (0.01 is possible when finished with a reamer.)
6.Technology highlights: Standard processing
7.SUS304 planarity sheet for photo etching is used.
8.Minimum bar code width is around 0.08(t=0.05)
9.Bar pitch tolerance within ±0.003, max and min difference of bar code tolerance in the same lot within 0.04.
10.Center run-out within 0.015, circularity within 0.015 is possible.
11.Internal dia. accuracy range is within 0.04 (0.01 is possible when finished with a reamer.)
More Type ,Please click on the image below
Packing and inspection
Our Advantage
1. Low cost for molding or tooling
2. Advanced & Standardization workshops and facilitates.
3. High-tech and high precision manufacturing equipment.
4. Strict ISO14001:2004 , ISO9001:2008 standards.
5. ROHS compliant & enviroment friendly products.
6. Professional technical specialists and management personel
7. 100% in house inspection before delivery
8. All OEM/EDM is welcome
Technical Data:
Machining Type
Chemical etching / photo etching, Laser cutting, stamping
Material Capabilities
Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Aluminum, Alloy (Thickness from 0.03 mm up to 1 mm)
Product Dimension
220*280 mm
Smallest open hole
D= 0.1mm when Thickness range from 0.03mm to 0.05mm
1.5*Thickness
Centre to Centre for holes
1.5*Thickness
Smallest line width
0.05mm.
Product precision
± 0.01mm (common difference). It’s generally 20% of material thickness.
Surface treatment for choice
Planting / Painting, electro-polishing
