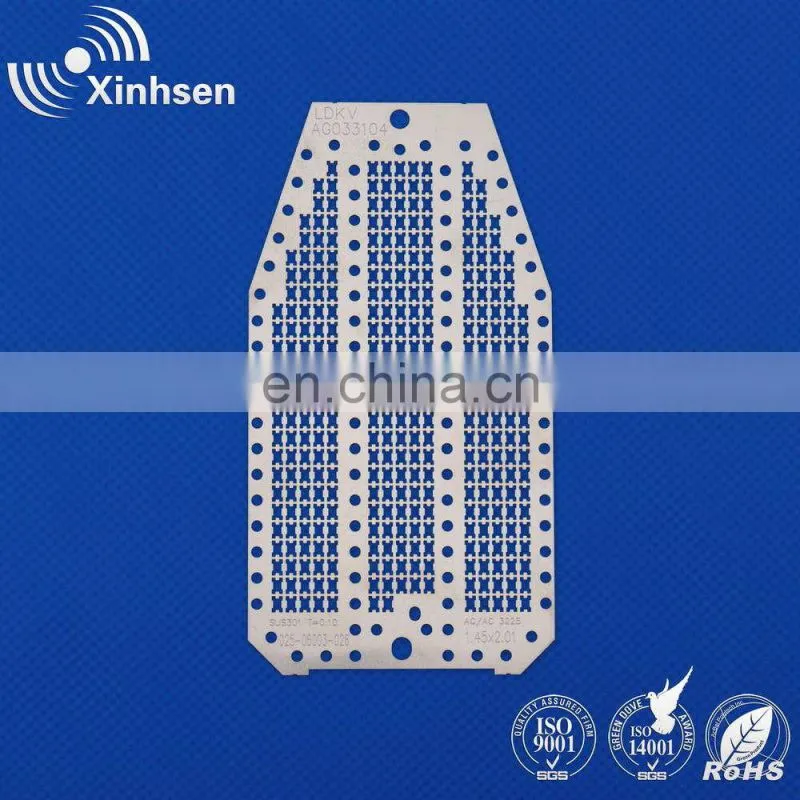

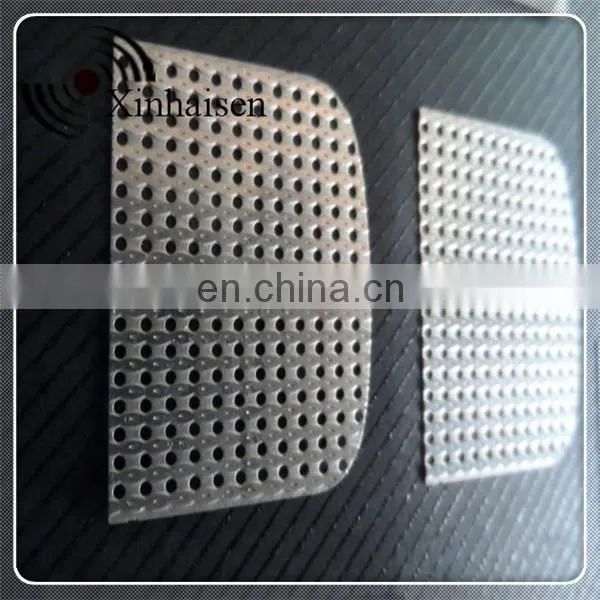

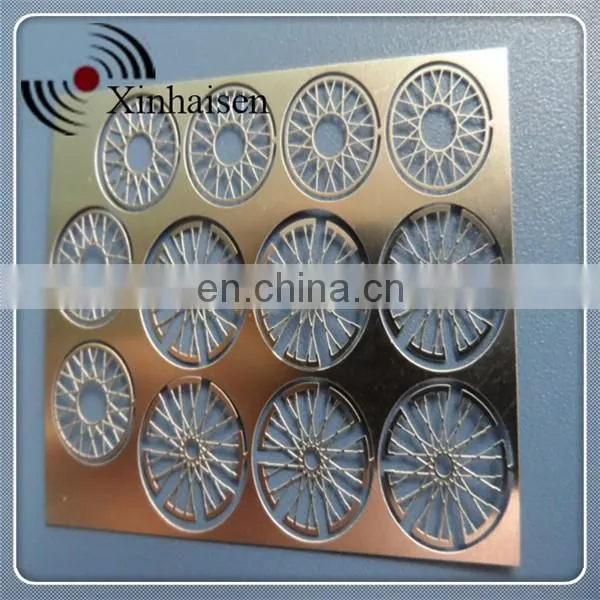

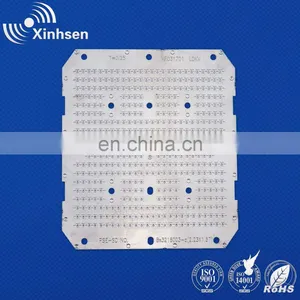

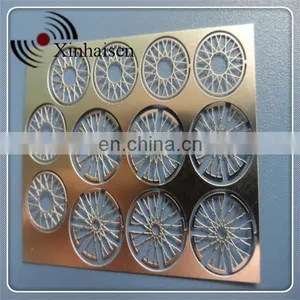

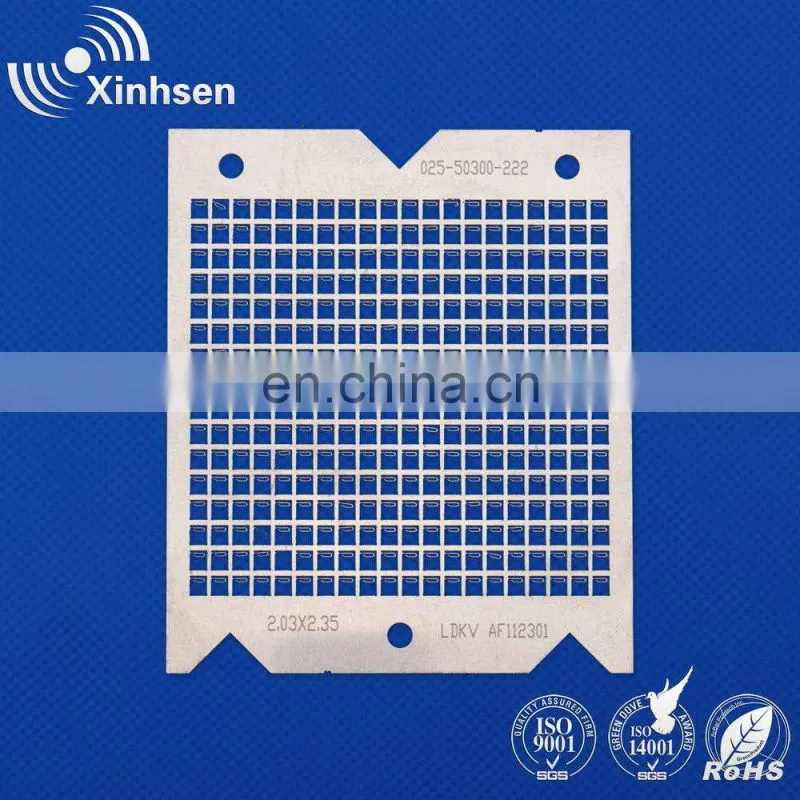

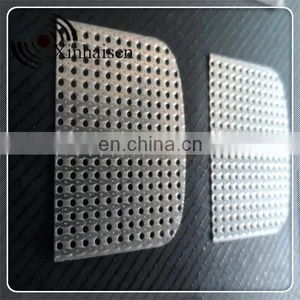

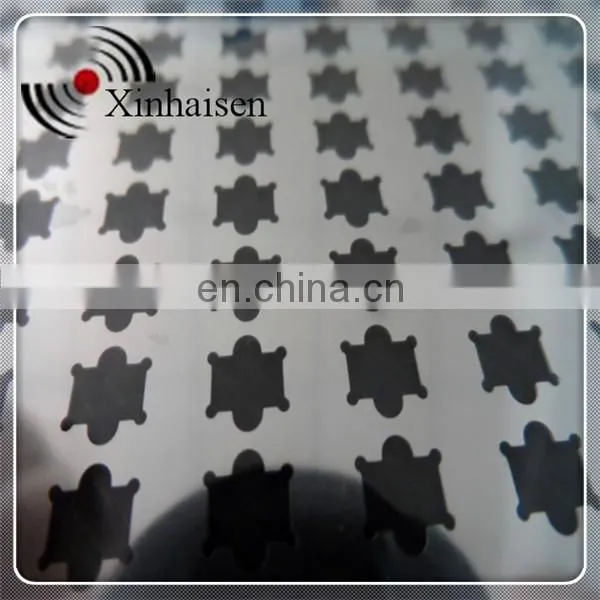

OEM ODM customize Photo chemical etching quality round hole plate
Application & Features
Xinhaisen manufactures various custom metal meshes with photo chemical etching, including round hole plate and grilles,stainles steel plate. Widely used in Medical implants, Particle separation, Smoke detectors, High-end automotive interiors, Fuel filtration and so on.
With advanced photo etching technique, we can make sure:
♦Flexible opening area
♦Various material options
♦Accurate aperture shapes / sizes
♦Consistent cross-sectional thickness
♦Special features and differing aperture shapes
♦No burr and stress free and no sharp edge meshes
Hole Type Show
Thickness (mm) |
Smallest hole Diameter |
Tolerance |
0.025--- 0.08 |
0.1 mm |
+/-0.015 mm |
0.1 --- 0.2 |
1.5 * thickness |
+/-0.015 mm |
0.25 --- 0.3 |
1.5 * thickness |
+/-0.03 mm |
0.35---- 0.4 |
1.5 * thickness |
+/-0.05 mm |
0.5--- 0.6 |
1.5 * thickness |
+/-0.05mm |
0.7 --- 0.8 |
1.5 * thickness |
+/-0.1mm |
1.0 ---1.2 |
1.5 * thickness |
+/-0.1 mm |
| Product description | |
| Item | OEM ODM customize Photo chemical etching quality round hole plate |
| Material | Stainless steel or customize |
| Size | 1mm*1mm-700mm*600mm |
| Hole | ≥0.03 mm |
| Flatness | ±0.03 mm |
| Thickness | 0.02mm-1mm |
| Line width | ≥0.015 mm |
| Tolerance | +/-0.01 or according to customer |
| Shape | custom design available or we can help design |
| Sample | Available within 6-15 days |
| Payment | T/T,negotiable |
| delivery | DHL,Fedex,TNT,EMS or according to custom |
| Packing | Paper,plastic bag,paper case,wooden case or customize |
| Prices | Based on the drawings , qty etc... |
| Photo chemical etching is more suitable for coffee filter mesh.Try it!~ |
| Xinhsen's Story |
Founded in 2006, Xinhaisen has been devoted to offer photo chemical etching solutions for precision metal components. We have served industry sectors including Automotive, Aerospace & Defence, Electronics, Medical, Precision Engineering and Decorative Etchings with super fine, stress and burr-free products.
What we can do
Precision Meshes & Filters
Metal Shims & Gaskets
Optical Encoder Disks & Strips
EMI/RFI Shielding EMI / RFI
Leadframes
Flat Springs
Lampshade Frame & Decorations
High-end Automotive Interiors
Printing Stencils & Foils
Drum clean blades
