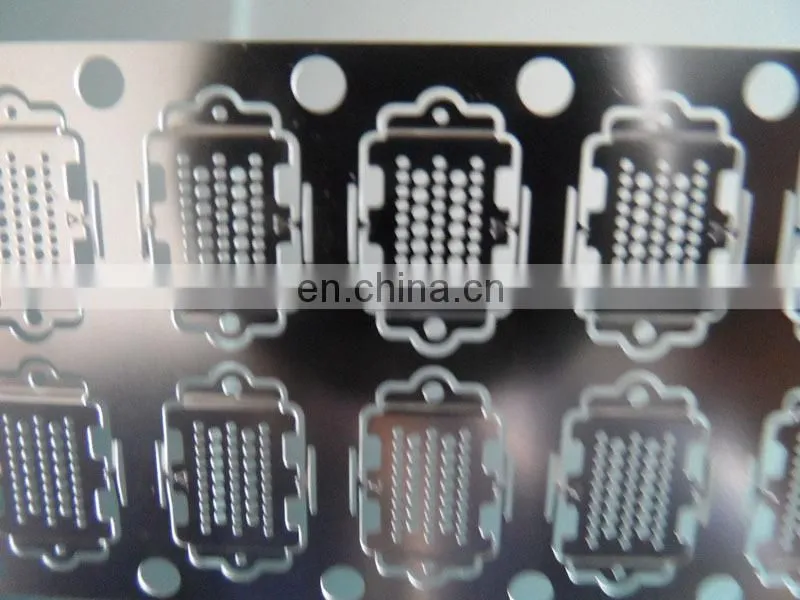

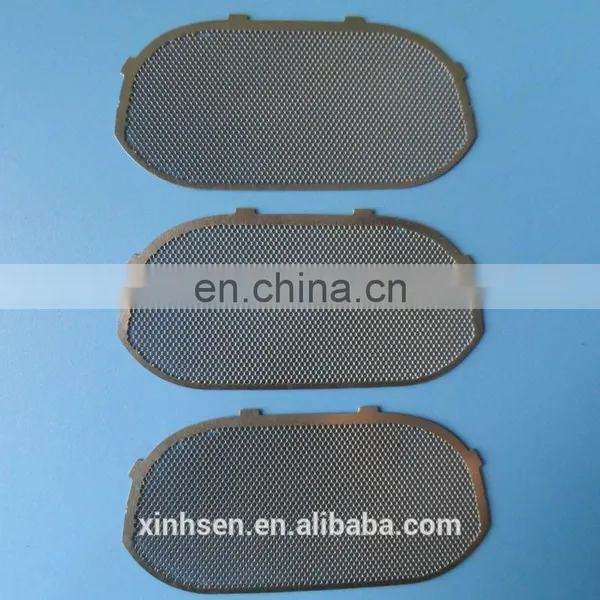

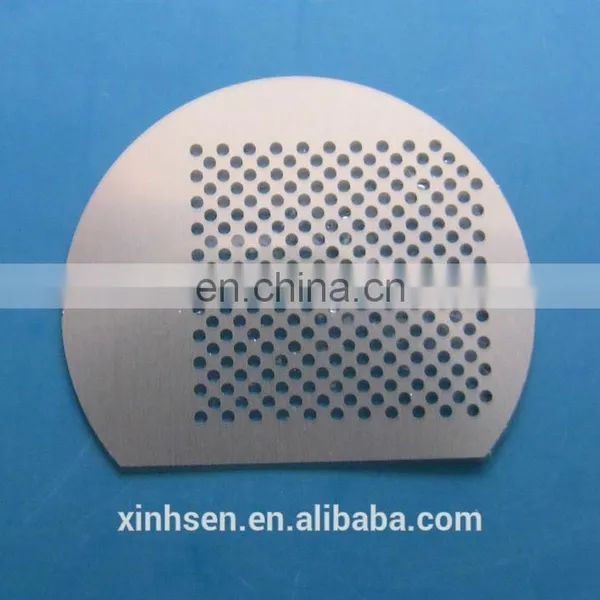

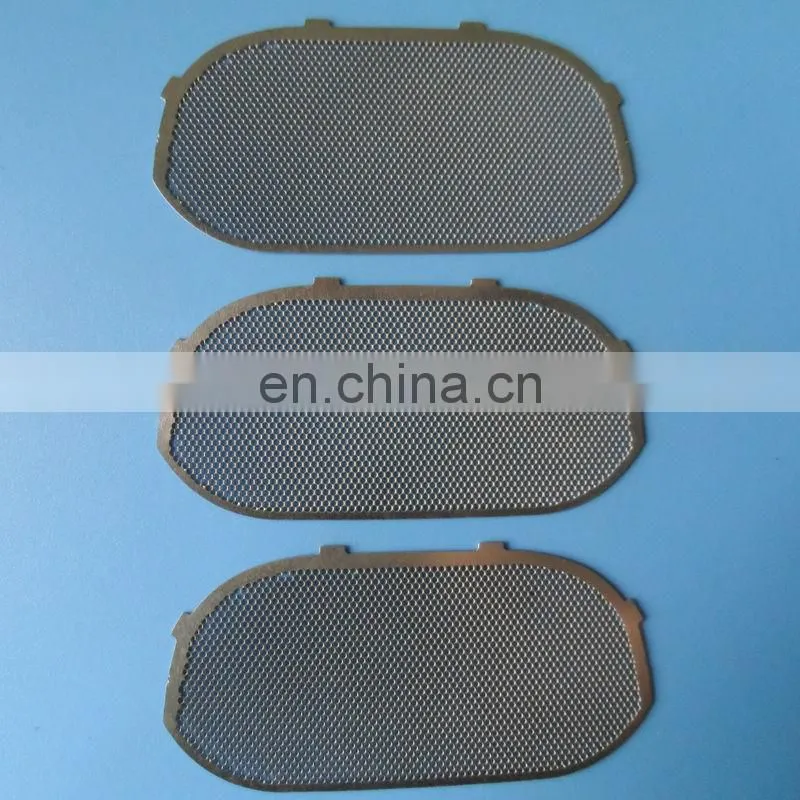

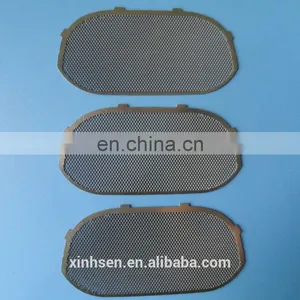

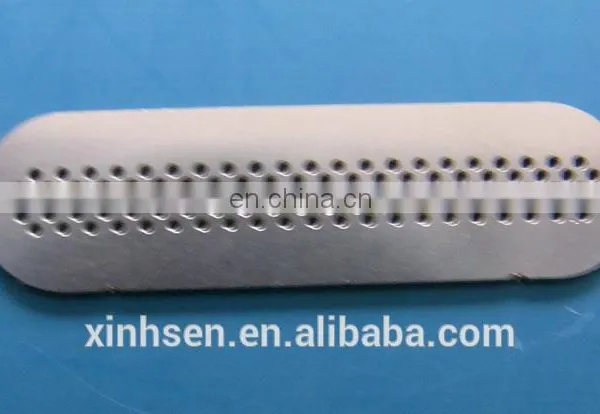

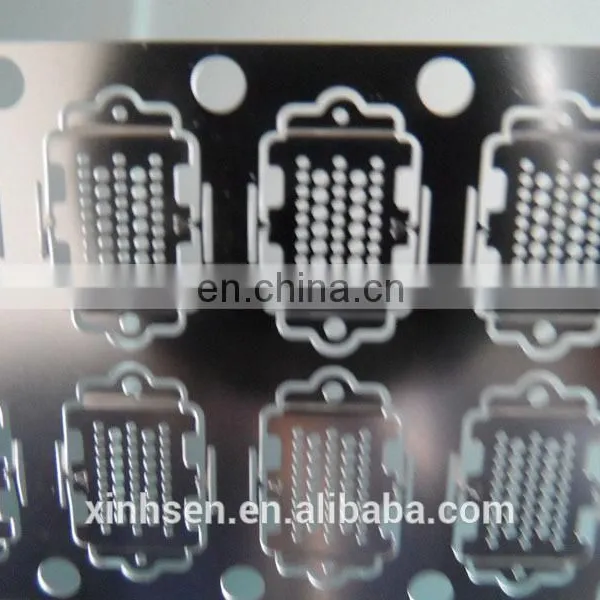

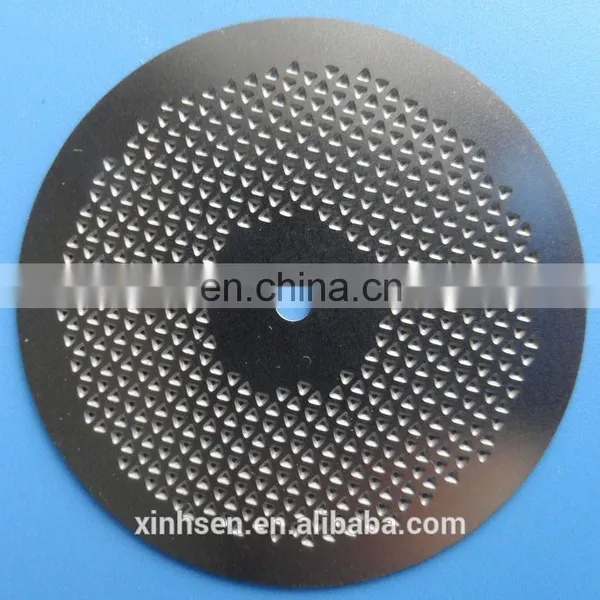

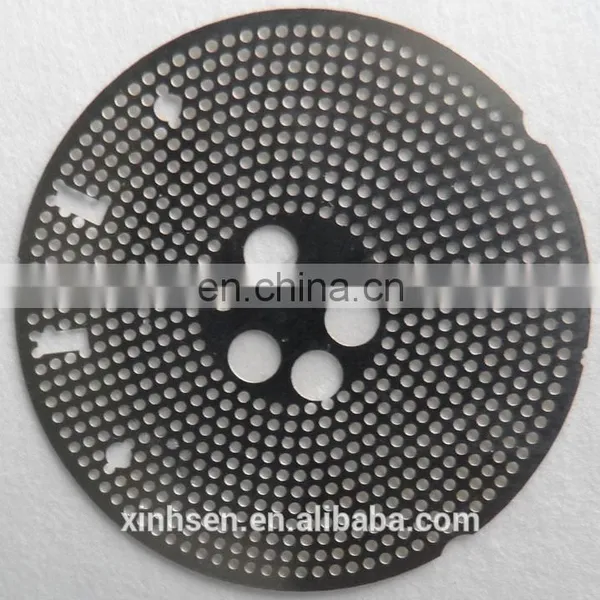

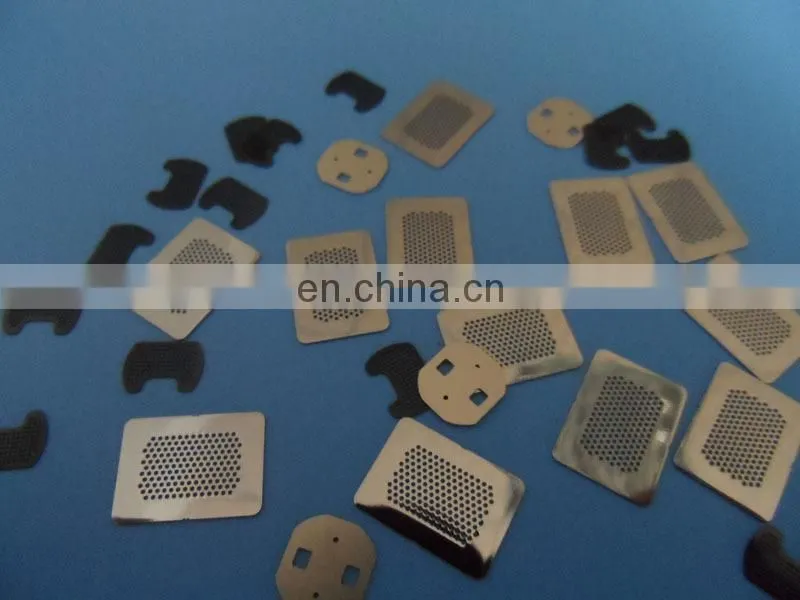

precision perforated metal mesh speaker grille
Product Description | |
Product name: |
etched perforated metal mesh with high precision |
Material: |
SS 300 series |
Size: |
according to customers |
Thickness: |
0.03-1.5mm is available |
Technique: |
High precision etching |
Hole: |
0.01mm(customize) |
Spacing |
0.018mm(customize) |
Hole shape: |
Round |
Surface finish: |
Polished |
Features: |
No burrs,No broken point,no plugging holes |
Application: |
Fiber filter,Textile machines or customize |
Certificate: |
RoHS,ISO |
Inspection: |
Two-dimension inspection machine,magnifier |
Other Related Items | |
Price: |
According to product specification |
Sample Offer: |
Within 3-6 days |
Payment: |
T/T,L/C,Paypal,Western Union |
Lead time for mass production: |
Within 6-10 days after payment |
Production ability: |
10000pcs/week |
Metal process methods available: |
Stamping,Chemical etching,Laser cutting |
Acceptable file format: |
DWG,DXF,IGES,PDF,JEPG |
standard met: |
Customer specification,2D CAD drawing |
What's the advantage of photo etching? |
1.Easy for adjustments that embossing also possible fo half the thickness leave |
2. Can half etching company´s logo |
3.Photo etching filter for liquids or gased can have high accurancy to +/-0.01mm,what´s more, the quality is high too |
4.Be suitable for thin and microscopic fabrication on metals, will not change the material specific after etching |
5.Two types of image files ( DXF/DWG) enabled |
6.Our special team makes possible quick delivery for prototypes |
Benefits of photo etching compared with stamping |
No need for expensive DIE´s |
Can be fabricated more thinner metals(t=0.025-1.2 mm) |
Pore complex and groove can also easily adjust the depth or g |
our service :
1.Your inquiry related to our products or prices will be replied in 24 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized requirements we can help you to design and put into product.
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area,ideas of design and all your private information.
6.Sample can be supplied.
7.We also have strictly quality control
8.Delivery time strictly according to the contract
Our Advantages:
1. Low cost for molding or tooling
2. Advanced & Standardization workshops and facilitates.
3. High-tech and high precision manufacturing equipment.
4. Strict ISO14001:2004 , ISO9001:2008 standards.
5. ROHS compliant & enviroment friendly products.
6. Professional technical specialists and management personel
7. 100% in house inspection before delivery
8. All OEM/EDM is welcom
Want to customized the mesh:
1. Please send us your drawing in .dxf or .dwg format, telling us the size of the mesh, hole diameter and hole open area.
2. We can also supply the Injection molding. Mould open time is about 15-25 working days.
3. Material of the metal filter mesh can be stainless steel or Ti-Titanium, thickness is about 0.1, 0.12, 0.15, 0.2 mm. Smallest hole diameter 0.1 - 0.4 mm
Production Description | |
Thickness(mm): |
0.1mm,0.15mm.0.18mm,0.2mm |
Feature: |
No burrs,no broken lines. |
Price: |
According to material,thickness,tolerance. |
Production ability: |
1000sq/day |
Samples offered: |
samples charges needed and lead time 3days,For large order quantity samples can be free offered |
Lead time for mass production: |
One week |
Inspection: |
Two dimensional measurement machine |
Etching advantages | |
No need open tooling or moulding,and the drawing can be received in any condition with low cost | |
Can be half-etching,and add company logo | |
High tolerance,the min tolerance can be +/-0.0075mm | |
Complex outshape and holes can accept without extra cost | |
No burrs,no dents,no deformed lines | |
Can accept material thick ranged from 0.1-1.0mm | |
our photo chemical etching technology has a wide experience in the manufacture of metal filters, meshes, screens and grids. Key requirements include high accuracy, fine apertures, no “breaks” in the bars and no burrs.
solutions customized to your individual requirements.
Filters, meshes, grids and screens are typically used in a variety of environments. One may be trying to restrict large matter from passing through a pipe or separating specific substances during an experiment. The key requirements remain, and are all available from Photo etching,.
Packaging Detail: 1.Using paper bag in the fist layer
2.Then PE bag in the second layer
3.Foam in the packing box
4.wooden box outside Delivery Detail: 5-7days
5.Specification:
Thickness:0.3--10mm
Piece:Length:1.0--3.0m Width:1.0--3.0m
Rolls:Length:10--20m Width:1.0--2.0m
According to customers' requirements,Special specification can be customed.
Feature:
1)Easy to install.
2)Beautiful Appearence.
3)Light weight.
4)Various of hole shape and pattern.
5)Good sound absorption effect.
6)Long using life.
7)Accurate size.
Application:
1)Used in speaker grille.
2)Celotex board.
3)Exterior decoration.
4)Industry filtering.
5)Used in chemical machinery, pharmaceutical equipment.
our service :
1.Your inquiry related to our products or prices will be replied in 24 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized requirements we can help you to design and put into product.
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area,ideas of design and all your private information.
6.Sample can be supplied.
7.We also have strictly quality control
8.Delivery time strictly according to the contract
Sample Available:
Yes,but freight fee should be born by you.
1.If make sample according to your artwork,then need to pay for the
sample charge.
2.If just send sample card we made before time for you to test the quality,then sample for free.
Company Basic Information | |
Company Name |
Shenzhen Xinhaisen Technology Ltd. |
Business Type |
Manufacturer,Trading |
Business Scope |
Chemical etching,stamping, High precision metal mesh,Encoder disc, VCM,EMI/TF shield,Filter mesh,Coffee Filter mesh,Metal Cards,Metal Crafts,Metal bookmark,logo,label,sign,tags,Etc. |
Location |
Guangdong, Shenzhen, China |
Year Established |
2012 |
Year Export |
2006 |
Employees |
100-200 |
Engineers |
10 |
Total Revenue |
US$2.5 Million-US$5 Million |
Main Market |
China mainland,America,Eastern Europe,Eastern Asia,Etc. |
Factory Area |
3000 m2 |
Certificate |
ROHS, ISO9001:2008, ISO14001:2004 |
Process Capability | |
The Min. Size |
1mm*1mm |
The Max. Size |
700mm*600mm |
Thickness |
0.03mm-1.5mm |
Thickness Tolerance |
+/-0.005mm |
The Min. Opening precision |
Φ 0.02mm |
The smallest diameter |
0.01mm |
Dimension Tolerance |
+/-0.008mm |
Elastic line tolerances |
+/-0.005mm |
The shallowest depth |
0.01mm |
Depth accuracy tolerance |
+/-0.005mm |
Special Technique |
Second on the bit,No connection point,etching and stamping |
