Home > Electrical & Electronics > Telecommunication & Broadcasting > Other Communication Products > 25W RS485 RS232 Long Range Transmitter and Receiver for Wireless Data Communication

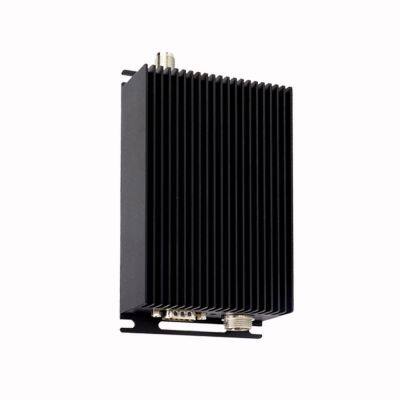

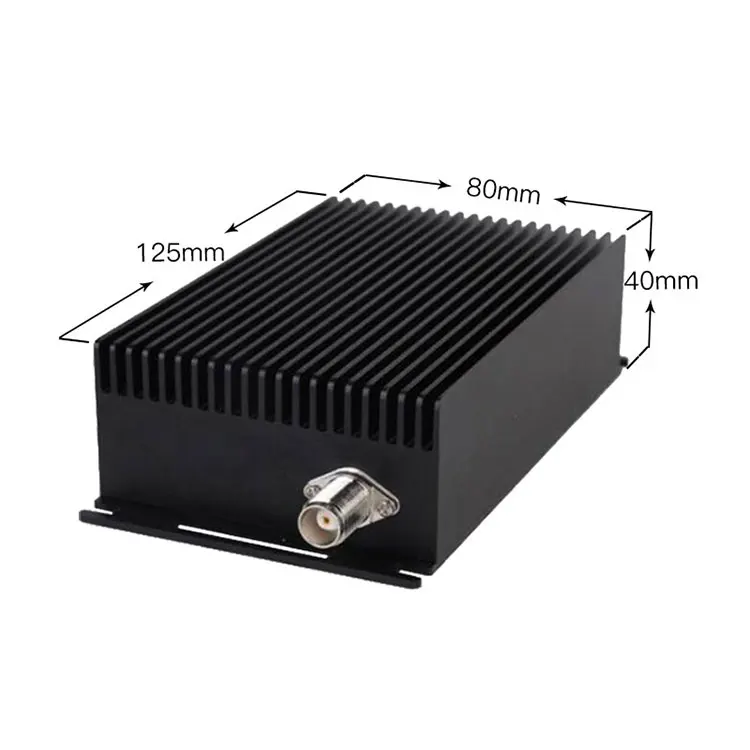

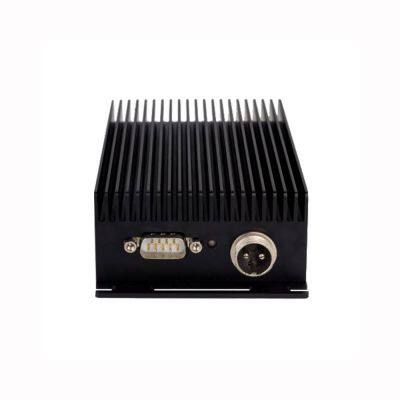

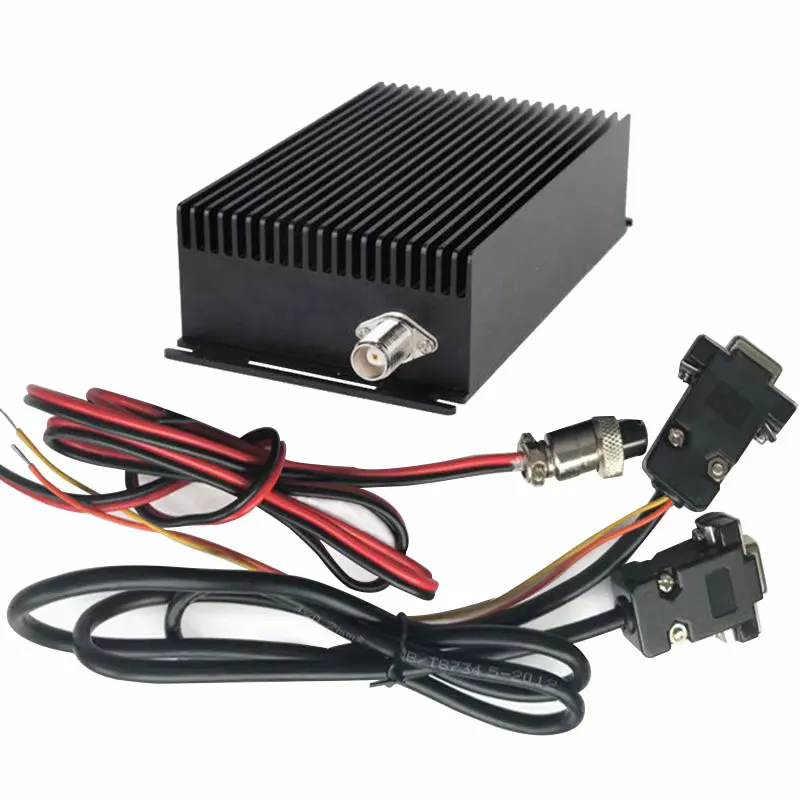

25W RS485 RS232 Long Range Transmitter and Receiver for Wireless Data Communication
US$ 230 - 280
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2016
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
2 days
Related Products
-
50km Long Range Vhf Radio Modem 25w Uhf 433mhz rf Transmitter and Receiver Ttl Rs232 Rs485 Wireless Transceiver Kits ModuleUS$ 210 - 260MOQ: 2 Pieces -
TTL/RS485&rs232 Data Transceiver 19200bps 25w Vhf Radio Marine Modem With 5.5dbi Clip Antenna 30km-50km Wireless Plc ModUS$ 220 - 260MOQ: 2 Pieces
-
RS232&rs485 25W High Speed Radio Data Modem 433mhz 450mhz 470mhz Uhf Wireless Radio Data TransceiverUS$ 220 - 260MOQ: 2 Pieces
-
25W TTL/Rs232&rs485 Radio Data Transmitter Receiver Module 19200bps Radio Modem 30km-50km rf TransceiverUS$ 220 - 260MOQ: 2 Pieces
-
19200bps 25W Uhf Wireless Transceiver Module Rs232&rs485 Marine Vhf Radio Modem 30km Wireless Data CommunicationUS$ 220 - 260MOQ: 2 Pieces
Product Features
♦Support 5W,10W,15W,20W,25W software adjustable
♦Support frequency VHF(136MHZ-174MHZ,220-240MHZ)UHF(410MHZ-470MHZ) user program;
♦RS232&RS485 2 interface default,TTL can be set in factory;
♦High receiving sensitivity up to -125dBm;

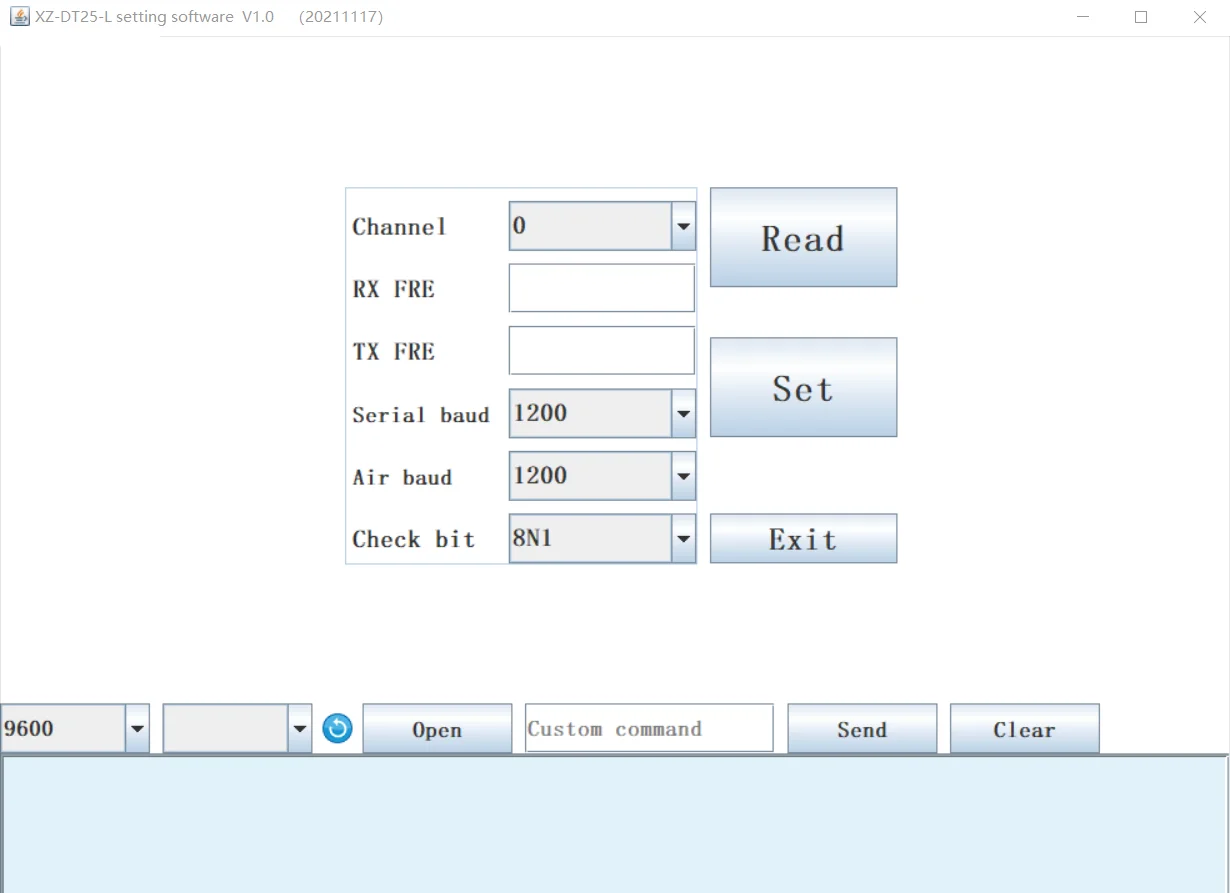

♦Over-the-air data rate from 1200bps to 115200bps and baud rate 1200-115200bps user programming;
♦Short transmitting-receiving transfer time; communication delay less than 3Ms.
♦RS232&RS485 2 interface default,TTL can be set in factory;
♦High receiving sensitivity up to -125dBm;
♦Over-the-air data rate from 1200bps to 115200bps and baud rate 1200-115200bps user programming;
♦Short transmitting-receiving transfer time; communication delay less than 3Ms.
Technical Parameters

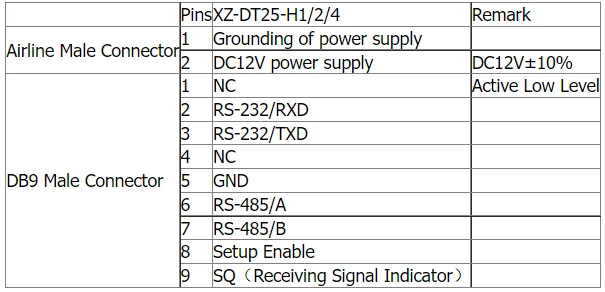

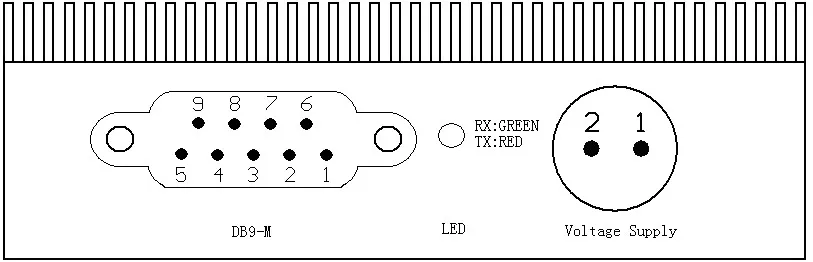

Pin Definitions
Applications
* Marine Communication
* water wells, water and waste water treatment monitoring system
* Oil and gas production, pipeline monitoring, gas distribution, heat network monitoring
* Power scheduling, distribution automation, load control
* GPS positioning system, mobile data transmission
* Vessel (UMV) monitoring and control, robot control data link
* Army, police communications
* Earthquake, meteorology, environmental protection and urban lighting control
* Railway, transportation, metallurgy, chemical industry and industrial automation process control
* Industrial remote control, telemetry, automated data acquisition system
* water wells, water and waste water treatment monitoring system
* Oil and gas production, pipeline monitoring, gas distribution, heat network monitoring
* Power scheduling, distribution automation, load control
* GPS positioning system, mobile data transmission
* Vessel (UMV) monitoring and control, robot control data link
* Army, police communications
* Earthquake, meteorology, environmental protection and urban lighting control
* Railway, transportation, metallurgy, chemical industry and industrial automation process control
* Industrial remote control, telemetry, automated data acquisition system
