Hybrid Diamond/CBN Grinding Wheel for Fluting, Gashing, Clearance Angle CNC Grinding

Hybrid Diamond/CBN Grinding Wheel for Fluting, Gashing, Clearance Angle CNC Grinding thumbnail-1
Hybrid Diamond/CBN Grinding Wheel for Fluting, Gashing, Clearance Angle CNC Grinding thumbnail-2
Hybrid Diamond/CBN Grinding Wheel for Fluting, Gashing, Clearance Angle CNC Grinding thumbnail-3
Hybrid Diamond/CBN Grinding Wheel for Fluting, Gashing, Clearance Angle CNC Grinding photo-1
Hybrid Diamond/CBN Grinding Wheel for Fluting, Gashing, Clearance Angle CNC Grinding photo-2
Hybrid Diamond/CBN Grinding Wheel for Fluting, Gashing, Clearance Angle CNC Grinding photo-3
US$ 10 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
E-Grind
Place of Origin:
China
Model Number:
Profile Grinding
Contact Supplier Request Quote Chat Now
Henan E-Grind Abrasives Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name E-Grind
Place of Origin China
Model Number Profile Grinding
Shape Other, 1A1, 1V1, 12V9, 11V9 etc
Bonding Agent Other
Abrasive Other, Superabrasive

Hybrid wheels ensure higher material removal without compromising on the surface finish, while ensuring considerable reduction in cycle times. These wheels can be used for both Fresh tool manufacturing and re-sharpening, on CNC Tool and Cutter Grinders.

Hybrid wheels can provide below benefits:
1)Extremely high stock removal rates
2)Maximum cutting ability
3)Easy dressing
4)Higher productivity
5)Shorter process time during flute grinding
6)Low grinding forces
7)High process stability
8)Quiet and even grinding process
9)Best tool quality

Hybrid diamond and CBN wheels are used for Fluting, Clearance & Gashing grinding operations.

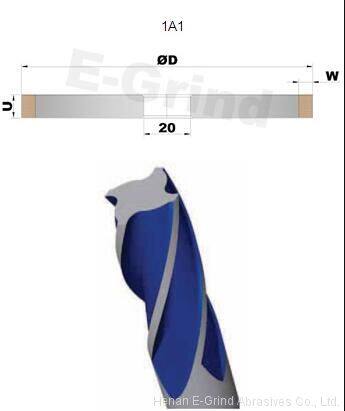

Fluting wheel 1A1
D T H X Grit Bond Conc.
75/100/125/150 6/10/12/15/20 20/31.75/32 10 D107-D54 Hybrid 100%-125%

1A1 wheels are used for grinding the tool fultes to remove massive amounts of stock.
Recommended speed is 14 - 18m/s.

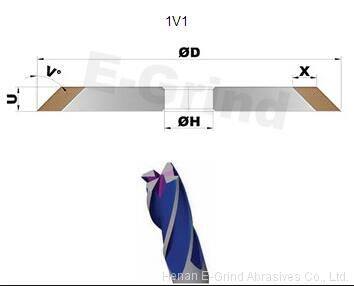

Gashing wheel 1V1
D T H X V Grit Bond Conc.
75/100/125/150 6/10/12/15/20 20/31.75/32 10 10/15/30/15/60 D107-D54 Hybrid 100%-125%

1V1 wheels are used mainly for gashing. Also can be used for fluting if angle less than 20 degrees.
Recommended speed is 20 - 30m/s.

Gashing wheel 12V9
D H U X V Grit Bond Conc.
100/125 20/31.75/32 3 10 45 D107-D54 Hybrid 100%-125%

12V9/45 wheel is an alternative for Gashing to replace 1V1 wheel.
Recommended speed is 20 - 30m/s.

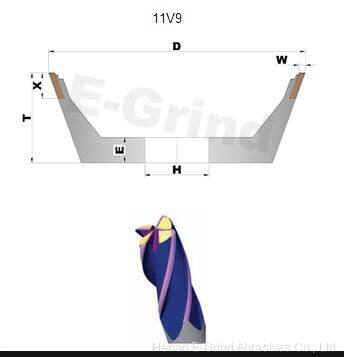

Clearance wheel 11V9
D H U X V Grit Bond Conc.
100/125 20/31.75/32 3 10 45 D107-D46 Hybrid 100%-125%

11V9 wheel are used for grinding cutting edge of OD and ends. Need finer grit size to offer better
surface.
Recommended speed is 25 - 35m/s.

Product Tags: Hybrid Wheel , Grinding Wheel , Diamond and CBN Wheel
