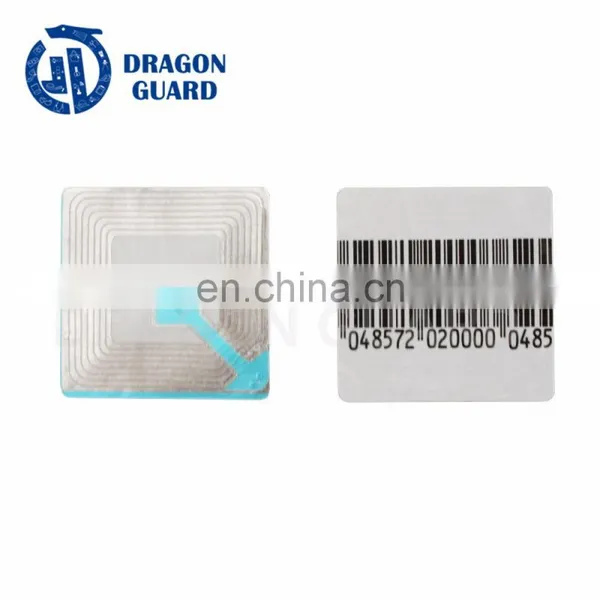

8.2 MHz EAS LAbel -- 40*40mm | |
Label Size (MD x TD) |
40*40mm |
Substrate |
20μm |
Inductor Side |
Aluminium, 60μm |
Capacitor Side |
Aluminium, 20μm |
Max.Thickness |
200μm |
Shelf life of 2 years if stored at |
10℃ to 25℃(50° to 70°F) and 35% to 65% RH |
Service Temperature |
-40° to 60℃(-40°F 140°F) |
Application Temperature |
Above 0℃(32°F) |
Resonance Frequency |
8.2MHz(±3%) |
Effective Signal Volume |
2000cm3 |
Quality Factor |
>80 |
Deactivation Fieldstrength |
0.9A/m—1.5A/m |
Operating Distance |
Up to 1.6m(5.2ft.) in Gate Configuration |
Standard Packaging Format |
Label facing out |
Quantity per Roll |
1000pcs or customized |
Roll Length |
42.5 |
Rollo Diameter Outer |
145mm |
Cardboard Core Diameter Inner |
76.2mm |
Box Packaging (Roll) |
20 Rolls |
Box Packaging (Labels) |
20000 Labels |
Box Gross Weight |
10.5kgs |
Box Dimension |
29*29*23cm
|
Adhesive test data(Peel Force) |
First stick: 46 CF |
20 min: 50.7 CF | |
24 hrs: 50.9 CF | |
Advantage:
1. Stong adhesive, using the Henkel glue with 50.9 CF Peel Force ,neat and smooth appearance,
hard to be torn off from products.
2. High Q value and 9 laps coil provide RF label a super-wide simple operation.
3. Strict production process. Defective rate is 0.03%.
4. Complete specification ranges, provide Draogn Guard RF label a larger
selection of color, size and printing plate.
5. Different size and material meet all your special requirementes:
6. High detection distance ans sensitivity.
Where the RF label can be used?
Book store, cosmetic store, supermarkets, etc.
What you should pay special attention?
1. Q: Are you a factory or trading company?
A: We are factory, founded in 2008. ISO 9001 certificated factory.
2. Q: Where is your factory located? How can I visit you?
A: We are in Xuzhou, Jiangsu Province. About two and a half hours by high-speed rail from Shanghai, about three hours by air from Shenzhen
All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How can I get some samples?
A: Free samples can be provided for your evaluation.
4. Q: How does your company and factory do regarding quality control?
A: Every products will be detected after producing and approved by ISO9001 certificate,below is our testing process:
...
