DRAGON GUARD eas security label rf label barcode 8.2mhz 4x4cm
8.2 MHz EAS LAbel -- 40*40mm | |
Label Size (MD x TD) |
40*40mm |
Substrate |
20μm |

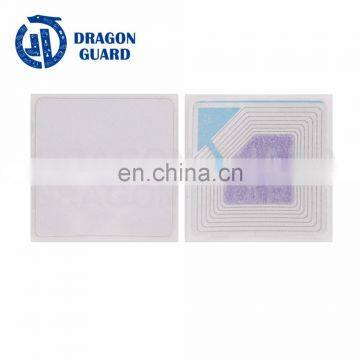

Inductor Side |
Aluminium, 60μm |
Capacitor Side |
Aluminium, 20μm |
Max.Thickness |
200μm |
Shelf life of 2 years if stored at |
10°C to 25°C(50° to 70°F) and 35% to 65% RH |
Service Temperature |
-40° to 60°C(-40°F 140°F) |
Application Temperature |
Above 0°C(32°F) |
Resonance Frequency |
8.2MHz(±3%) |
Effective Signal Volume |
2000cm3 |
Quality Factor |
70 |
Deactivation Fieldstrength |
0.9A/m—1.5A/m |
Operating Distance |
Up to 1.6m(5.2ft.) in Gate Configuration |
Standard Packaging Format |
Label facing out |
Quantity per Roll |
1000pcs |
Roll Length |
42.5 |
Rollo Diameter Outer |
145mm |
Cardboard Core Diameter Inner |
76.2mm |
Box Packaging (Roll) |
20 Rolls |
Box Packaging (Labels) |
20000 Labels |
Box Gross Weight |
10.5kgs |
Box Dimension |
29*29*23cm
|
|
Adhesive test data (Peel Force) |
First stick: 46 CF |
20 min: 50.7 CF | |
24 hrs: 50.9 CF | |
Advantages
1. Stong adhesive, using the Henkel glue, neat and smooth appearance, hard to be torn off from products.
2. High Q value and 9 laps coil provide RF label a super-wide simple operation.
3. Strict production process. Defective rate is 0.03%.
4. Complete specification ranges, provide Draogn Guard RF label a larger
selection of color, size and printing plate.
