1. Specifications:
Pressure range: 1bar, 2bar, 5bar ~ 400bar (gauge)
Power supply: 5V + 5%
Output: 0.5-4.5V (10%-90% of power supply voltage ), 4-20mA
With amplifier.

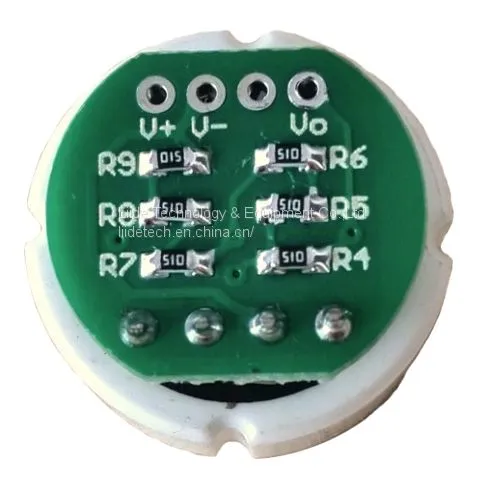

2. Wire connection:
V+ (red): power supply
V- (black): Ground
Vo (yellow): signal output
Range (bar) |
2 |
5 |
10 |
20 |
30 |
50 |
100 |
200 |
400 |
Overload (bar) |
4 |
10 |
20 |
40 |
60 |
100 |
200 |
400 |
600 |
Ordering information
Model selection | ||||
LCPM |
Ceramic Piezoresistive Pressure Sensor Module/Chip |
|||
Pressure range |
002 |
0-2bar |
||
005 |
0-5bar |
|||
010 |
0-10bar |
|||
020 |
0-20bar |
|||
050 |
0-50bar |
|||
100 |
0-100bar |
|||
200 |
0-200bar |
|||
400 |
0-400bar |
|||
Electrical connection |
W |
Wires |
||
I |
4 Pins |
|||
P |
Plug |
|||
N |
NTC type |
|||
Output |
V |
0.5V-4.5V |
||
A |
4-20mA |
|||
