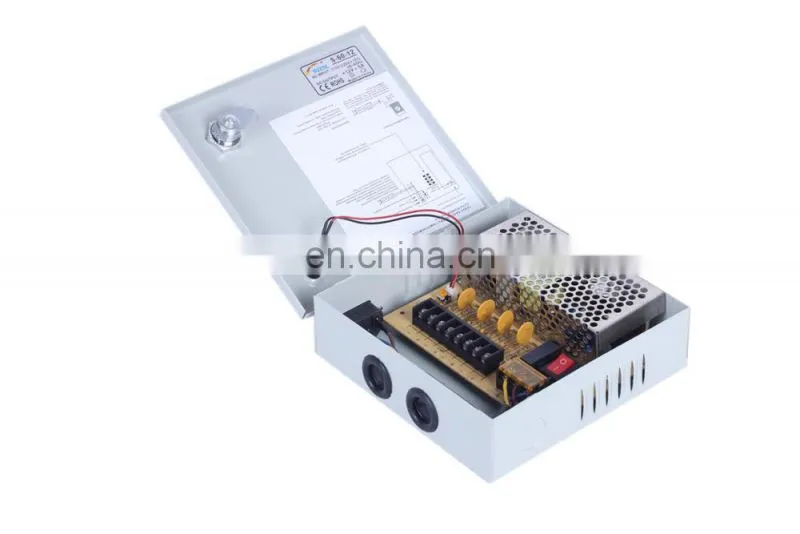

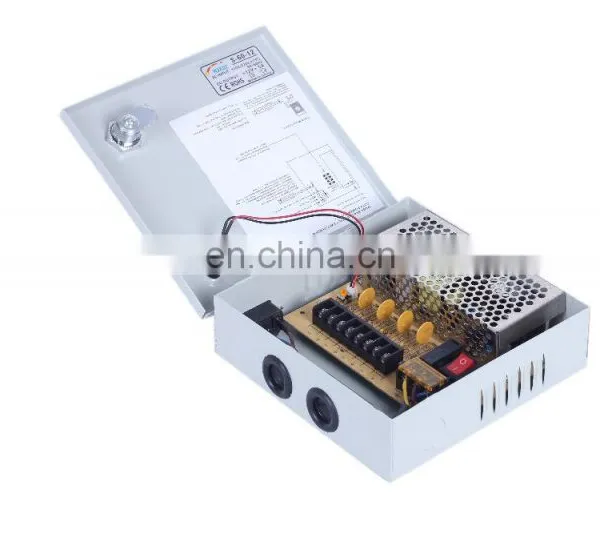

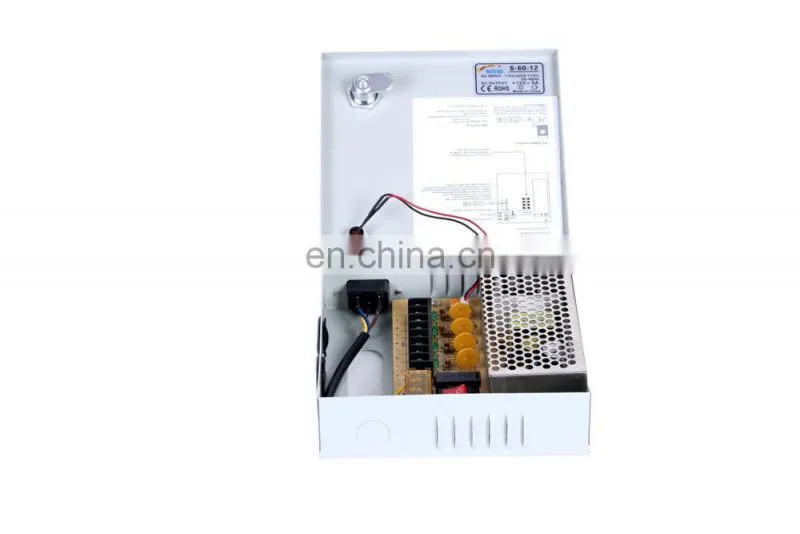

60 Watt Screen CCTV Switching Power Supply Driver Full Range AC Input
Applications:
* CCTV camera & screen
* Stage power supply
* Communication machine
* Security monitor
* Digital monitor
* Industrial equipment
* Outdoor LED light
Descriptions:
1. Protection: short-circuit, over load, over voltage
2. Ultra slim size, light weight
3. Full range AC input
4. 100% full load burn-in test
5. High efficiency and reliability and long life span
6. Pure copper transformer
7. Built-in EMI filter
8. High frequency capacitor
Specifications:
Switching power supply |
WJX-CCTV-60W-12V |
|
OUTPUT |
DC Voltage |
12V |
Current Range |
0~60A |
|
Rated Current |
5A |
|
Rated Power |
60W |
|
Ripple & Noise(max.) |
<250mVp-p |
|
Voltage ADJ.Range |
4.5~5.6V |
|
Voltage Tolerance |
+/- 2.0% |
|
Line Regulation |
+/- 0.5% |
|
Load Regulation |
+/- 1.0% |
|
Setup,Rise Time |
200ms,100ms/230VAC |
|
Hold up time |
20ms/230VAC |
|
INPUT |
Voltage Range |
110-260VAC |
Frequency Range |
47-63Hz |
|
Efficiency(Typ.) |
80-88% |
|
AC Current |
0.62A/230VAC |
|
Inrush Current(max.) |
60A/230VAC |
|
Leakage Current |
< 0.5mA /240VAC |
|
Protection |
Over Load |
105 ~ 150% rated output power |
Protection type: Constant current limiting,recovers automatically after fault condition is removed | ||
Over Voltage |
115%~ 135% |
|
Protection type: Shut down O/P voltage,re-power on to recover | ||
Over Temperature |
90℃ +/- 5℃ |
|
Protection type: Shut down O/P voltage,recovers automatically after temperature goes down | ||
Environment |
Working Temp. |
-40 ~ +60℃ (Refer to output load derating curve) |
Working Humidity |
20 ~ 90% RH, non-condensing |
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
|
Temp.Coefficient |
+/-0.03%/℃ (0 ~ 50℃) |
|
Vibration |
10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes |
|
Safety |
Safety standards |
CE & RoHS |
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
Isolation Resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH |
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature. |
|
Why Choose DESALEN:
* Over 10 years of professional experience in designing and production.
* Focus on switching power supply and adaptor only for 10 years.
* 100% raw material testing PCBA testing ,Aging testing.
* Good quality with very competitive price.
* Short lead time: from 3 to 30days.
* Many years OEM / ODM experience.
* Low MOQ, sample orders and small orders are welcome.
* CE / FCC / RoHS Approval.
