HIG automatic adhesive label sticker printing machine
- 20 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
- Automatic Steam Shrink Machine for Bottle
- Shrink Sleeve Steam Tunnel Machine
- Steam Shrink Sleeve Label Machine For Bottle
- PVC Sleeve Label and PET Bottle Steam Shrink Tunnel Quality Choice Supplier's Choice
- PET Bottle Shrink Sleeve Steam Shrink Tunnel Quality Choice
- Automatic Heat Shrink Tunnel Machine
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, automatic adhesive label sticker printing machine | Packaging Type: | Bottles |
Packaging Material: | Plastic, Other, Plastic, automatic adhesive label sticker printing machine | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380 / 220V AC | Power: | 2.0 KW | Place of Origin: | Shanghai, China |
Brand Name: | HIG | Model Number: | HTB-100P | Dimension(L*W*H): | 2000(L) X 900(W) X 2000(H) |
Weight: | 400KG | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

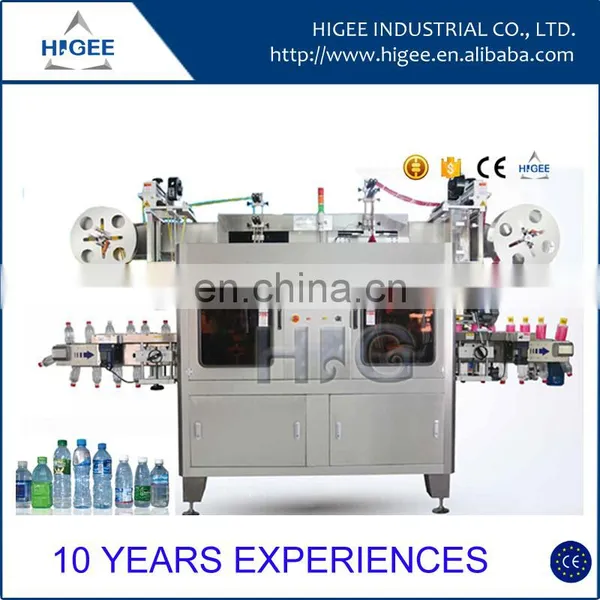

Model No: HTB-100P AUTO SHRINKING SLEEVE LABELLER
(Alibaba Trade Assurance Gold Supplier)
![if !vml]><![end
If you need labeling machine, please check below picture for more details.
Application: Round bottles, Square bottles, Flat bottles, Curve bottles.
Features:
1. Special holder holding style, stable label guiding.
2. Adopt superior magnalium alloy material, anodizing on surface, easier to be cleaned, resistant to corrosion.
3. Synchronization driving cutting systems, makes the cutting keep a long life span and low cost
4. Adopt HMI controls, Chinese and English can be chosen, easy to operate.
Technical Parameter
Input Power: | 2.0kw |
Input Voltage: | 3Φ380V/220VAC 50HZ |
Cap & Body sleeve Speed | 0-3000 B/H |
Size of host machine” | 1700(L) X 900(W) X 2000(H) |
Bottle type: | 3/5 Gallon bottles |
Label Length: | 40mm-160mm (accept customized) |
Label thickness | 0.03mm-0.13mm |
Materials | PVC. PET. OPS |
Core Inner Diameter: | 5”-10”(Free adjustment) |
Core Outer Diameter: | 500mm-600mm |
Weight: | Roughly 250kg |
Cutter Scope | 50-95mm (customized) |
Main accessory and Function
To keep high quality, all of the machines are manufactured by famous brand component parts,
such as Omron, Sanyo, Panasonic, Siemens, Kinco and so on.
As a factory, we have cost advantage and competitive price.
We hope you will be our customer and you will be satisfied with our machines and service.
Description | Function |
Feeding Unit | Offer the motive of sleeve label running |
Sleeve Label Unit | Storage sleeve label unit. |
Main Frame Elevation Unit | Adjust the main frame height according to the bottle shape. |
Wheeling Unit | Deal with the cutted sleeve label into the bottle |
Blade Plate Unit | Cut off the shooting sleeve label |
Control Unit | Control cutter operation position inside the blade plate. |
Rear Driving Unit | Offer the driving force of sleeve label on the bullet. |
Front Driving Unit | Clamp the bullet |
Electric Eye Unit | Adjust the best cutting position of sleeve label |
Bottle Detecting Unit | Adjust the sleeve label into the bottle . |
Brush Unit | Make bottle unsleeving label into the required position. |
Bottle Carrying Position Unit | Make the bottle stable , control the label sleeving position |
Bullet Unit | Make the sleeve label enter and blow, convenient to drive and cut. |
Bottle Feeding Screw | Make the bottle separate with same distance, convenient to sleeve accurately. |
We also have Round bottle, Square bottle, Flat bottle, Curve bottles Shrink Sleeve Machine.
For further details, please check below picture.
Export Wooden Case for Shrink Sleeve Sealing Machine
After-sales service:
We guarantee the quality of the main parts within 12 months.
If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship,
brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this
Contract.
Quality guarantee period is within 12 months from B/L date.
The Manufacturer would repair the contracted machines free of charge during the quality guarantee period.
If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair
parts cost.
Installation:
The seller would dispatch his engineers to instruct the installation.
Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country).
Higee Machinery
- Labeling Machine Manufacture! Labeler solution expert!
We are not only Labeler,labeling machine,automatic adhesive label sticker printing machine manufacturer in providing different function Shrink Sleeve LabelingMachine with good experience for many years,but also the professional solution provider to give the most suitable labeling project according to client’s product shape or size either regular or irregular.Our machine is mainly madeof good quality SUS304 stainless steel and equipped with well known Japanese, German, American, Korean or Taiwanbrand parts.
Either the automatic or semi-automatic Labeling machine is smart and durable labeling equipment which is quiteeasy for your operation and maintenance.It’s widely used in such industries as food, medicine, cosmetics, electronics,chemical etc.
Higee Labeling Machinery,Your good choice!
Quick response to your request!
Online orders & Domestic Order
1. Are you factory? |
Yes, we are professional manufacturer based in Shanghai, China.
|
2. What kind of bottles does your machine can sleeve? |
We can supply multidirectional sleeve labeling Applications: variant bottle label, Beer bottle label, Cap sealing label, Full bottle label and Mineral water label. Bottle shape has Square bottle, Half-bottle and Clean products bottles.
|
3. What information should we supply to check the suitable model? |
Please provide us the below information
3-1 How many types of bottle do you have? 3-2 Are they round bottle or square bottle? Please provide us photos of bottles. 3-3 What is The maximum volume and The minimum volume? 3-4 Can you product stand moisture condition?
Then, we'll let you check the suitable model.
|
