China Exported Instant Noodle Pillow Packing Line SJ-320B/D

China Exported Instant Noodle Pillow Packing Line SJ-320B/D photo-1
US$ 6,500 - 8,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Textiles, Other, Food, Beverage, Commodity, Medical, Chemical, Textiles, Instant noodle pillow packing line
Packaging Type:
Cans, Bags, Film, Pouch, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Beverage, Commodity, Medical, Chemical, Textiles, Other, Food, Beverage, Commodity, Medical, Chemical, Textiles, Instant noodle pillow packing line
Packaging Type Cans, Bags, Film, Pouch, Case
Packaging Material Plastic, Paper
Automatic Grade Automatic
Driven Type Electric
Voltage 220V 50/60HZ
Place of Origin Shanghai, China
Brand Name Higee
Model Number SJ-250B Instant noodle pillow packing line
Weight 500KG
Dimension(L*W*H) 3900x950x1500mmq
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Double transducer control
2.Human-machine operation
3.Instant noodle pillow packing line

 Instant noodle pillow packing line

China exported Instant noodle pillow packing line SJ-320B/D

This Instant noodle pillow packing machine is applicable for packing various solid regular objects, such as biscuits, bread, instant noodle,

ice cream,moon cake, candy, medicine,commodity,hardware parts, boxes or trays etc.



China exported Instant noodle pillow packing line SJ-320B/D

Model

SJ-320B/D Instant noodle pillow packing machine

Packing Speed

35-180 bag/min

Bag Size

L(80-330)mm × W(30-145mm × H(5-65)mm

Film Width

80-320mm

Packing Material

OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL

Dimension

(L)3900mm×(W)950mm×(H)1500mm

Heating Power

2.1KW

Motor Power

0.55+0.75KW

Total Power

3.4KW

Overall Weight

600kg





China exported Instant noodle pillow packing line SJ-320B/D

1. No need manually set bag length. During operation the machine can automatically self-detect and set the bag length.

2. Double transducer simplifies mechanic gearing. Instant noodle pillow packing machine is easy to maintain, little wear and long life.

3. The main control circuit takes the single chip developed by our own company. Touch screen display, controlled by transducer.

    Perfect interface between operator and machine. Integrated, direct and convenient operation.

4. The packing speed and bag length is controlled by double transducers. CVT changes speed in a wide range.

    Well match with the former procedure on production line.

5. Highly sensitivity photoelectric device tracking automatically and accurately.

6. Independent temperature control for each seal to make the seal beautiful and tight. Suitable for a variety of packing materials.

7. Intermission charging device, alcohol spraying device and code printer can be mounted.

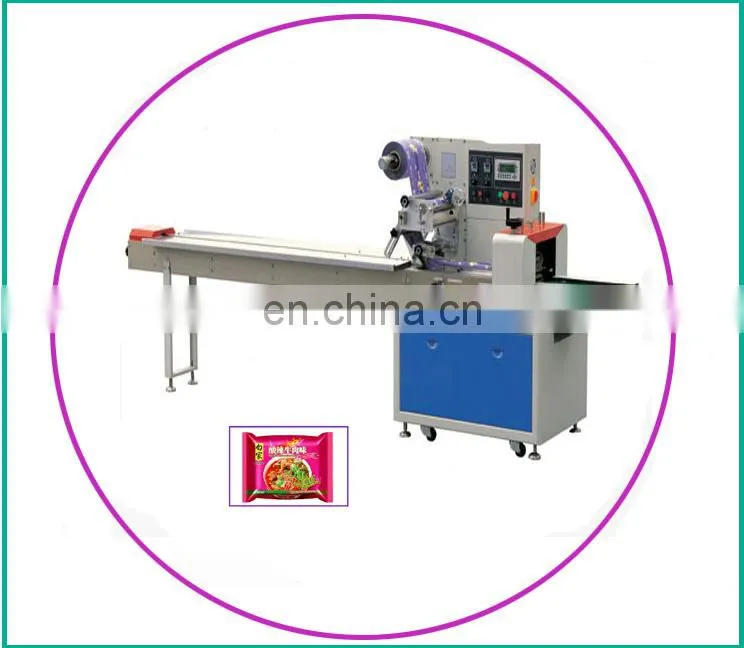

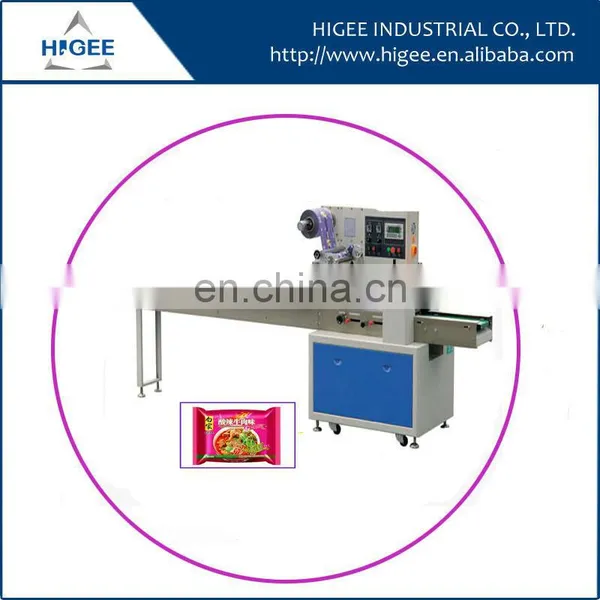

Photo:

China exported Instant noodle pillow packing line SJ-320B/D

China exported Instant noodle pillow packing line SJ-320B/D

China exported Instant noodle pillow packing line SJ-320B/D

China exported Instant noodle pillow packing line SJ-320B/D







Instant noodle pillow packing line
