Our company is a famous enterprise in carton packing machine field and specialized in corrugated carton machines .We are first-class research and development manufacturer of flexo printing and slotting die-cutting machines which is main equipments of China’s printing ,packaging industry.High speed automatic servo feeding,printing die-cutting machine with stacker and so on.
We uphold “Customer first ,quality highest”,producing machines,equipments of world level and serve for clients sincerely is our mission.

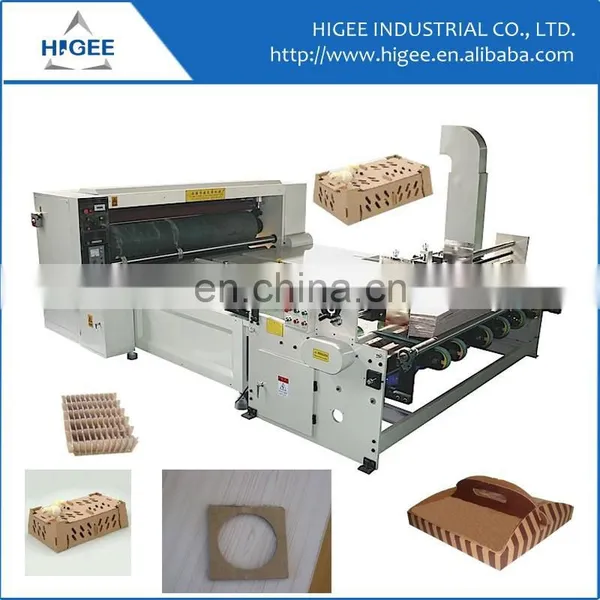

Automatic paper-feeding rotary die-cutting machine
| Model(mm) | YMZ1200*2400 | YMZ1400*2600 | YMZ1600*2800 | YMZ1600*3600 |
| Width | 2400 | 2600 | 2800 | 3500 |
| Maximum feeding size | 1200*2000 | 1400*2300 | 1600*2600 | 1600*3000 |
| Maximum die cutting size | 1200*2000 | 1400*2250 | 1600*2500 | 1600*3000 |
| Minimum feeding size | 350*350 | 400*400 | 400*400 | 400*400 |
| Maximum production speed | 70 pcs/min | 60 pcs/min | 60 pcs/min | 50pcs/min |
| Main motor power | 5.5KW | 7.5KW | 7.5KW | 11KW |
Automatic paper-feeding rotary die-cutting machine is a new type equipment production which solves the question that the original chain paper-feeding die-cutting machine can't process mass continuous production, the continuous paper-feeding guarantee cardboard walk is not only improve work efficiency, but also greatly decreased labor intensity, and reduce defective products.
1. Phase adjustment
1),the planetary gear structure.
2),the figures show that the phase-type instructions, to make operation more convenient, intuitive and accurate.
3), cutting the use of electric digital phase adjustment of 360 degrees (run, stop can be adjusted.) Modulation accuracy of 0.10 mm.
2. Cushion roll repair agency
Electric grinding bodies can be repeated 2-3 times.
3. Cutting roller pneumatic lifting mechanism
Aerodynamic lift and air drop, easy to die, to extend pad life.
4. Differential regulatory agencies
1).To ensure the cutting quality, the cushion roll gear adjusting mechanism installed outside the die roll and pads to ensure the roll speed are equal.
2).Mechanical rotating rollers move around 30 mm and with a radial differential system that allows the average distribution of roller wear can greatly improve the life of the cot.
4. Balancing adjustment for increased stability.
5. Electronic automatically records or set production quantity.
We company is also specialized in those products as followed:
- Fully automatic flexo printing slotting and die cutting machine
- Automatic stacker
- High speed automatic feeding printing and slotting machine
- Automatic feeding printing and slotting machine
- Automatic cardboard line pressing and slotting machine
- High speed automatic rotary die cutting machine
- Automatic feeding rotary die cutting machine
- Automatic creasing and pressing die cutting machine
- Automatic feeding printing and die cutting machine
- High speed automatic carton slotting machine(vacuum feeding machine)
- Automatic carton slotting machine
- High speed automatic carton folder gluer
- Automatic carton gluer
- Automatic carton packer
- 3/5 layer corrugated cardboard production line
- Single face corrugated cardboard production line
- Single face corrugated cardboard production line
- Automatic cardboard laminator
- High speed automatic cardboard laminator
- High speed automatic carton stapler
- Carton stapler
- Carton box automatic stitching machine
