Manufacture price of Corrugated cardboard carton box fold glue machine
- 20 Set / Sets per Month
- Shanghai
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Packaging Type: | Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch |
Packaging Material: | Glass, Metal, Paper, Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | Custom | Power: | Custom | Place of Origin: | Shanghai, China |
Brand Name: | Higee | Model Number: | carton gluing machine | Weight: | custom |
Dimension(L*W*H): | custom | Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

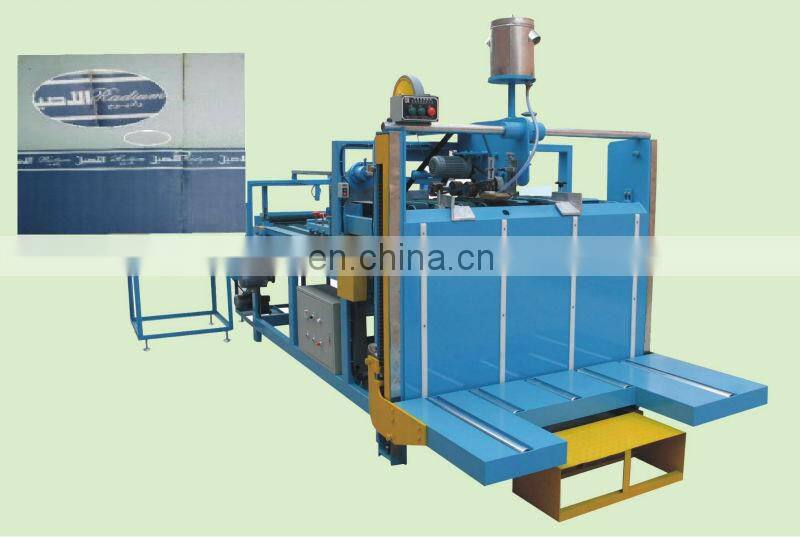

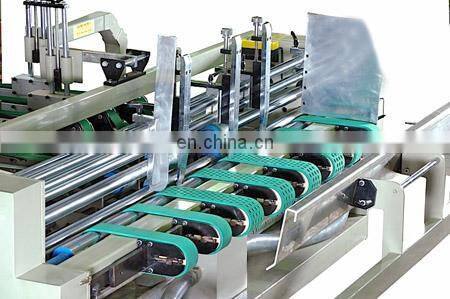

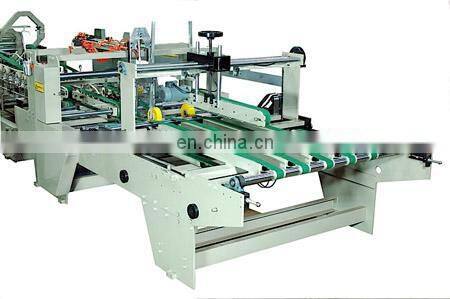

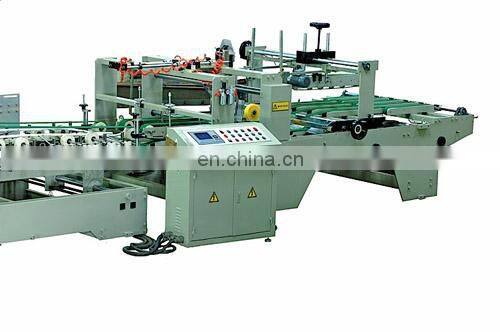

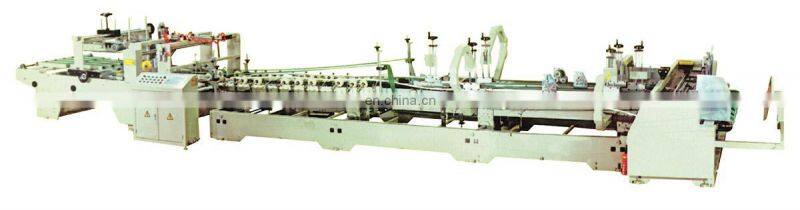

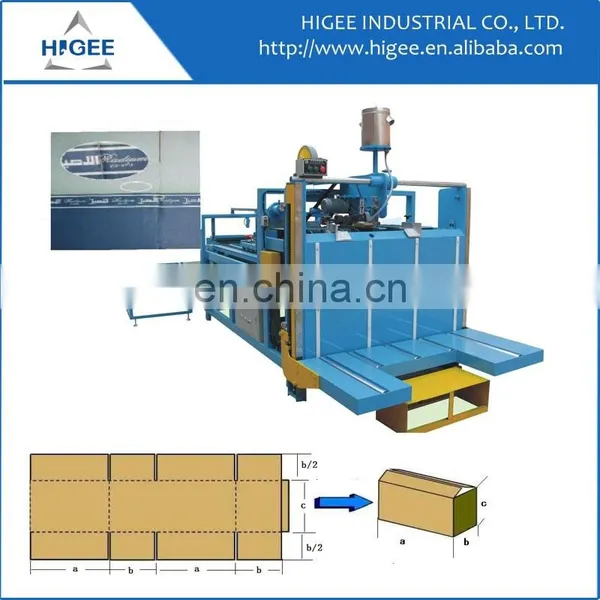

Carton gluing machine
The product description:
1, The average speed stick boxes: 5000-10000/h;
2, Automatic for the paper, automatic coating, automatic folding, automatic calibration, automatic counting, automatic stacking;
3, Frequency control, touch screen input data;
4, Effectively overcome the traditional stick scissors box appears the phenomenon of mouth and tail marks, ensuring accuracy of sticky boxes;
5, For forming a carton;
6, Significant savings in labor and improve efficiency.
Main paramaters:
Modal | YS-2000 | YS-2400 | YS-2800 | |
Specification of the Cardbord
| Max H*L | 1000*2000 | 1000*2000 | 1000*2400 |
Min H*L | 300*800 | 300*800 | 300*800 | |
Distance between the two Grooves B
| 150*600mm | 150*600mm | 150*800mm | |
Distance between the two Grooves C | 150*600mm | 150*600mm | 150*800mm | |
Applicable cardboard theckness(mm) | 2-9mm | 2-9mm | 2-9mm | |
Cementing width | ≤45mm | ≤45mm | ≤45mm | |
Adhesive | Polyvinyl Acetate Emilsion | Polyvinyl Acetate Emilsion | Polyvinyl Acetate Emilsion | |
Sheet feeding method | Friction Feeding | Friction Feeding | Friction Feeding | |
Total power lf the whole machine | 8kw | 8kw | 8kw | |
Compressed air | 0.-1.0Mpa | 0.-1.0Mpa | 0.-1.0Mpa | |
Running speed | 180/Min | 180/Min | 180/Min | |
Power | 380V | 380V | 380V | |
Machine overall dimensions(mm) | 11500*3000 | 11500*3400 | 11500*3800 |
2.Semi-Auto Gluer
Features;
1.This machine is designed of manual folding and feeding, automatic glue application.
2.Easy operation. Size change quickly
3.Sheet gluer min.size240mm.
SPECIFICATIONS:
DATA MODEL | BF-2460 |
Max. Size(L+W)×2(mm) | 2460 |
Min. Size(L+W)×2(mm) | 340 |
Max. Size(W+H)(mm) | 1515 |
Min. Size(W+H)(mm) | 240 |
Height of Feeding(mm) | 900 |
Power(kw) | 4 |
Machine Length(mm) | 5300 |
Machine Width(mm) | 2470 |
Weight(kg) | 2150 |
Speed(m/min) | 40 |
Dimension(L × W ×H)(mm) | 4255X1930X2080(2410) ( Include Gluing Tube) |

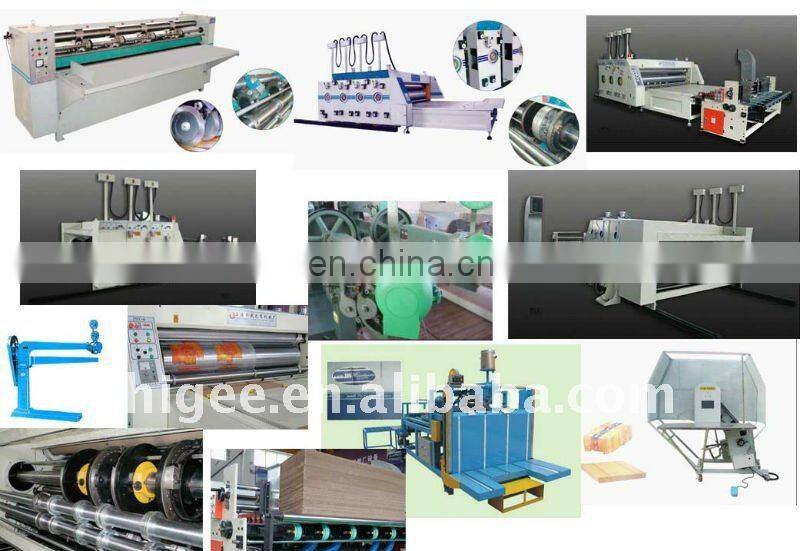

Other machines' photos for carton box:
machinery for carton,Carton making machine, automatic carton making machine, automatic corrugated carton making machine,
box machine, box making machine,
cardboard box making machine, carton box machine, carton box making machine, carton machine, carton machinery,
carton making machine,
corrugated box machine, corrugated box making machine, corrugated carton box machine, corrugated carton machine,
corrugated carton making machine, fully automatic corrugated box machine, grooving machine, paper box machine
