Electric Sightseeing Passenger Bus

Electric Sightseeing Passenger Bus

Electric Sightseeing Passenger Bus Specification:

Energy: only charge
Drive mode: rear drive
Rated crew: 14 (person)
Charging time: 5-8 hours
Battery rated voltage: 48V
Battery rated capacity: 210ah maintenance free battery
Motor power: 4kw
Less than one hundred kilometers consumption: 7
Color: red green blue yellow color optional
The rated load is less than or equal to 1200kg
Direction system: gear rack automatic gap compensation
Brake: four wheel hydraulic brake size: 5255*1225*1963 (mm)
Mileage: 80~100 (km)
Vehicle weight: 876.3 (kg)
The braking distance is less than or equal to 3 (m)
Wheelbase: 4178mm
Maximum climb (no load):30
Maximum speed: 42 (km/h)
Minimum distance from the ground: 0.185 (m)
Minimum turning radius is less than or equal to 11.65 (m)
Front track: 840mm
Rear wheel: 985mm
Ground clearance: 176mm
Turning radius: 11650mm mileage: 80~100kg
Max speed: 42km/h
Climbing ability: 30 degrees
Maximum load: 1080kg
Net weight: 786.3KG
Battery: 48V*8*6V/210AH
Motor: 48V4KW
Controller: 48V400A (CURTIS)
Tire: 205/50-10
Outline dimension: 5225*1225*1963mm

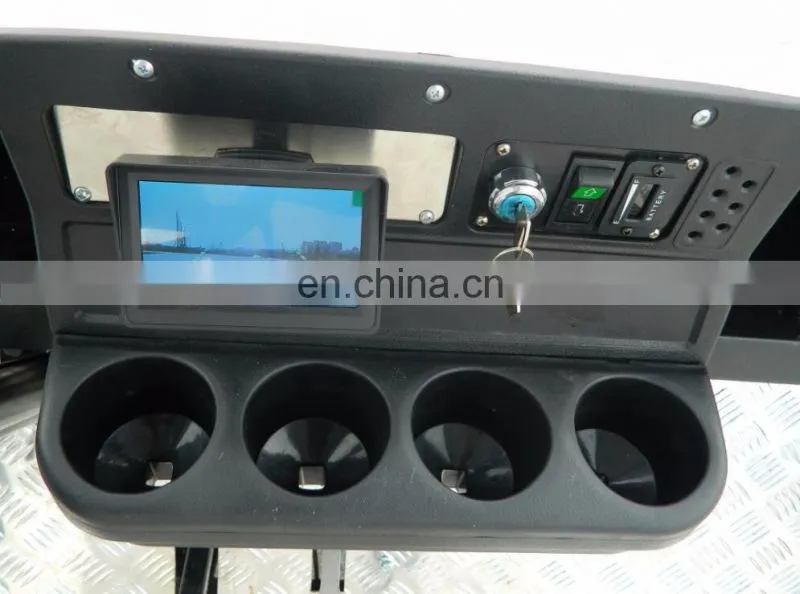

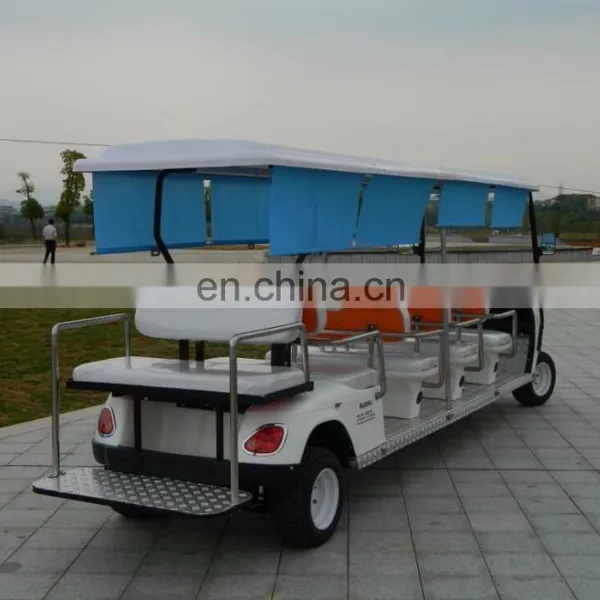

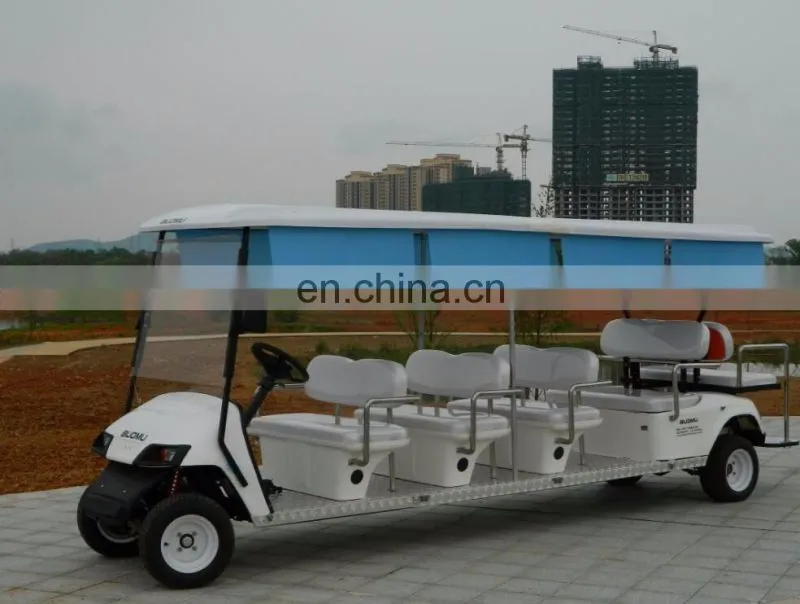

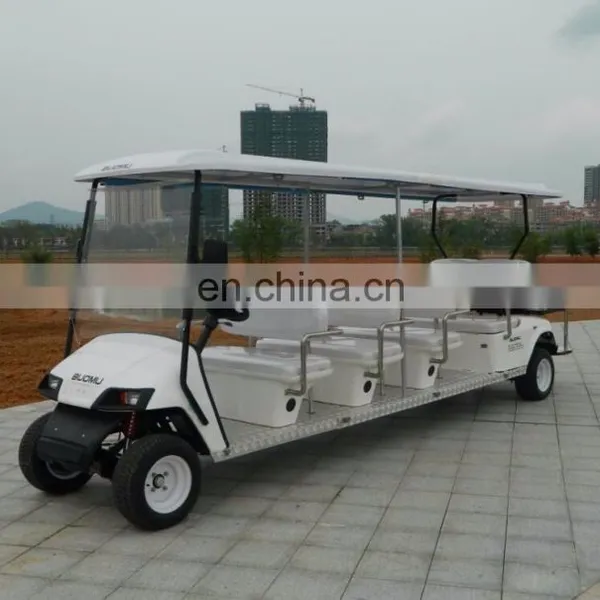

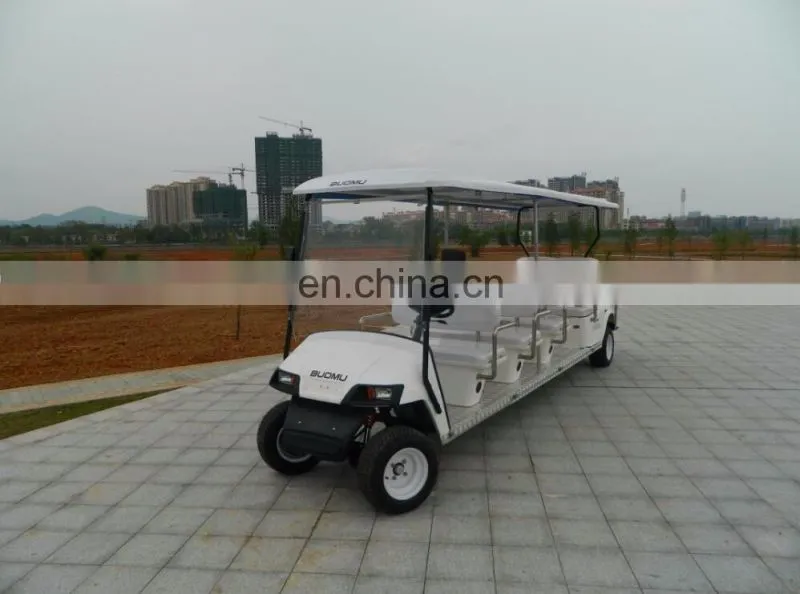

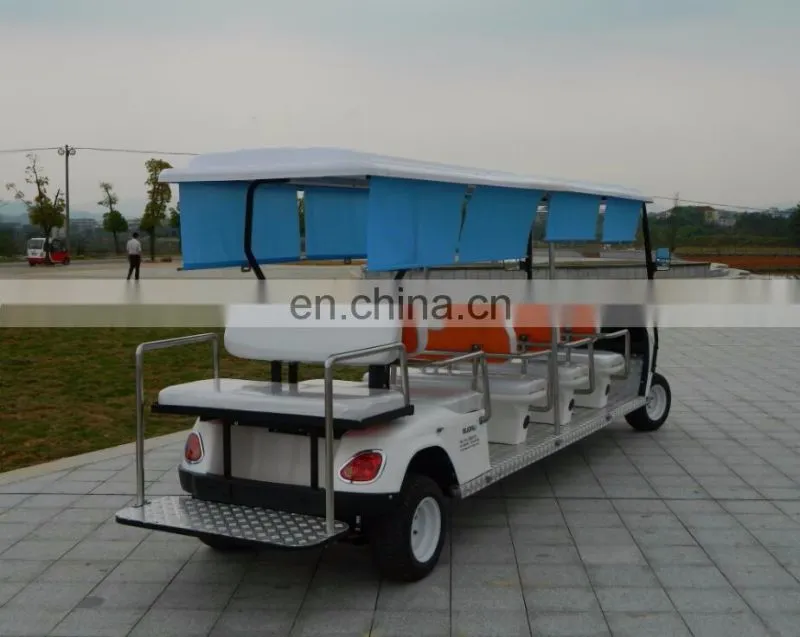

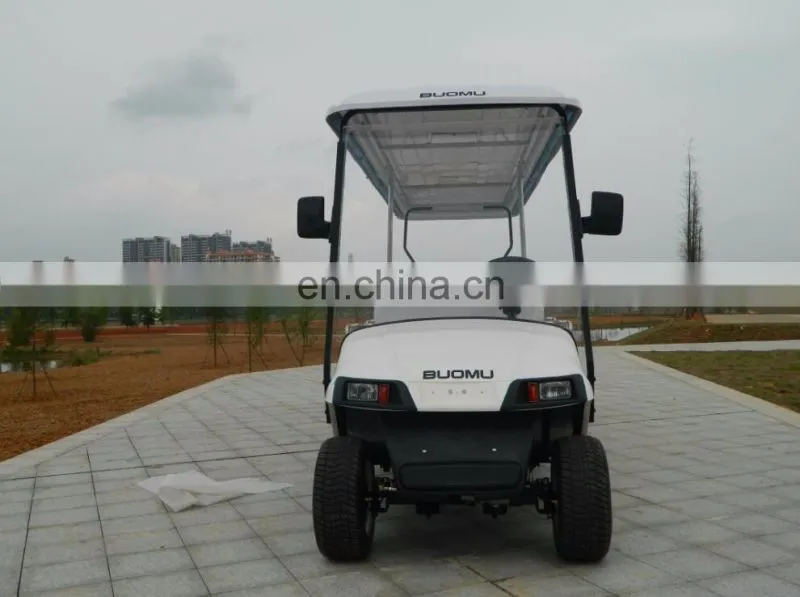

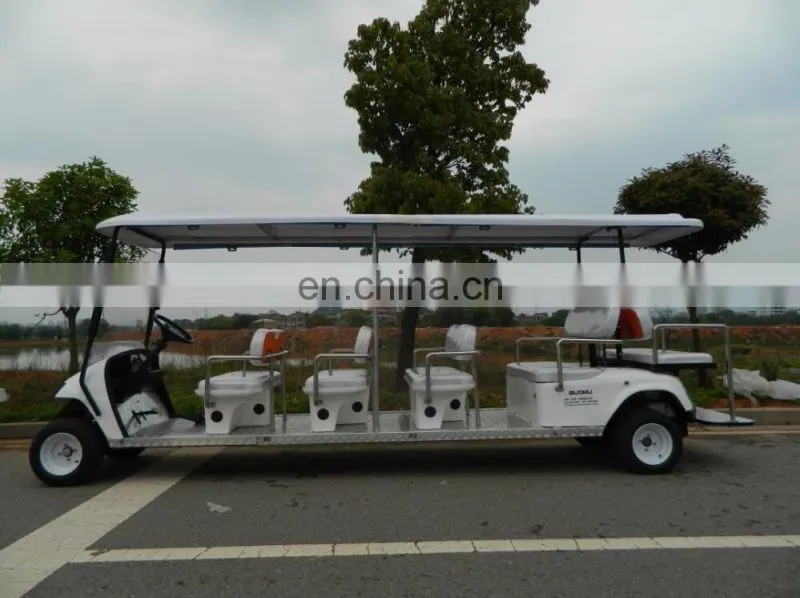

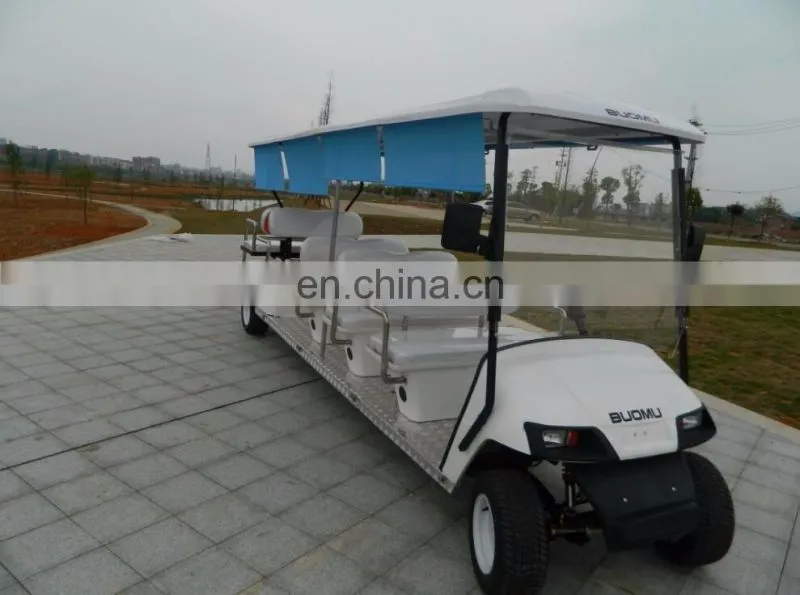

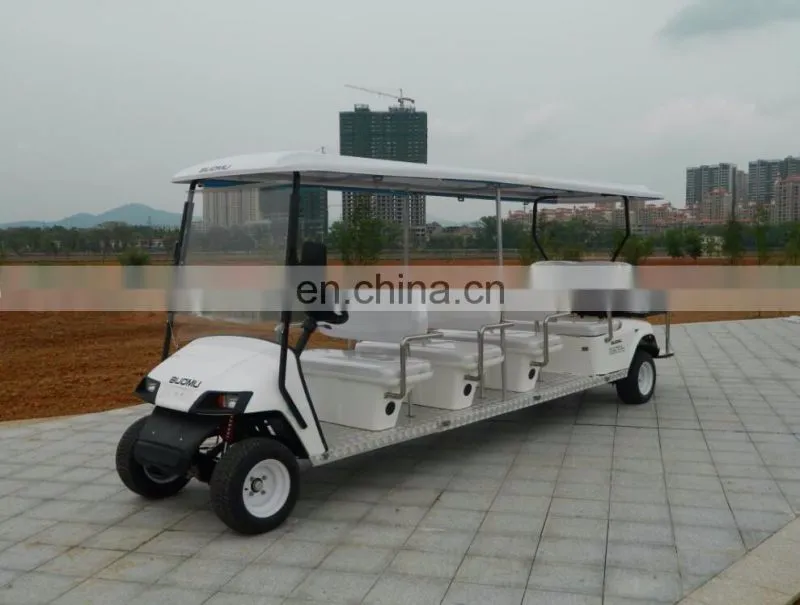

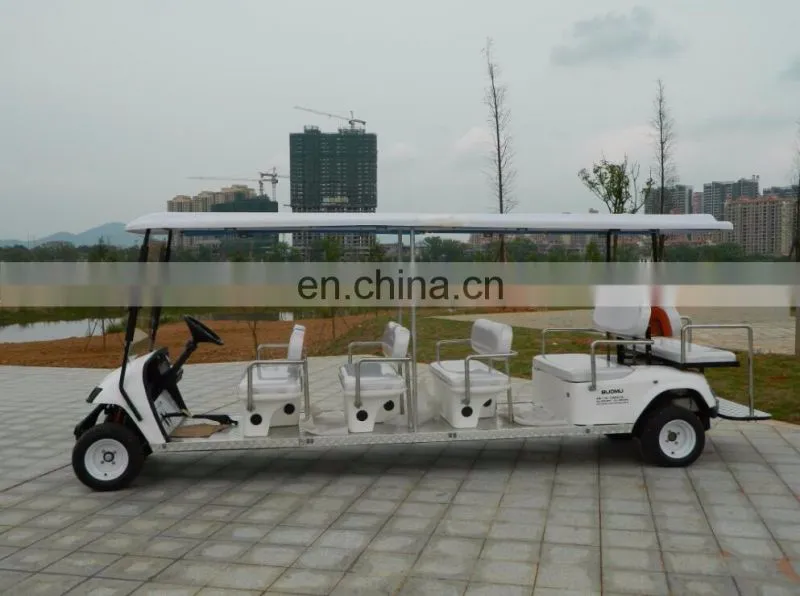

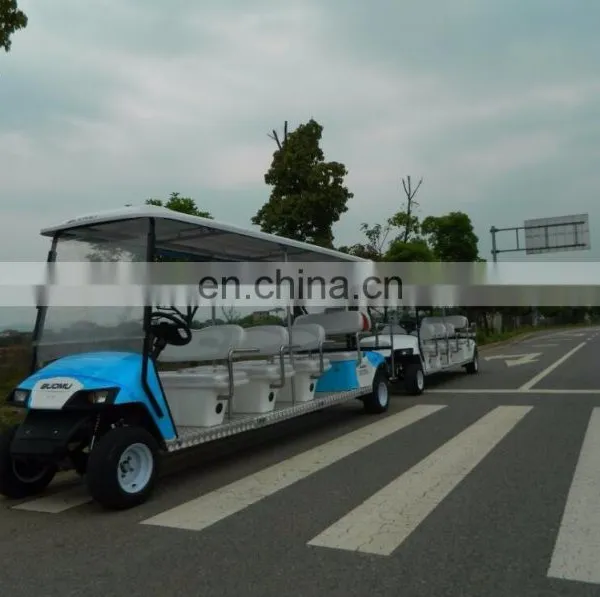

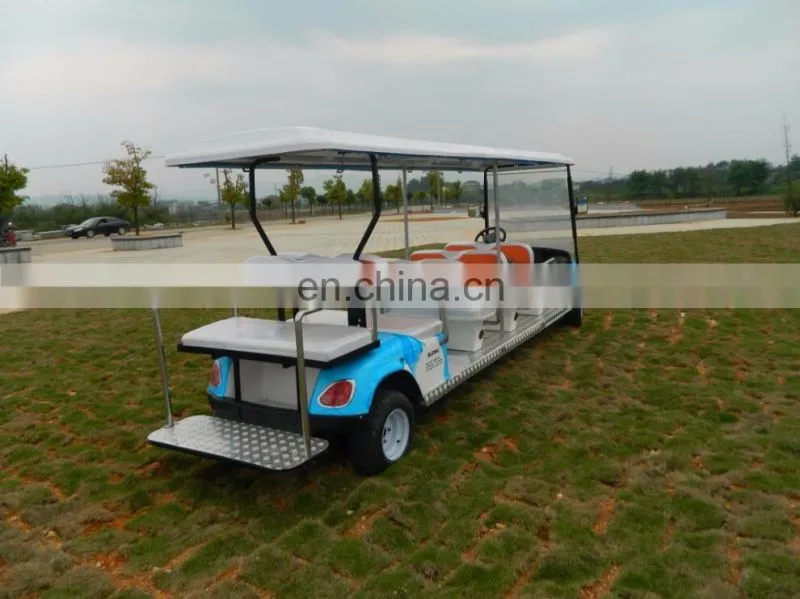

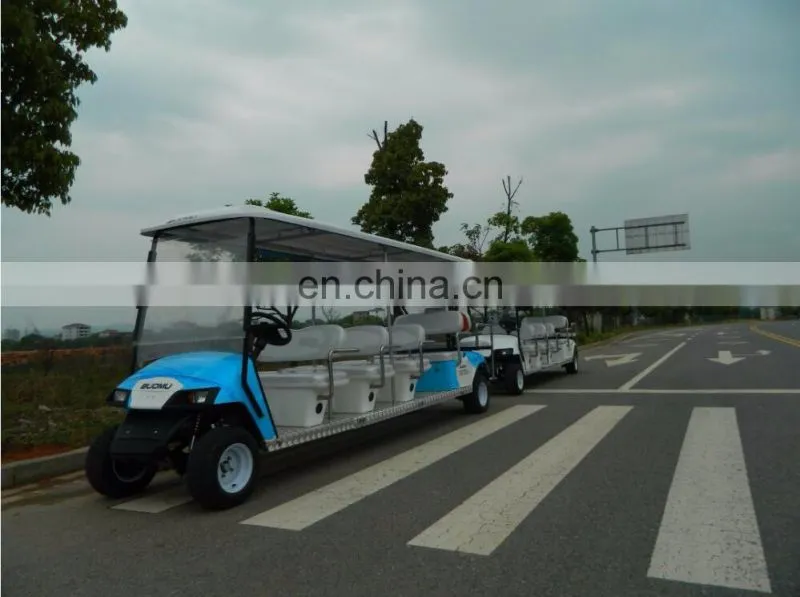

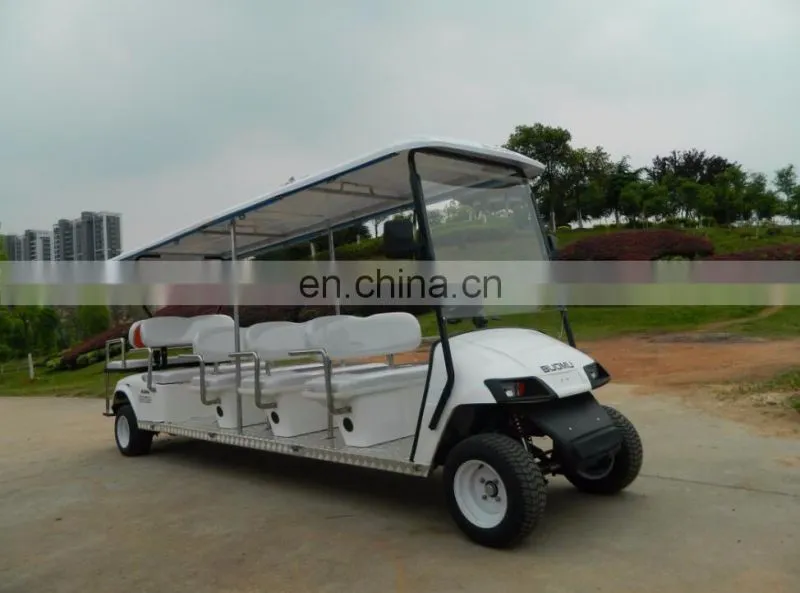

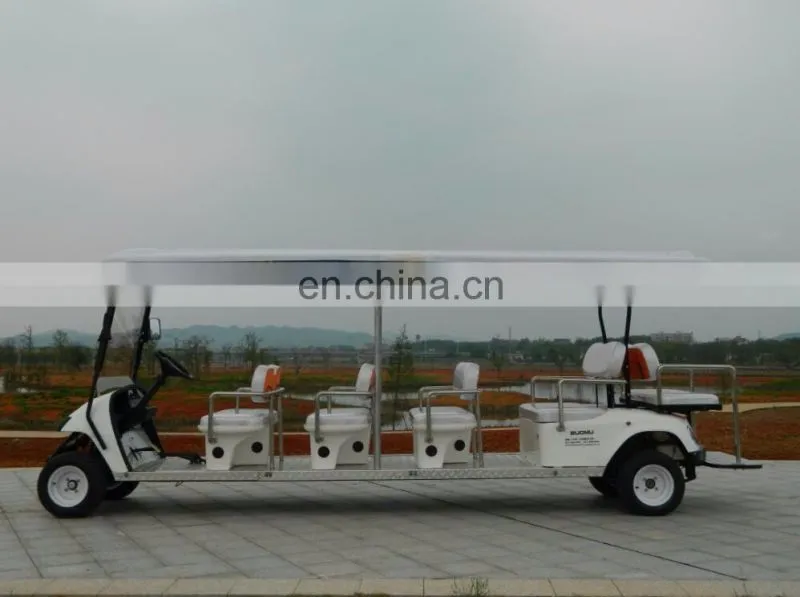

Electric Sightseeing Passenger Bus Pictures:
