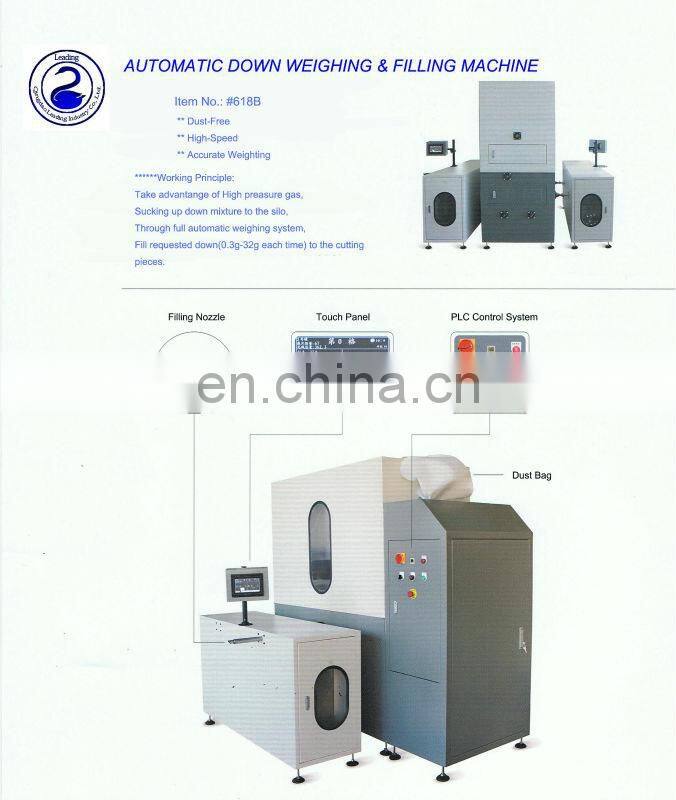

Down Garment Filling Machinery
| Item No. | 618B | Dimension | 2200*1850*2000mm |
| Weighing Ability | 0.3-32g | Accuracy | ±3% |
| Voltage | 220v | Power | 3.5kw |
| Working Efficency | 1-8g/s | Storage Bin Capacity | 5-6kgs |
Description
1. Wide measure, the range of weighing can set 0.3-32 grams once to suit for filling both separate grids and normal grids.
2. High sealing machine structure that keeps the material inside, the workshop is clean, so that prevent the occupational disease and enhances the enterprise image, comply with the standard of the Europe and the US clients.
3. Wide application for different types of down. Such as 50, 60, 70, 80, 90 down can be used.
4. High accuracy weighing module can measure accurately with tolerance less than 0.2g per filling time.
5. Each filling nozzle with two sets of weighing device, save weighing time, improve efficiency, so that save labor cost well.
Min. air demand of air compressor:0.8 m³ /min Up
Power 5.5kw Up
Recommend high pressure pneumatic pump 1.0 Mpa, Min. use of pressure 0.58Mpa
Air tank:0.6 m³ Up, prolong a life of air compressor
Dimension:2200*850*2000mm(1500*500*800mm)
Machine size:2300*2200mm
Min. using area size:3000*5000mm
If you have any questions, please fill free to contact me :)
