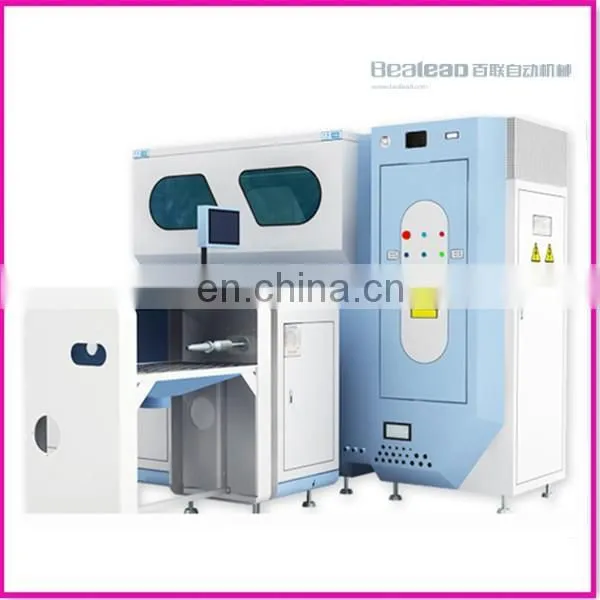

Bealead Machine Manufacturers 818B-S Fully Automatic Down Filling Machinery
| Item No. | 818B-S | Dimension | 2430*850*2040mm |
| Weighing Ability | 0.2-5g | Accuracy | ±2% |
| Voltage | 220v | Power | 7.5kw |
| Working Efficency | 1-8g/s | Efficiency | 1200-1500grids/h |
Description
1. Wide measure, the range of weighing can set 0.2-5 grams once to suit for filling both separate grids and normal grids.
2. High sealing machine structure that keeps the material inside, the workshop is clean, so that prevent the occupational disease and enhances the enterprise image, comply with the standard of the Europe and the US clients.
3. Wide application for different types of down. Such as 50, 60, 70, 80, 90 down can be used.
4. High accuracy weighing module can measure accurately with tolerance less than 0.01g per filling time.
5. Each filling nozzle with two sets of weighing device, save weighing time, improve efficiency, so that save labor cost well.
Min. air demand of air compressor:0.8 m³ /min Up
Power:7.5kw Up
Recommend high pressure pneumatic pump 1.0 Mpa, Min. use of pressure 0.58Mpa
Air tank:0.6 m³ Up, prolong a life of air compressor
Dimension:2430*850*2040mm
Machine size:2500*3200mm
Min. using area size:4000*6000mm
Advantages of The Automatic Filling Machine
(1) Efficient and Labor-saving
The speed of down filling machine is 2-4 times faster than that of manual method and30% faster than the 2nd generation of 818B machine;
Automatic down changing is realized which can save labor;
Down-filling is no longer needed skilled workers;
(2) Quantitative Precision
Non-contact weighing method is used, and the highest precision of single down filling can reach 0.01g;
According to given target gram weight, the actual down gram weight will be automatically increased or reduced as necessary during filling;
(3) Healthy and Environment-friendly
The overall working and production environment of down filling room has been greatly improved;
(4) Intelligent Management and Control
Filling data can be synchronously transferred to computer. Statements and such filling information as output can be directly inquired. And remote management can also be realized;
After Service:
1. Engineers are available to servie machinery overseas.
2. If the machine has a hardware failure, our engineer will provide technical support on the phone. If the problem cannot be solved,our engineer will come to repair in person.
3. Software is no problem, can be changed by mitake. You can change the paraments according to the directions. or with our engineer check the paraments on phone.
If you have any questions, please fill free to contact me :)
Our Factory
Packing and Transport

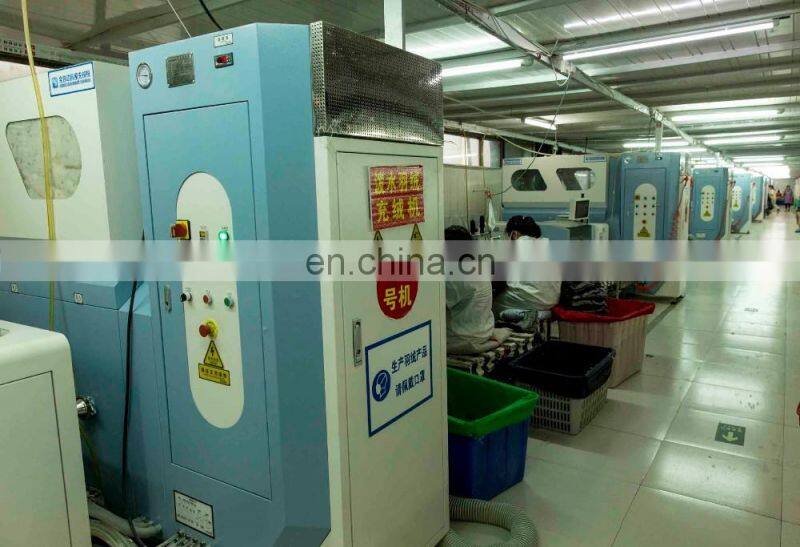

Machine in customer factory
Customer visiting on Cisma
