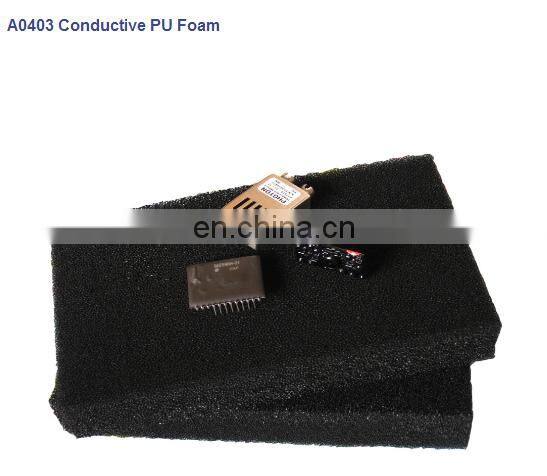

Help CenterA0403 Antistatic ESD Black Conductive PU Foam ( Conductive Foam, Packaged Foam,PU/PE/EVA Foam)
Related Products
-
Antistatic ESD PE Foam ( Conductive Foam, Packaged Foam,PU/PE/EVA Foam)US$ 5.5 - 10.5MOQ: 100 Pieces -
Eva Foam Roll 5mm Eva Foam Maker Eva Foam Floor MatUS$ 5.5 - 10.5MOQ: 100 Pieces
-
Black EVA Conductive FoamNegotiableMOQ: 5000 Pieces
-
High Quality Conductive EVA Packing Foam InsertsNegotiableMOQ: 1000 Pieces
-
Black Conductive ESD BagNegotiableMOQ: 2000 Pieces
Specifications
Black Conductive PU Foam.
1.) Conductive
2.) ESD safe
3.) custom size are available
4.) packing foam
Black Conductive PU Foam
|
Conductive property good for grounding IC leads against ESD damage |
Suitable for semiconductors storing and shipping |
Non-corrosive and good cushioning effect |
Available in high density, semi-hard and low density foam |
Surface resistivity <106 ohms/sq |
Specification For Black Conductive PU Foams
Typical and Data Test Method
Density |
3.1 lbs |
ASTM D3575-84 |
Surface Resistivity |
L104 |
ASTM D991-85 |
Volume Resistivity |
1.1 x 103 |
ASTM D991-85 |
H.C.F.C. |
Chemically Insert |
Fed STD 101 °C Method 3005 |
Static Decay |
.01 Sec. |
ASTM D991-85 |
Tribo Charge |
Pass |
Modified Incline Plane (Bellcore) |
Non-Corrosive
Chlorides |
0.21% |
Sulfates |
0.01% |
Conductive Corss-linked Polyethylene Nominal Specifications ELECTRICAL PROPERTIES
Typical #118alue
PROPERTY |
TEST METHOD |
UNIT OF MEASURE |
LCX-200 |
|
Volume Resistivity |
ASTM-991(1) |
OHM-CM |
<10 4 |
|
Static Decay Rate |
Fed. Std. 101 Method 4046 (2) |
Seconds |
<.01 |
|
Static Decay Rate |
'(3) ASTM-D257 |
OHMS / Square |
<5 x 10 5 |
|
Surface Resistance |
'(4) NFPA-56A |
OHMS |
Solid Sheet |
< 2 x 10 5 |
Shunt Resistance |
'(5) |
OHMS |
< 16K
|
|
